4K HDMI Switch 4 in 1 out Audio Extractor ARC IR Remote-BUNGPUNG

4K HDMI Switch 4 in 1 out Audio Extractor ARC IR Remote-BUNGPUNG

Regular price $101.71 USD
Regular price $93.16 USD Sale price $101.71 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.


50 in stock

4K HDMI Switch 4 in 1 out Audio Extractor ARC IR Remote-BUNGPUNG

4K HDMI Switch 4 in 1 out Audio Extractor PRODUCT DETAILS

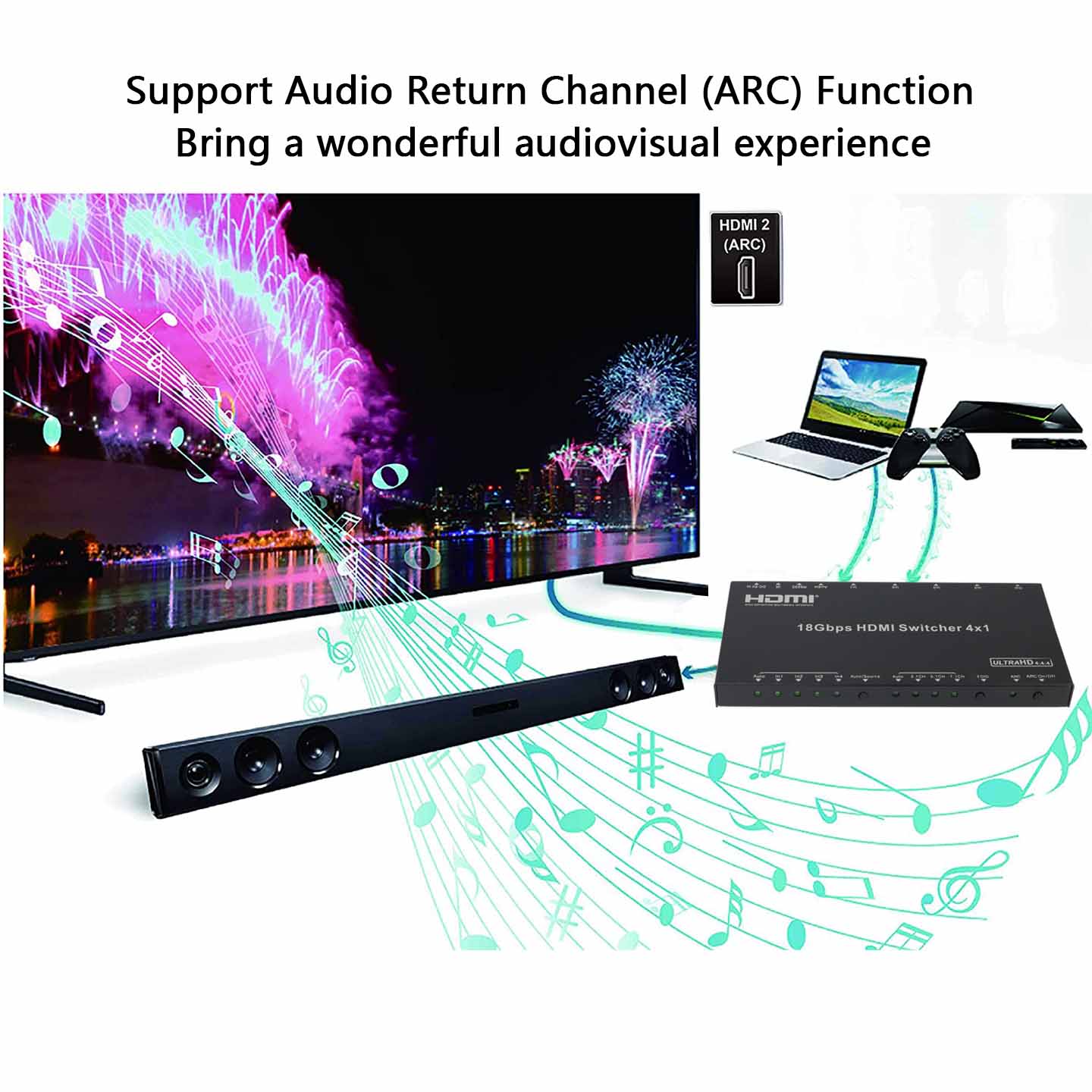

the BUNGPUNG 4k HDMI switch 4 in 1 out is compact, high quality and reliable solutions for connecting 4 HDMI source devices to a single HDMI display and switching between them. It supports video resolution up to 4K@60Hz, compatible with HDMI 2.0 HDCP 2.2 HDR.  it can Extracts HDMI audio to digital and analog output. with ARC function it can transmit digital audio from ARC TV to SPDIF output.

additional support for HDR ensures video content features greater contrasts and a much wider color gamut. This switch is perfect for a premium residential setup, eye-catching digital signage in retail settings or engaging presentations in school teaching. HDCP 2.2 support ensures there are no compatibility issues with a variety of 4K content from source devices including set top boxes, Blu-Ray players and 4K HDR media players.

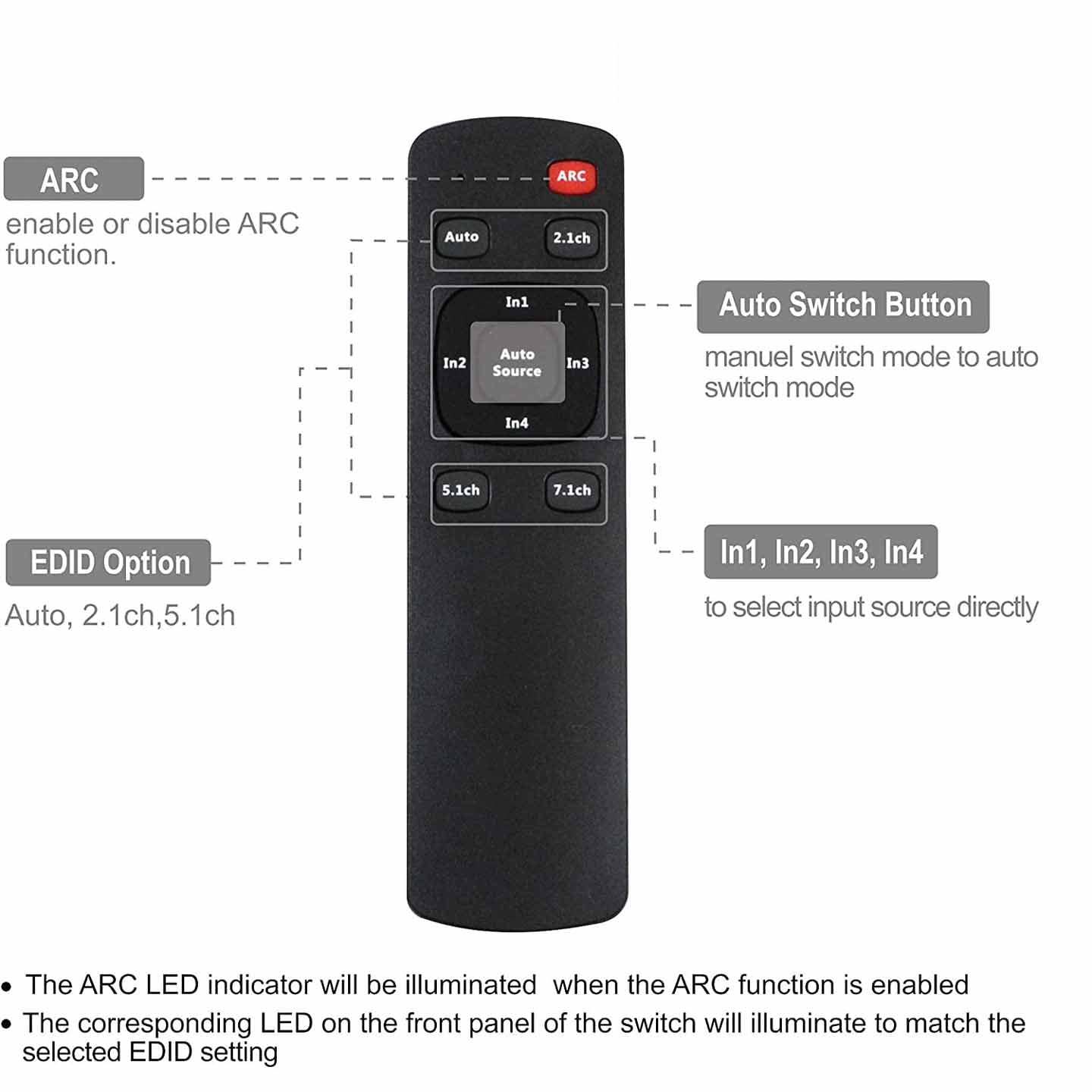

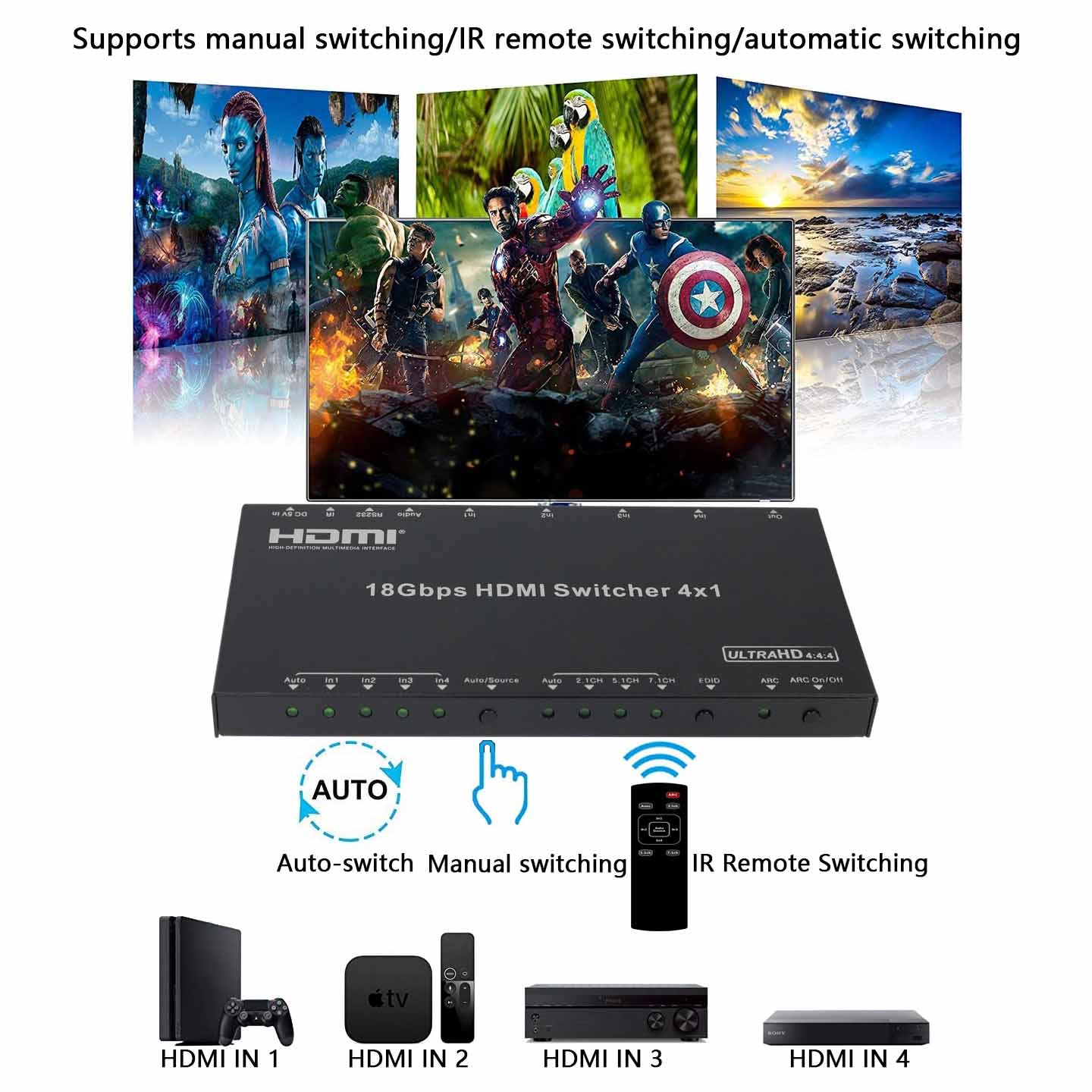

This HDMI switch provides efficient, simple switching options for the user, via an included IR remote and push buttons on the main unit. The switch can also identify the active HDMI source device and automatically switch to this option, providing a useful solution for when the unit is required to be out of sight.


  • 4K@60Hz HDMI Switch 4 in 1 out: it switches between 4 HDMI source devices when connected to a single display, you can choose the HDMI signal source by the IR remote control and panel button, easy to access. it can Extracts HDMI audio to digital and analog output. with ARC function it can transmit digital audio from ARC TV to SPDIF outout.
  • 18 Gbps HDMI 2.0 HDCP 2.2 HDR CEC ARC compliant.
  • Full compatible: This HDMI switch is compatible with gaming consoles such as PlayStation, Xbox one, Nintendo, Roku, DVD, blue ray, players fire TV, cable TV, Chromecast and other HDMI devices.
  • Compact size for easy plug & play installation. Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation
  • 1-year warranty for product defects.

Download User Manual




HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.2/1.x

Video Bandwidth


Video Resolution

Up to 4k2k@60Hz

Color Depth

8-bit (4K60Hz)

Color Space

RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4

HDMI Audio Formats

PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio

L/R Audio Formats

Analog Stereo 2CH

Optical Audio Formats

LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1

ESD Protection

Human body model—±8kV (Air-gap discharge) &

±4kV (Contact discharge)

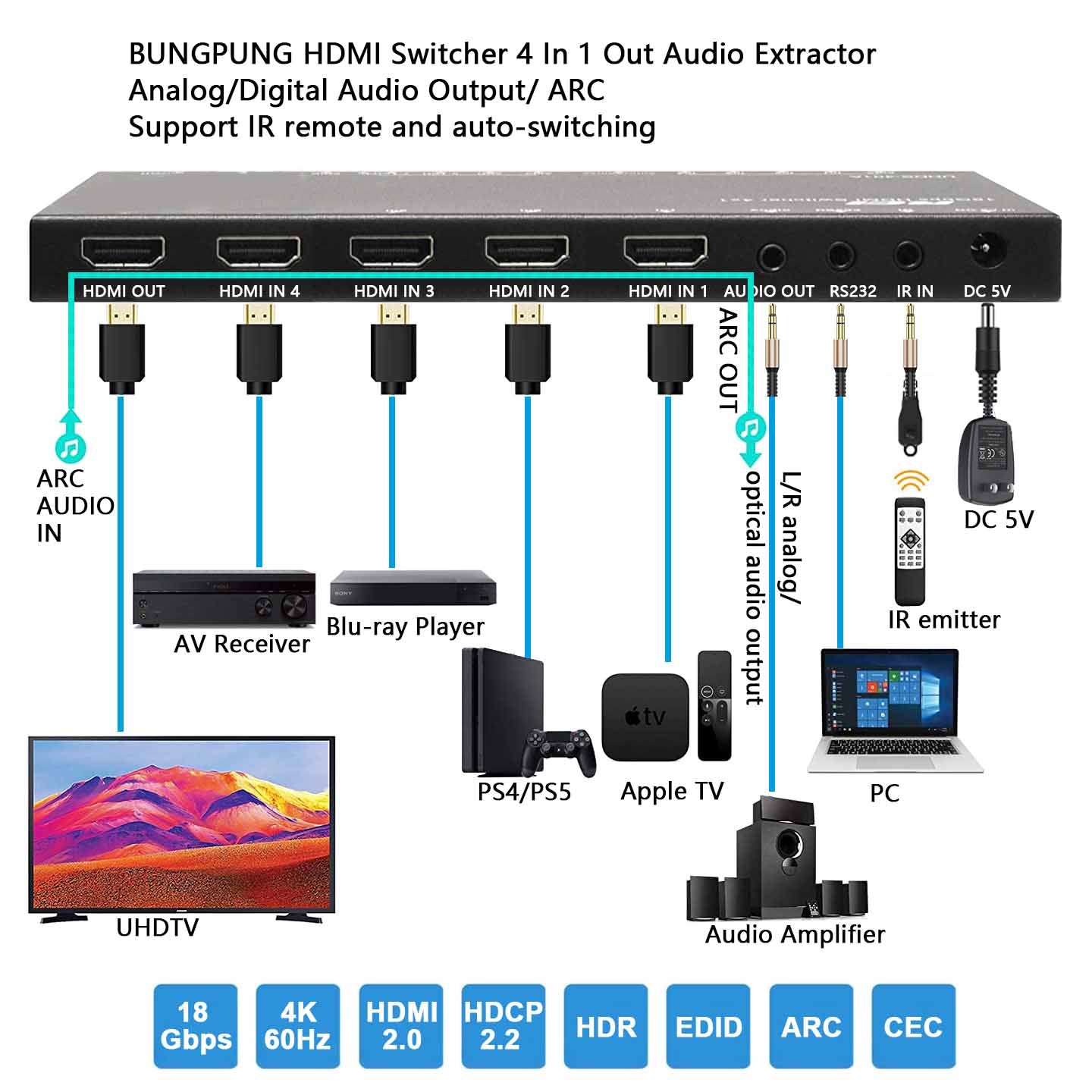

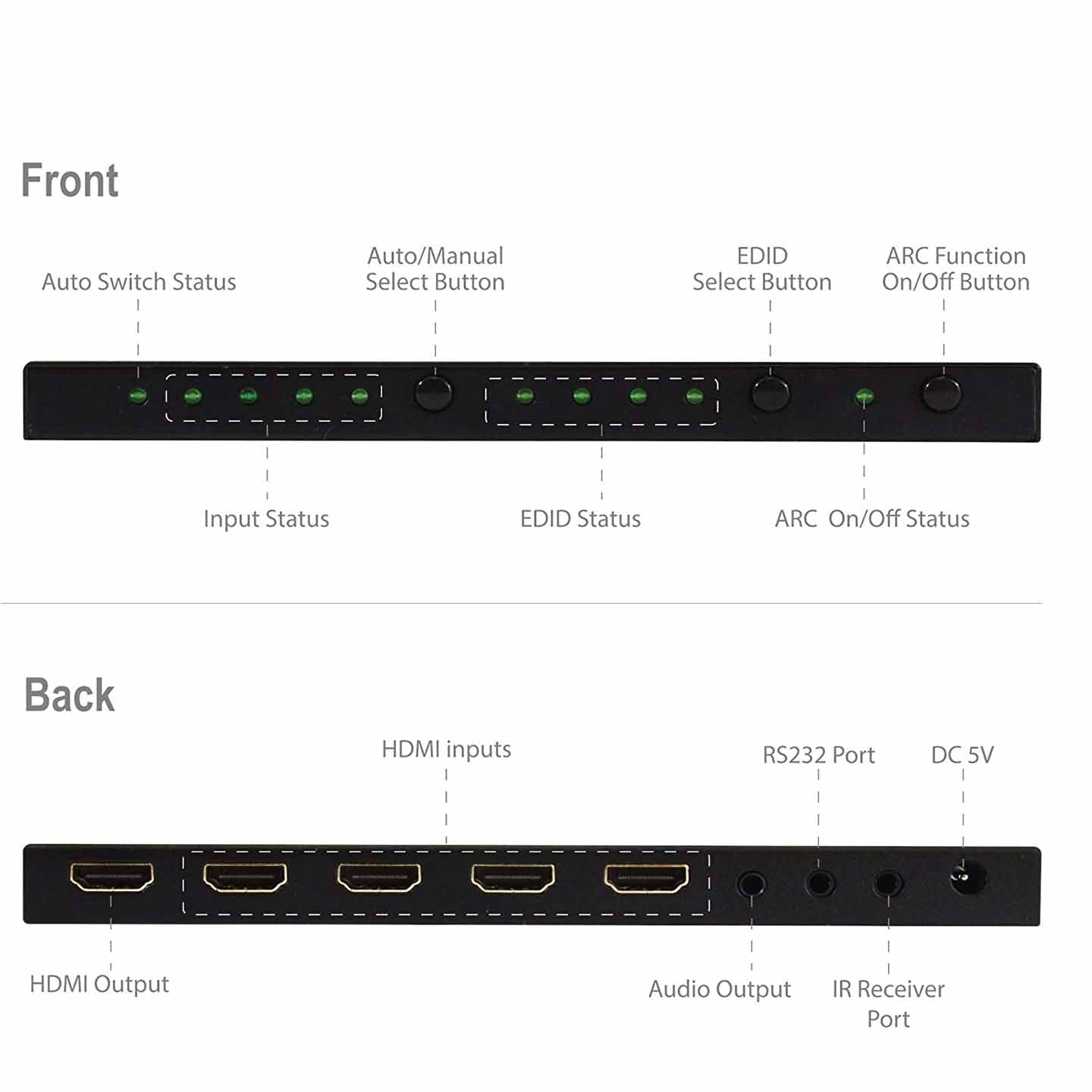

Input Ports

4×HDMI Type A (19-pin female) 1×IR IN [3.5mm Stereo Mini-jack] 1 IR Receive port and 1 RS232 port

Output Ports

1×HDMI Type A (19-pin female)1x3.5mm L/R  Audio output& 1xOptical SPDIF Audio output




Plastic Enclosure

Silkscreen Color

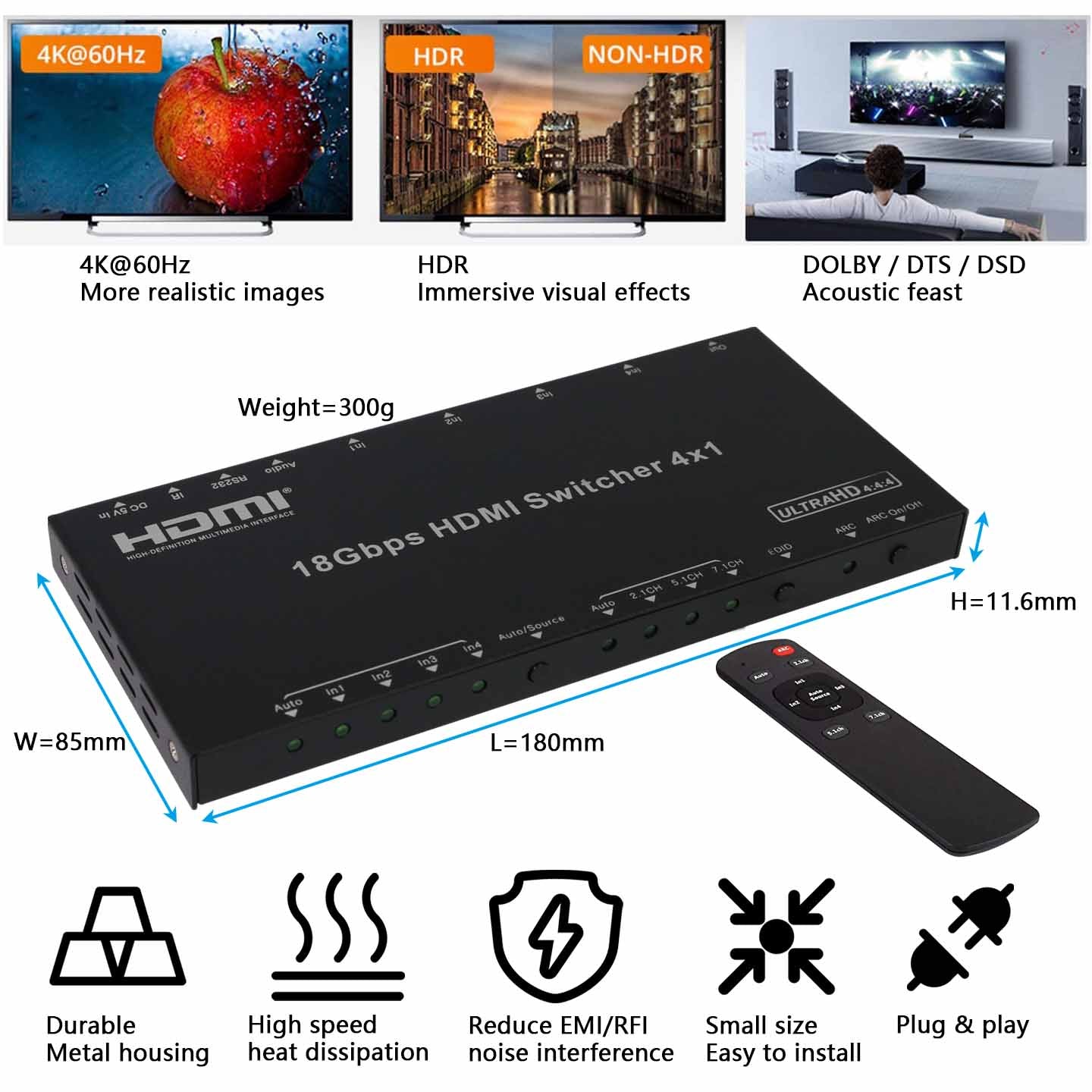

180 (D) x 85 (W) x 11.6 (H)



Power Supply

Input: AC100~240V 50/60Hz

Output: DC5V/1A (US/EU standards,CE/FCC/UL certified)

Power Consumption


Operation Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)

Package Contents

1 x HDMI 4x1 Switcher,

1 x 5V/1A Power Adapter,

1 x 38KHz IR Rx cable,

1 x Optical convert header (for SPDIF audio output),

1 x HDMI 4x1 IR Remote,

1 x Operation Manual
