BUNGPUNG

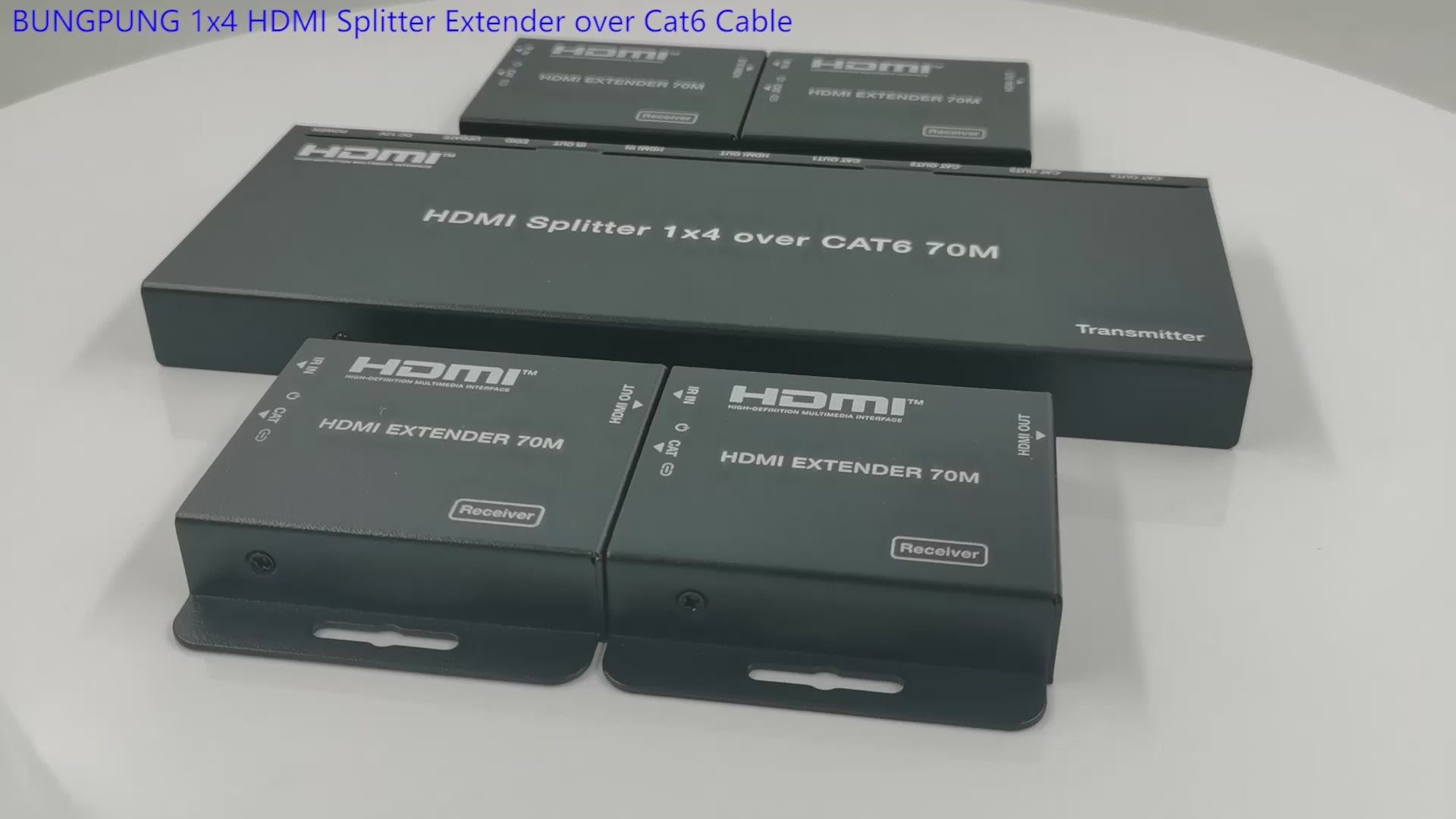

1x4 HDMI Splitter Extender over Cat6/7 Cable 70m 1080P 60Hz-BUNGPUNG

1x4 HDMI Splitter Extender over Cat6/7 Cable 70m 1080P 60Hz-BUNGPUNG

Regular price $255.56 USD
Regular price $41.88 USD Sale price $255.56 USD
Sale Sold out
Shipping calculated at checkout.

SKU:HDC-SP914C70

50 in stock

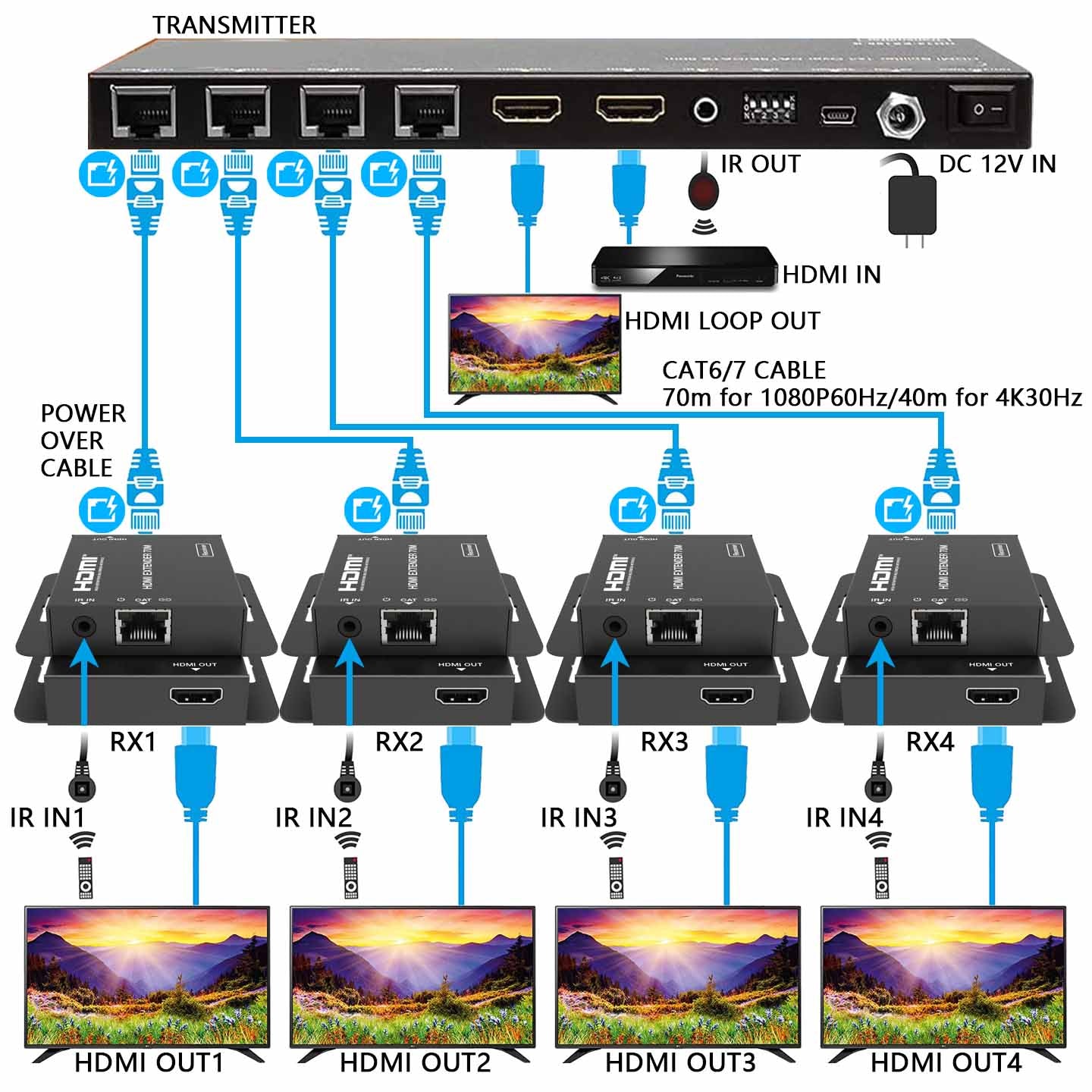

1x4 HDMI Splitter Extender over Cat6/7 Cable 70m 1080P 60Hz connection-BUNGPUNG

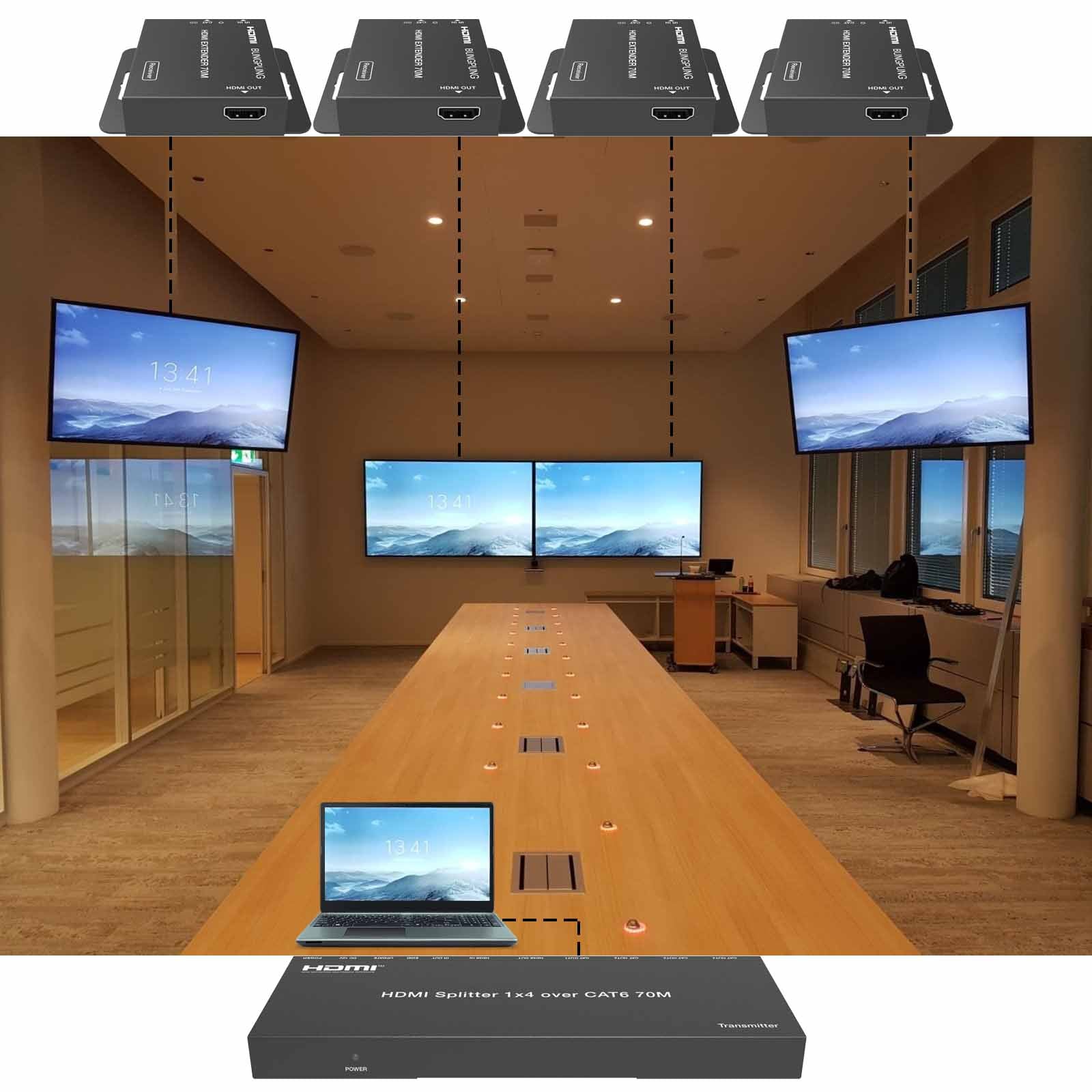

1x4 HDMI Splitter Extender over Cat6/7 Cable 70m 1080P 60Hz application-BUNGPUNG

1x4 HDMI Splitter Extender over Cat6/7 Cable 70m 1080P 60Hz PRODUCT DETAILS

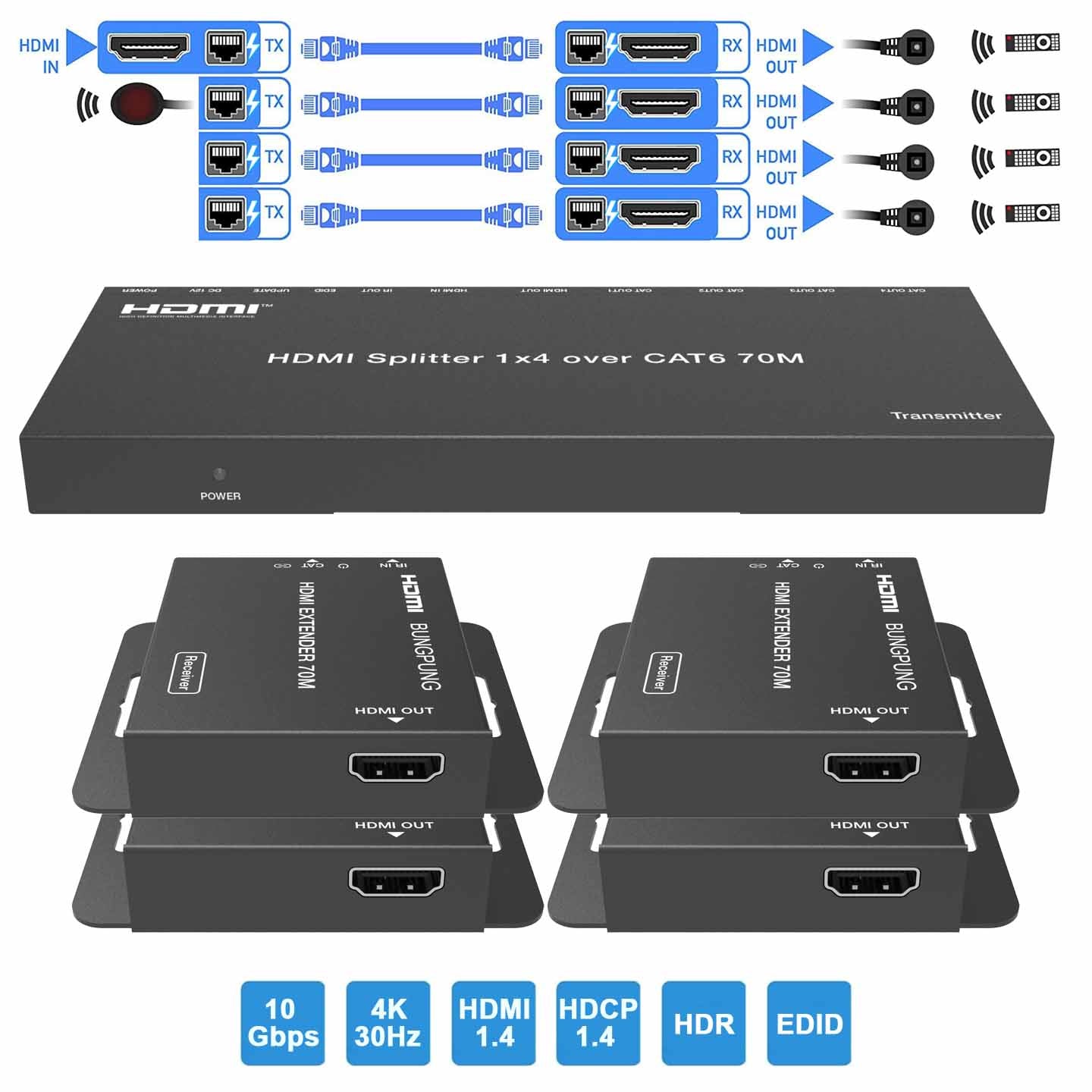

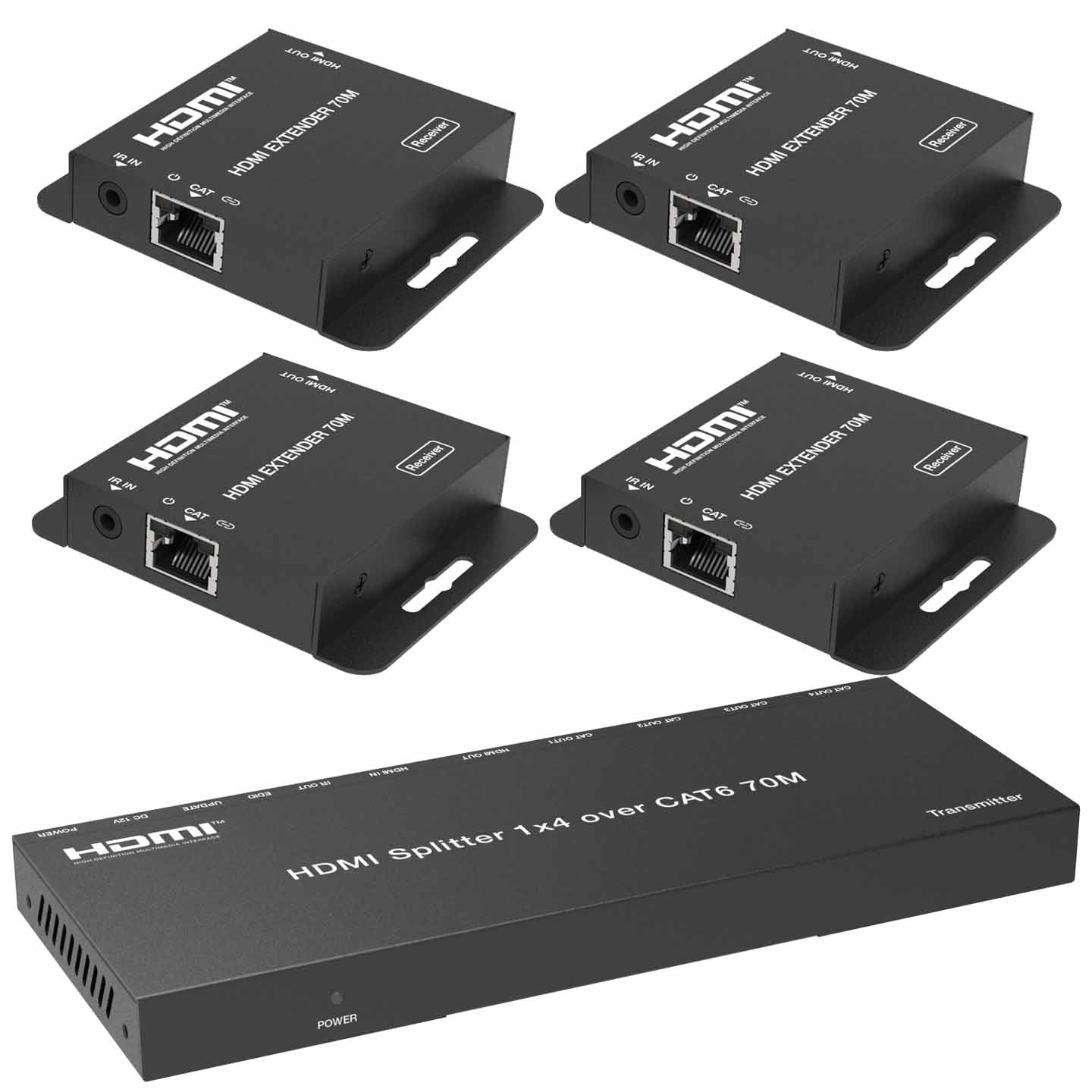

The BUNGPUNG 1x4 HDMI Splitter extender is a high quality solution for distributing 1 HDMI signal to 4 HDMI signals and transmit them to 4 remote HDMI displays. it includes 1 transmitter and 4 receivers. it can extend the transmission distance of 4 HDMI signals up to 230ft/70m for 1080p60hz resolution, or 131ft/40m for 4K30hz resolution via CAT6 cables. it supports one-way IR control signal pass-through, which allows control the HDMI source device from the remote HDMI display side. it also Support 12V one-way POC function, its 4 receivers can be powered by the transmitter via Cat6/7 cable. a smart EDID management switch on the unit provides maximum compatibility with multiple different displays. it can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver.  This product can be widely used in multimedia conference halls, TV teaching and large-screen displays.


HDCP 1.4 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider color gamut, for more lifelike color.

this HDMI splitter extender provides an excellent HDMI distributing and transmitting experience, ideal for multi-screen duplicate display situations such as informational broadcasting in school teaching, airports, train stations or stock exchange offices. The device durable, compact design also ensures the unit can be easy and flexible installed.

Features

  • 1x4 HDMI splitter extender: Distribute 1 HDMI source to 4 remote HDMI displays over cat6 network cable simultaneously, 1 in 4 out splitter extender with power over cable feature - no adapter needed to power the receivers.
  • 4k30hz 10Gbps HDMI 1.4 HDCP 1.4 compliant. transmission distance up to 40m/131ft for 4K30Hz or 70m/230ft for 1080P@60Hz. it is capable for receiving, retiming and transmitting up to 10Gbps of bandwidth with no data loss.
  • IR kit (20~60KHz) to receive the IR remote control commands from the receiver side and transmit back to the transmitter side to control to the HDMI source remotely.
  • Compact size for easy plug & play installation. Heavy-duty cool metal enclosure keeps the unit cool by aiding in quick heat absorption and dissipation.
  • 1-year warranty for product defects.

FAQs

  1. Can I extend multiple screens with this product? No, this product can not extend multiple screens. It can duplicate/mirror the HDMI sources to multiple remote displays.
  2. Can the splitter show multiple different images on the different displays? No. Our HDMI splitter will duplicate or mirror a single HDMI source on multiple remote HDMI displays. all of the displays will show the same video and audio simultaneously.
  3. Does the product support connecting multiple monitors that support different resolutions? Yes. Please set the EDID DIP switch to the best resolution that all monitors can support.
  4. Can I extend beyond the mentioned transmission distance? Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
  5. Can I use the output of this product to another extender similar to daisy chain method? Yes, you can implement the daisy chain method.
  6. What types of HDMI & CAT cables should I use with this product? We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
  7. How far does this product can extend between HDMI source and display? it can extend the transmission distance up to 70m/230ft for 1080P60Hz or 40m/131ft for 4k30Hz when using with a CAT6 cable.
  8. Does this unit work with cat5e cable? if you can not get signal on display, The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
  9. How to know if the extender is broken? If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be broken.
  10. Does this product support IR frequency or FR frequency? Our all the extenders support IR Frequency, the devices using RF frequency will not be compatible with our products.
  11. Does the receiver unit need to be connected to a power adapter? unnecessary. This product supports power over cable. The receiver unit is powered by the transmitter unit via the CAT cable.

Download User Manual

Specifications



Technical
HDMI Compliance HDMI 1.4
HDCP Compliance HDCP 1.4
Video Bandwidth 297MHz/10.2Gbps
Video Resolution 480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4)
Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K30Hz)
Color Space RGB, YCbCr_4:4:4/4:2:2. YUV_4:2:0
Audio Formats LPCM 7.1CH, Dolby True HD and DTS-HD Master Audio
ESD Protection Human body model—
±8kV (Air-gap discharge) &±4kV (Contact discharge)
Connection

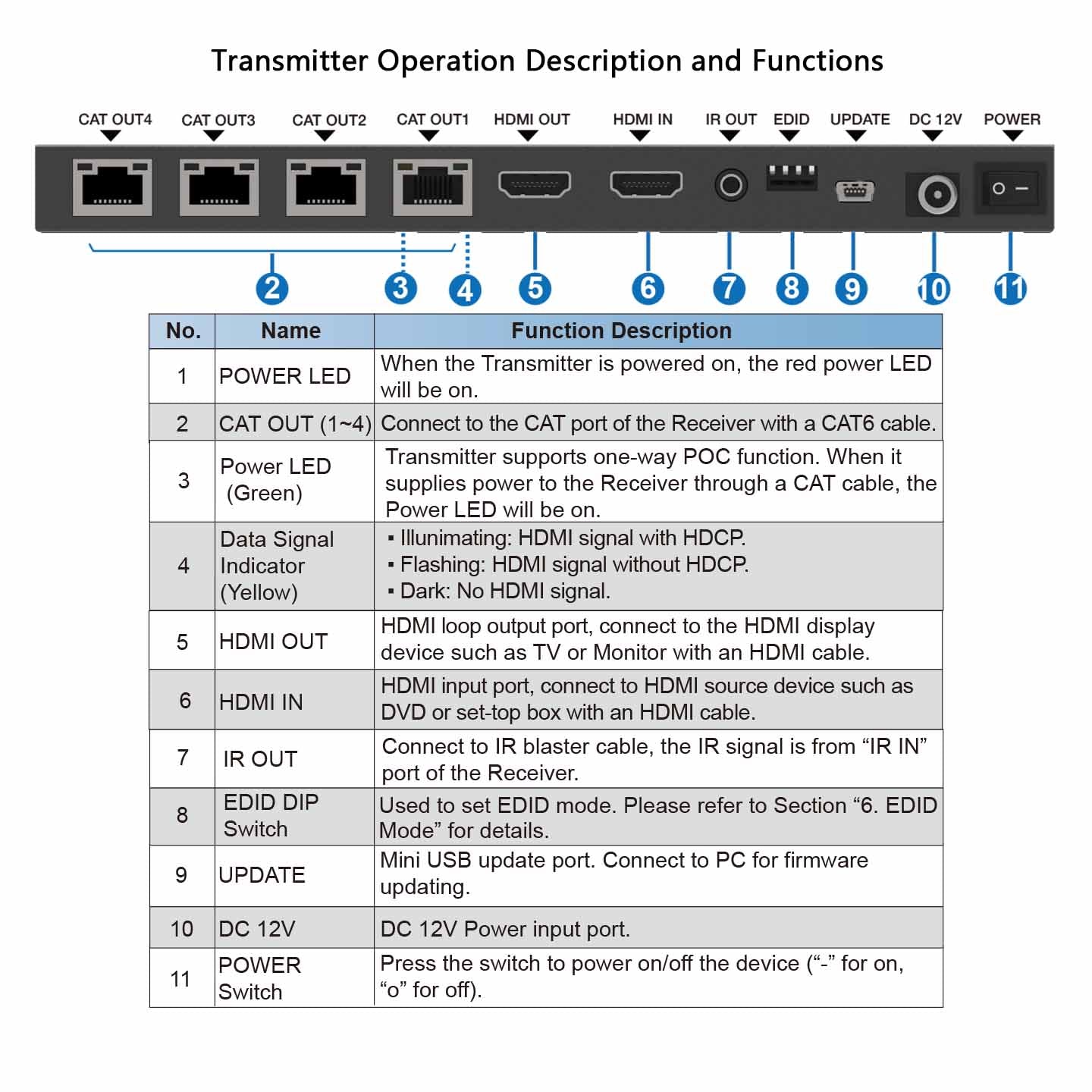

Transmitter Input: 1 × HDMI IN [Type A, 19-pin female]
Outputs: 1 × HDMI OUT [Type A, 19-pin female]
4 x CAT OUT [RJ45]
Controls: 1 × IR OUT [3.5mm Stereo Mini-jack]
1 x EDID DIP switch [4-pin]
1 x UPDATE [Micro USB]

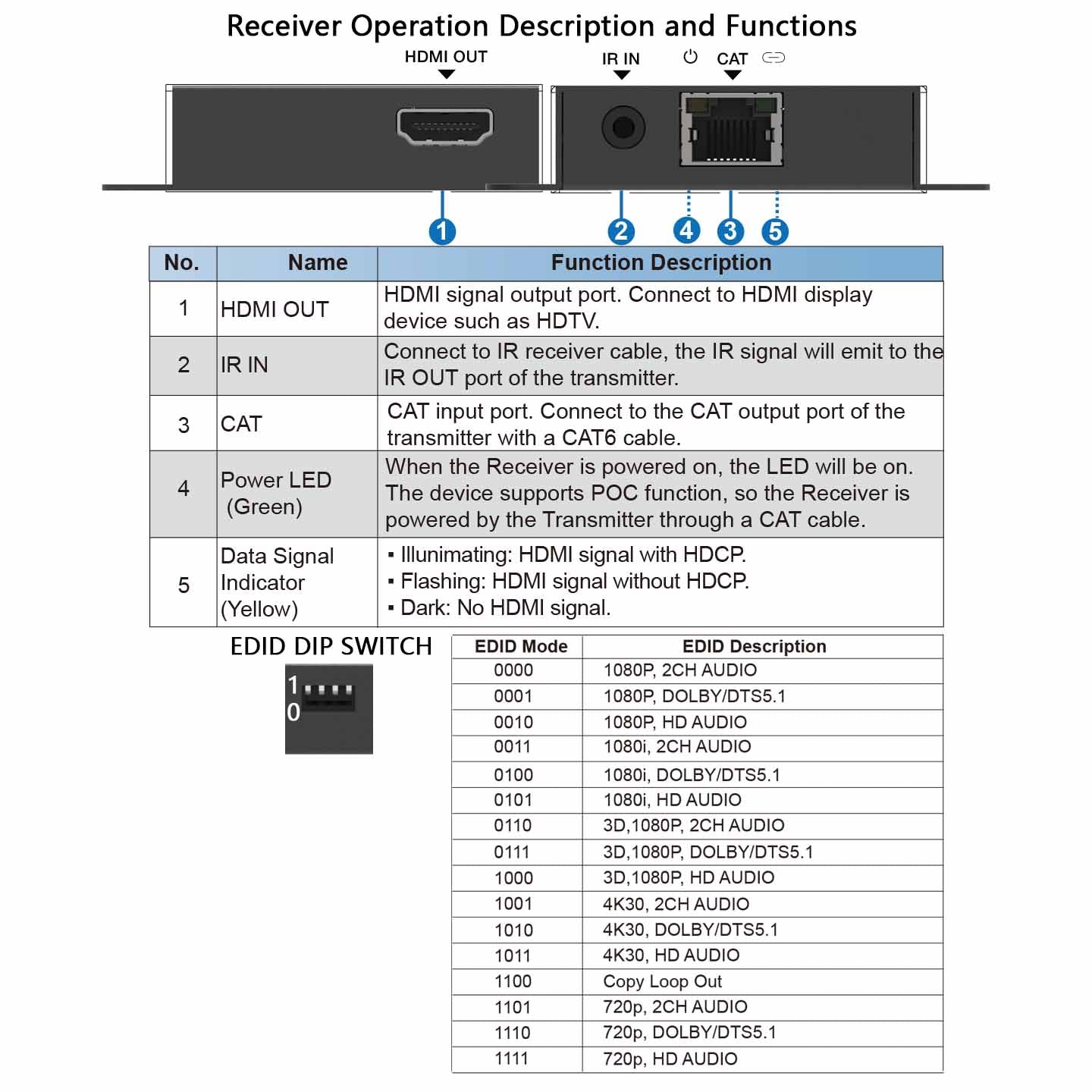

Receiver Inputs:    1 x IR IN [3.5mm Stereo Mini-jack]
 1 x CAT IN [RJ45, 8-pin female]
Output:   1 x HDMI OUT [Type A, 19-pin female]
Mechanical
Housing Metal Enclosure
Color Black

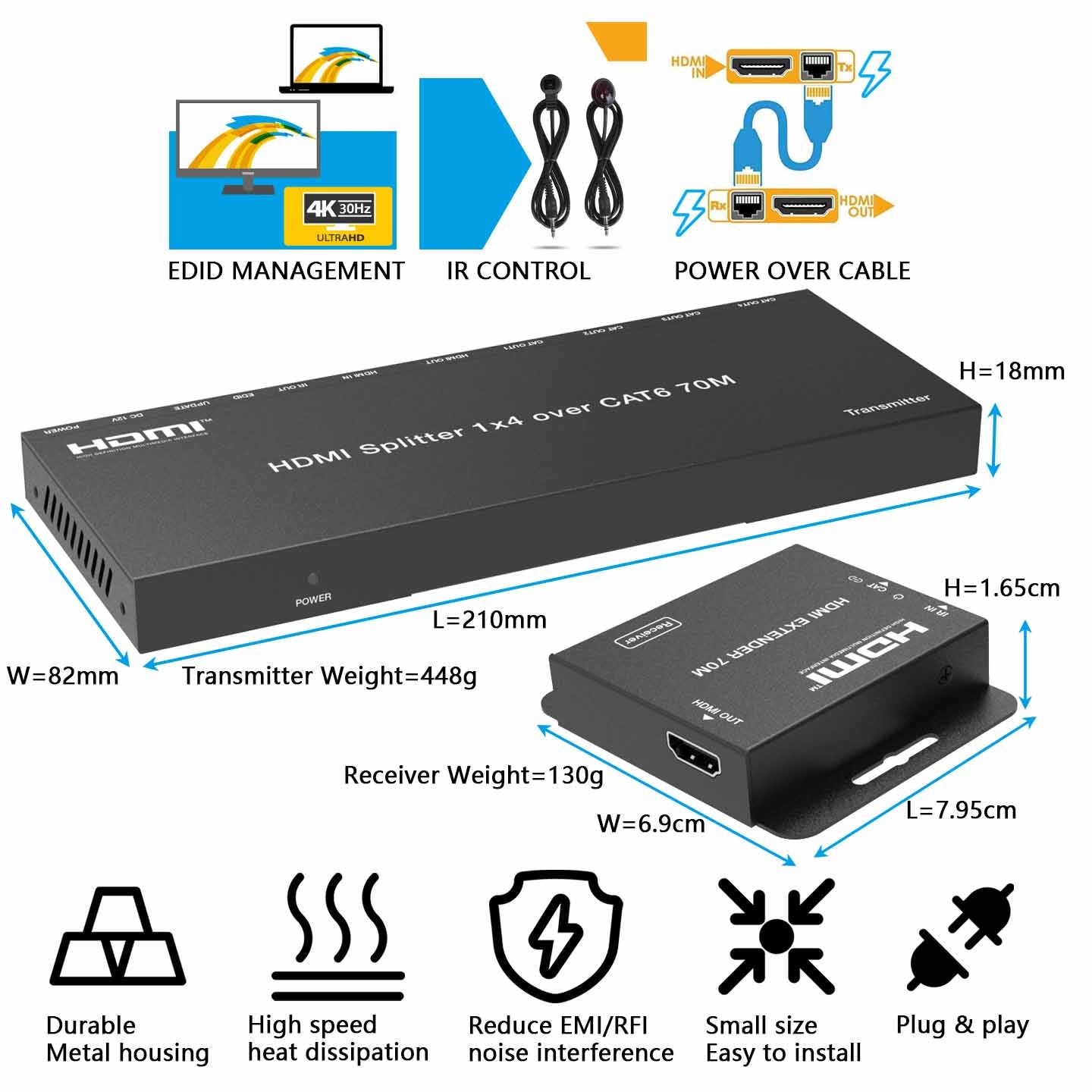

Dimensions Transmitter: 210mm (W) × 83mm (D) × 18mm (H)
Receiver: 79.5mm (W) × 69mm (D) × 16.5mm (H)
Weight Transmitter: 448g; Receiver: 130g
Power Supply 12V/2.5A DC Locking Power
(US/EU standards, CE/FCC/RoHs certificated)
Power Consumption 11W
Operation Temp. 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Package Contents ① 1 × HDMI 1×2 Splitter
② 4 × CAT Receiver
③ 1 × IR Blaster Cable (1.5 meters)
④ 4 × IR Receiver Cable (1.5 meters)
⑤ 2 × Mounting Ear
⑥ 1 × 12V/2.5A DC Locking Power Adapter
⑦ 8 × Machine Screw (KM3*4)
⑧ 1 × User Manual
