4K HDBaseT HDMI Extender over CAT6 PRODUCT DETAILS

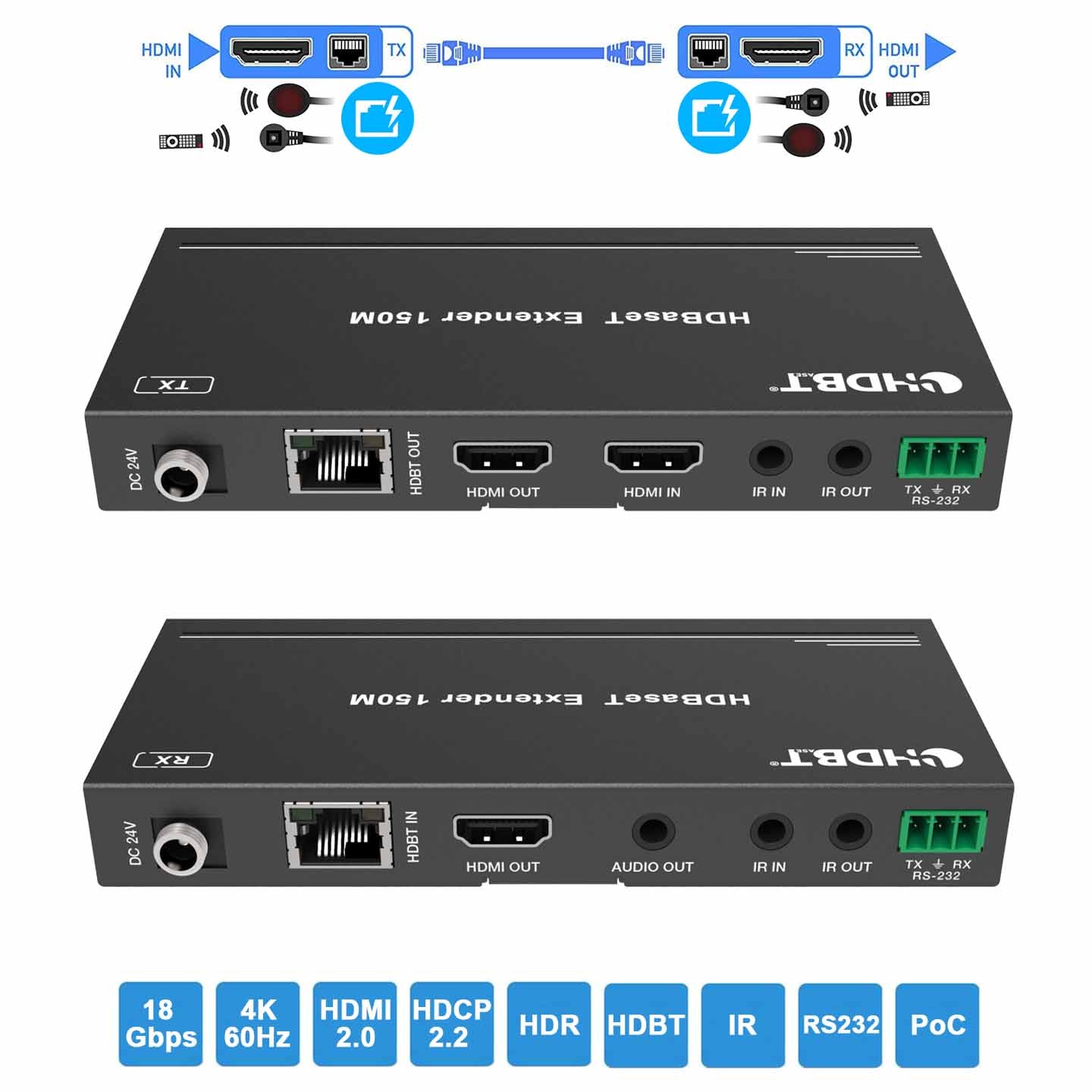

This BUNGPUNG 4K 60Hz HDBaseT HDMI Extender over CAT6 can extend the transmission distance of HDMI video/audio and bi-directional IR/RS-232 signal, up to 394ft/120 meters between transmitter and receiver via a single CAT5e/6 cable. (Using CAT6a/7 cable the transmissoin distance up to 492ft/150M). It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for local output. It also supports 3.5 mm L/R audio output and PoC function. In addition, the extender is equipped with bi-directional IR pass-through which allows remote control between the HDMI source and display .

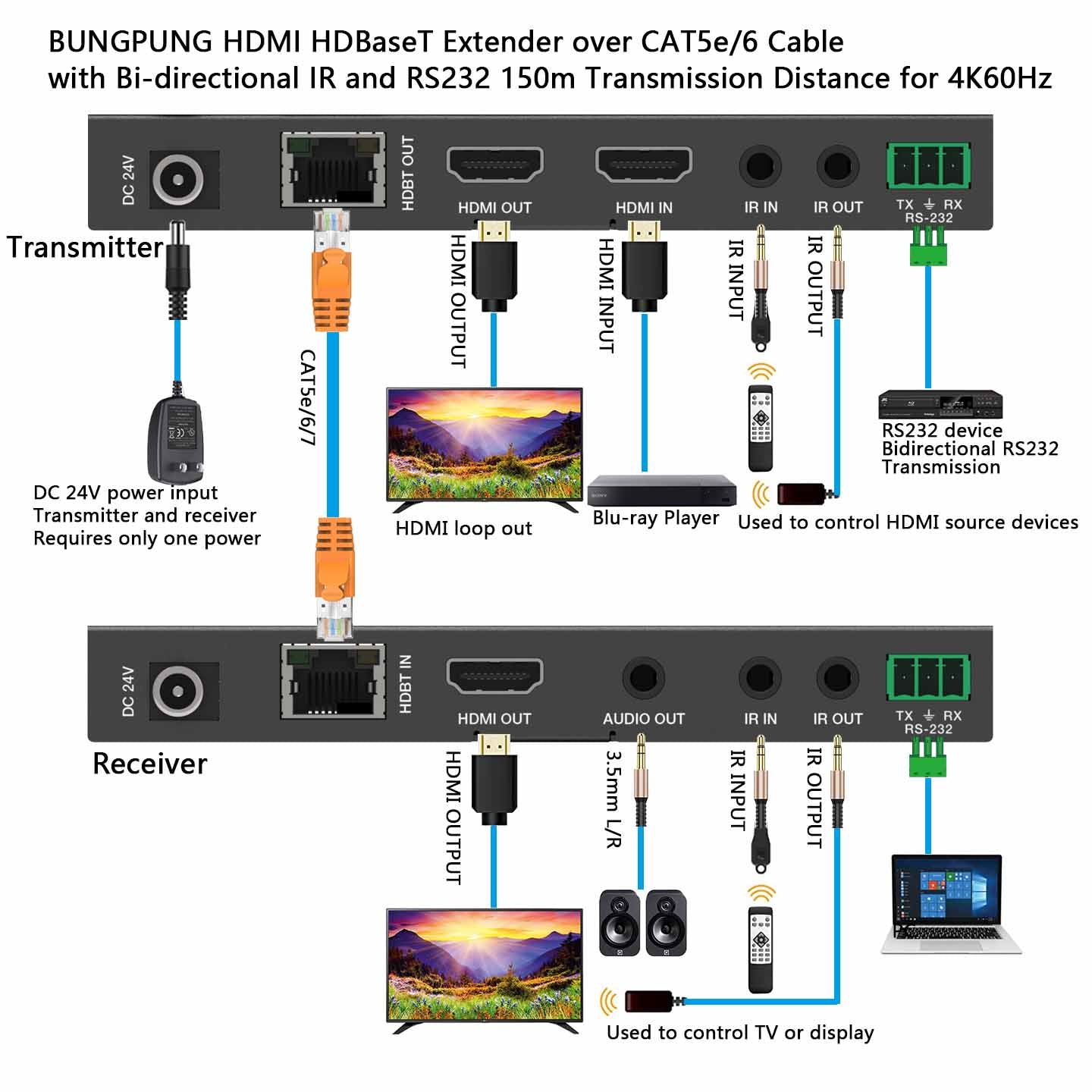

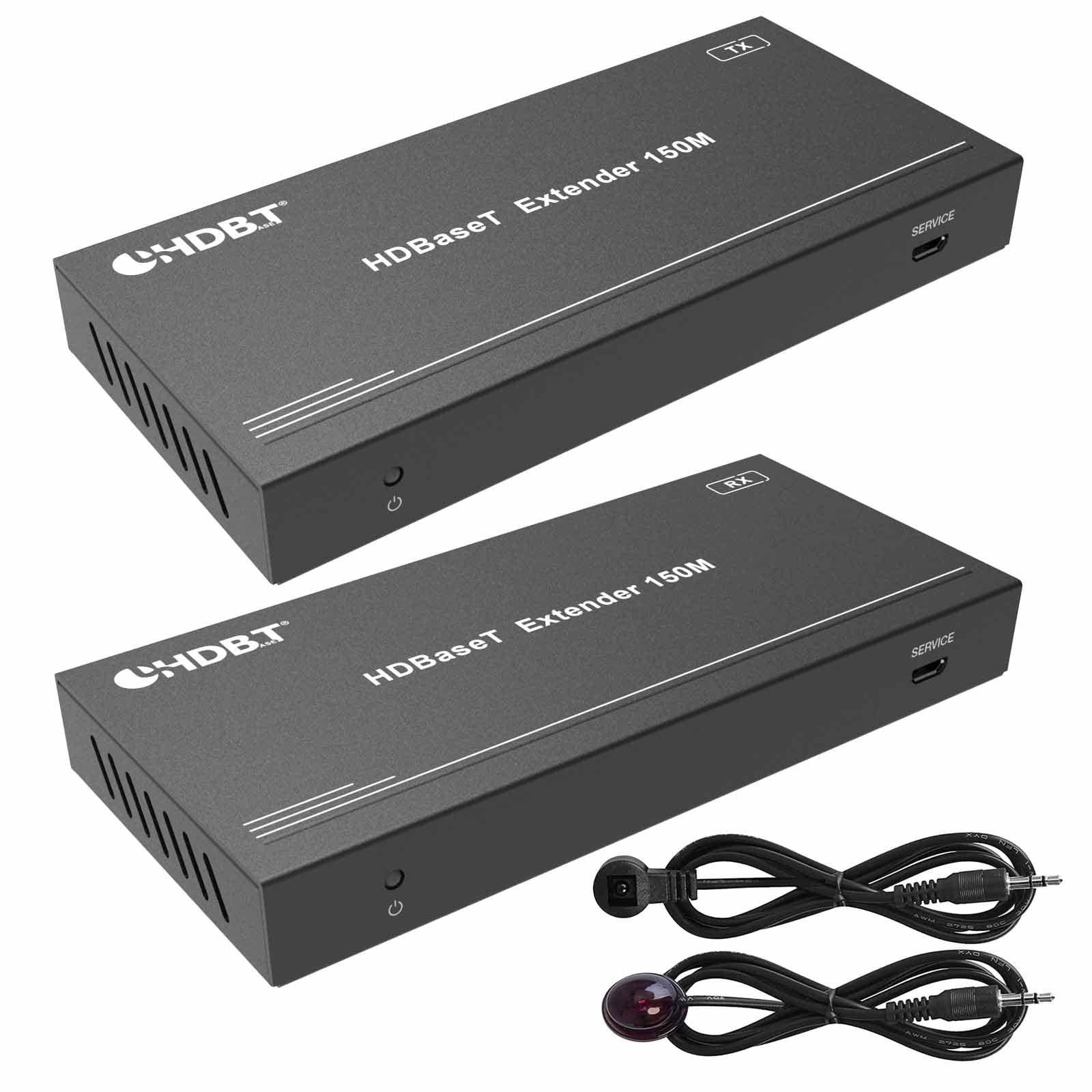

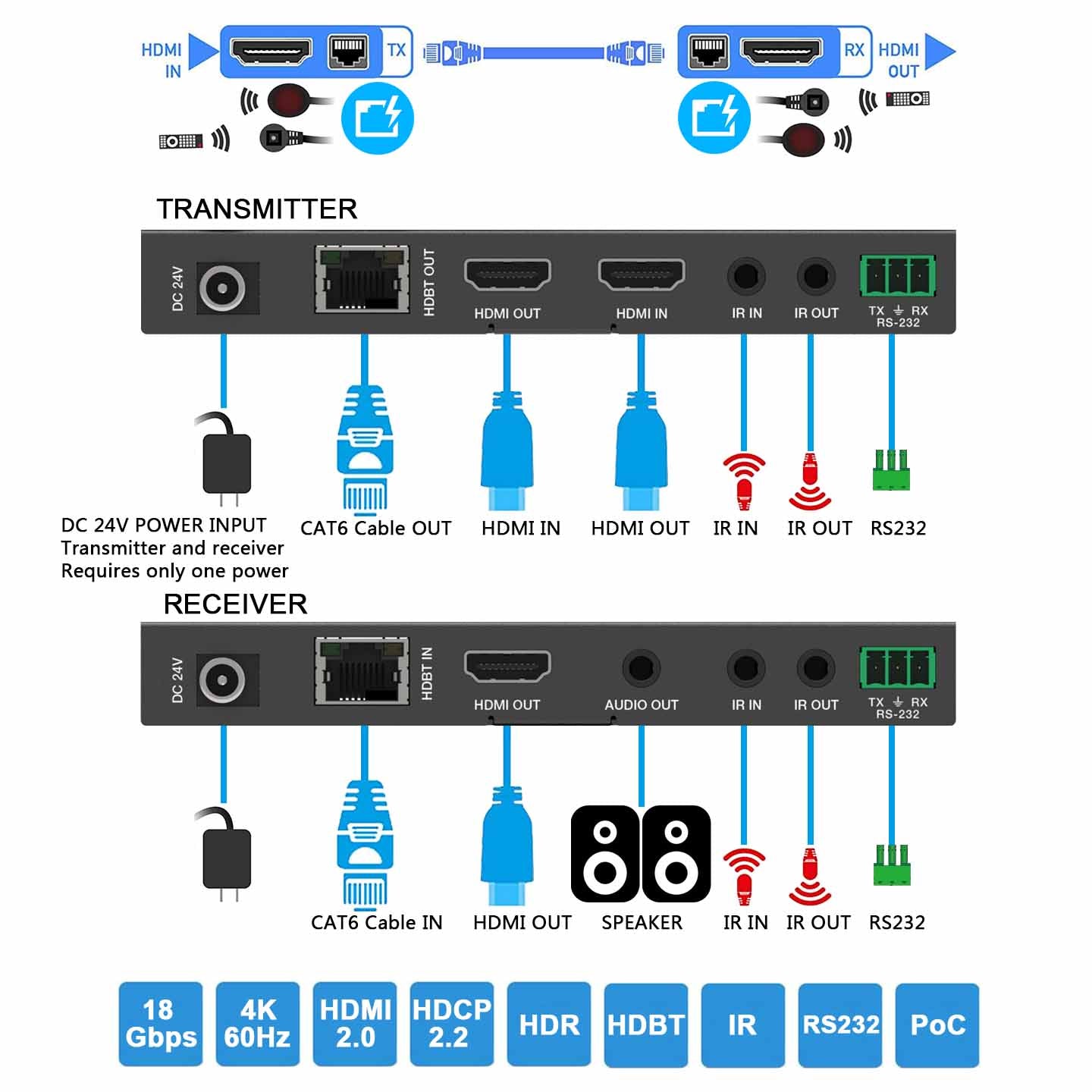

This HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carries the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting/emitting IR control signal.
The extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability, and is the perfect solution for any application.

Features

• 150m HDBaseT HDMI Extender - It can transmit 4K60Hz HDMI signal up to 150m/500Feet over CAT5e/6 LAN Cable. Recommended Shielded Cable for best signal quality. Perfect for home/office for PC, Game Consoles, Blu Ray Players/Media Players, Sky HD box, satellite box, Android box. 18Gbps bandwidth, HDMI 2.0, HDCP 2.2 HDR compliant.

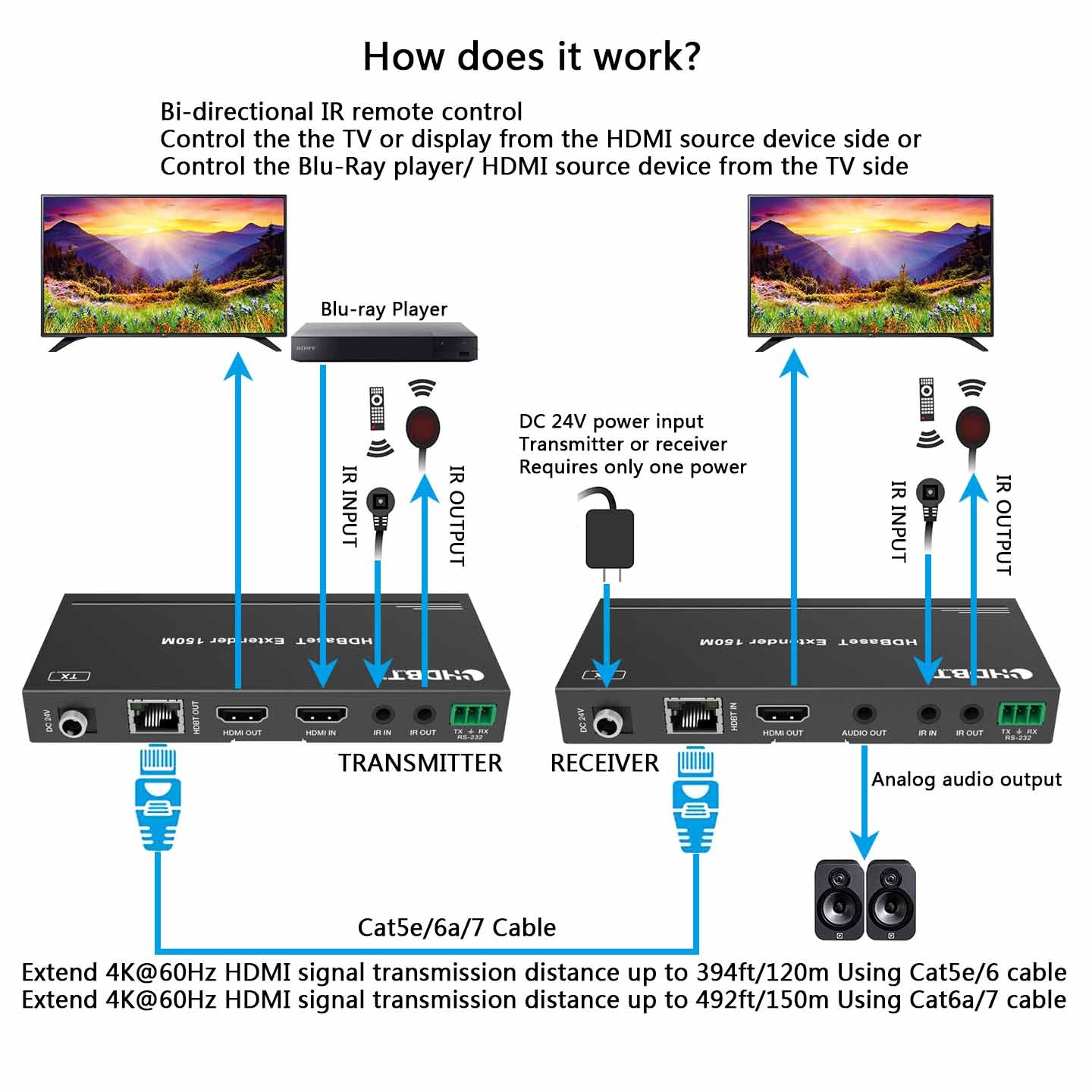

• Bi-directional IR/RS232 Transmission: it allows using IR remote Control the media player / HDMI source device from the TV side or control the TV from the HDMI source device side.Bi-directional RS232 Transmission can be used to control other device from PC.
• Power Over Cable Power Supply: Adopt POC technology, power over cable, only one power adapter is needed to connect to the TX or RX unit can support the entire device's operation, more simple and convenient.

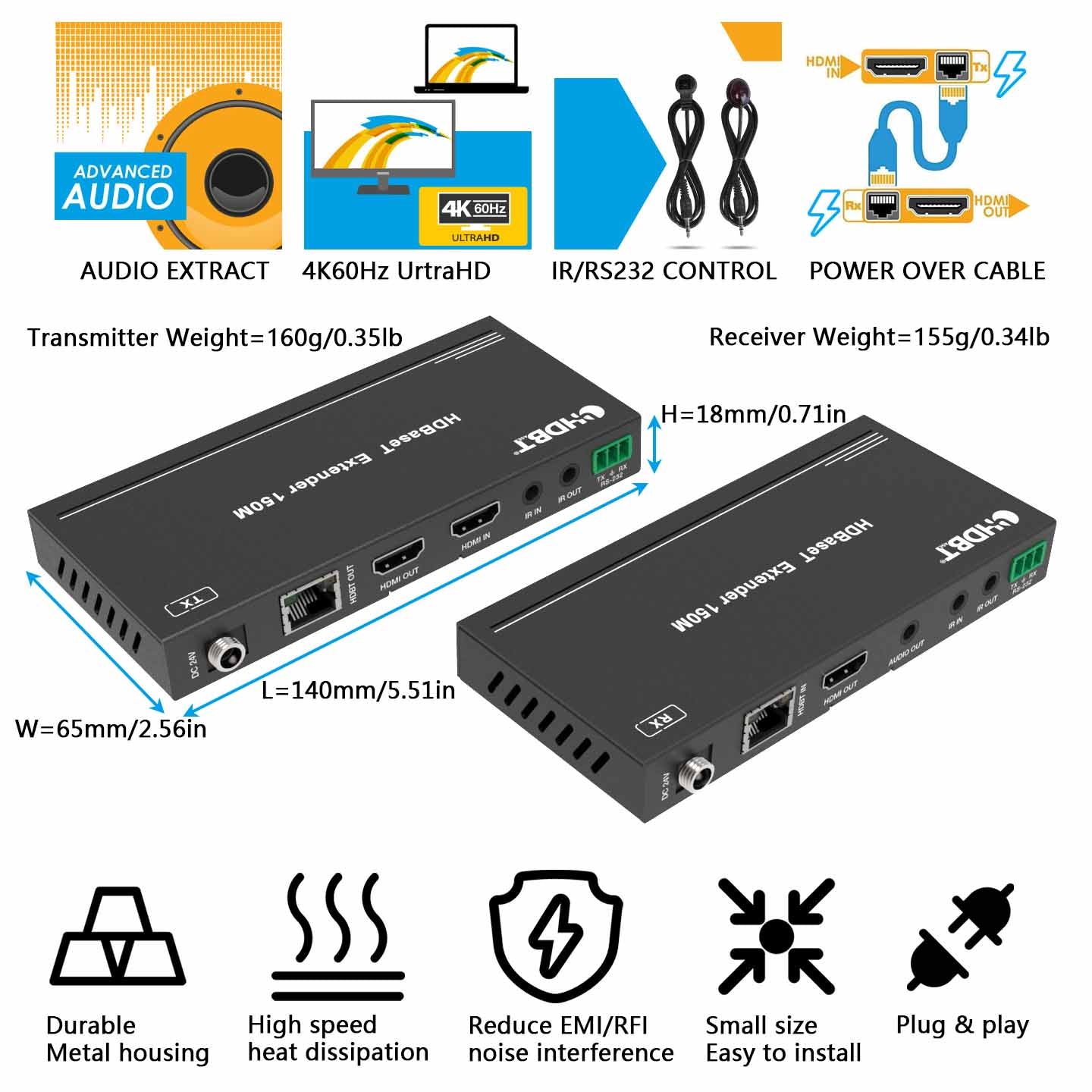

• plug and play installation: no driver required. surface mountable metal housing allows easy placement; sturdy metal body provides durability and minimizes EMI/RFI noise interference. FCC, CE & ROHS compliant
• 1 year warranty for product defects

FAQs

1. Can I extend beyond the mentioned distance? Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
2. Can I input the output of this product to another extender similar to daisy chain method? Yes, you can implement the daisy chain method. This extender can be cascaded to another extender.
3. What types of HDMI & CAT cables should I use with this product? We strongly recommend you to use Premium High Speed HDMI cables & shielded CAT6/6a/7 cables.
4. What is the maximum length of HDMI input and output cables? You can use Premium High Speed HDMI cables up to 3m for 4k@60hz, 10m for 4k@30hz/1080P60Hz.
5. How far does this product can extend between HDMI source and display? it can extend the transmission distance up to 150m/492ft for 4K@60Hz when using with a CAT6a/7 cable, 120m/394ft for 4K@60Hz when using with a CAT5e/6 cable.
6. Does this unit work with cat5e cable? if you can not get signal on display, The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6/6a/7 cable.
7. How to know if the extender is broken? If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be broken.
8. Does this product support IR frequency or FR frequency? Our all the extenders support IR Frequency from 20Hz to 60KHz.
9. What is the function of the PoC (power over cable) of this product? Power over cable is a technology that allows electrical power to be transmitted over standard data cables, typically Ethernet cables, along with data signals. it means that either transmitter or receiver is powered by one 12V/1A power adapter, the other one can be powered via the CAT cable.
10. What is the HDBaseT technology of this product? HDBaseT is a connectivity technology that enables the transmission of high-definition video, audio, Ethernet, power, and control signals over a single Cat5e/6/7 cable. HDBaseT technology is designed to overcome the limitations of traditional connectivity options such as HDMI, which have distance restrictions and require multiple cables for different signals. HDBaseT consolidates all the necessary signals into a single cable, simplifying installations and reducing cable clutter.

 Download User Manual
