4K HDMI eARC Audio Extractor Adapter HDMI Switch 4 in 1 out-BUNGPUNG

4K HDMI eARC Audio Extractor Adapter HDMI Switch 4 in 1 out-BUNGPUNG

Regular price $110.26 USD
Regular price $93.16 USD Sale price $110.26 USD
Sale Sold out
Shipping calculated at checkout.

SKU:HDC-SWB41AEU

48 in stock

4K HDMI Switch 4 in 1 out4K HDMI Switch 4 in 1 out eARC audio transmitter4K HDMI Switch 4 in 1 out HDMI eARC audio Converter Extractor

4K HDMI eARC Audio Extractor Adapter HDMI Switch 4 in 1 out PRODUCT DETAILS

the BUNGPUNG 4K HDMI eARC Audio Extractor Adapter HDMI Switch 4 in 1 out is high quality and reliable solutions for connecting 4 HDMI source devices to a single HDMI display and switching between them. It supports video resolution up to 4K@60Hz, compatible with HDMI 2.0 HDCP 2.2 HDR.  It supports ARC/eARC function (only for the “INPUT 1(eARC)” port). It also supports advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH selectable).

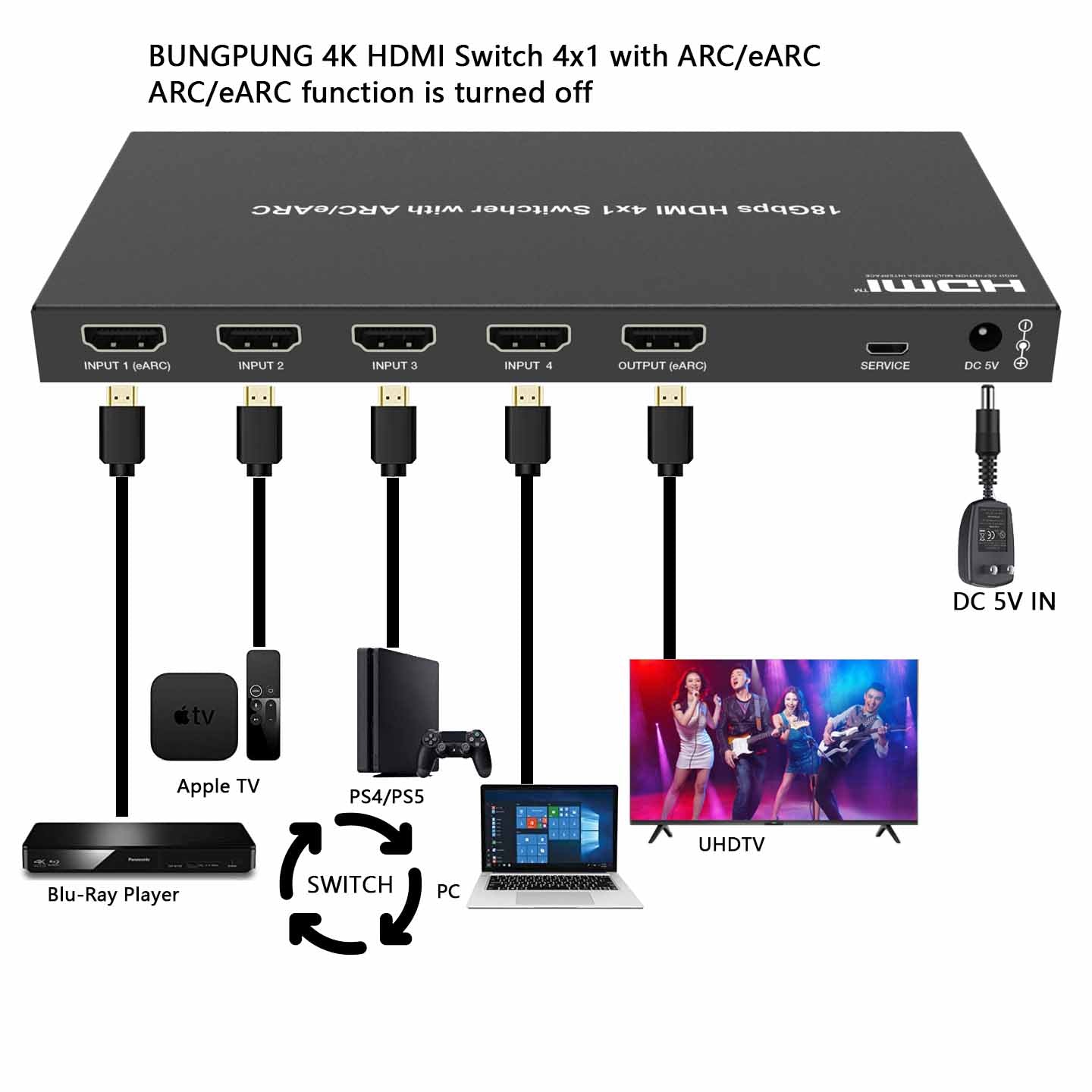

ARC/eARC function off: At this time, the product is used as a 4-input 4K HDMI switcher, and the EDID AUTO mode is the TV EDID mode, at this time, the switch outputs audio and video content according to the TV EDID. At this time, EDID 2.0CH, 5.1CH, 7.1CH mode can be used to output the corresponding fixed audio format.

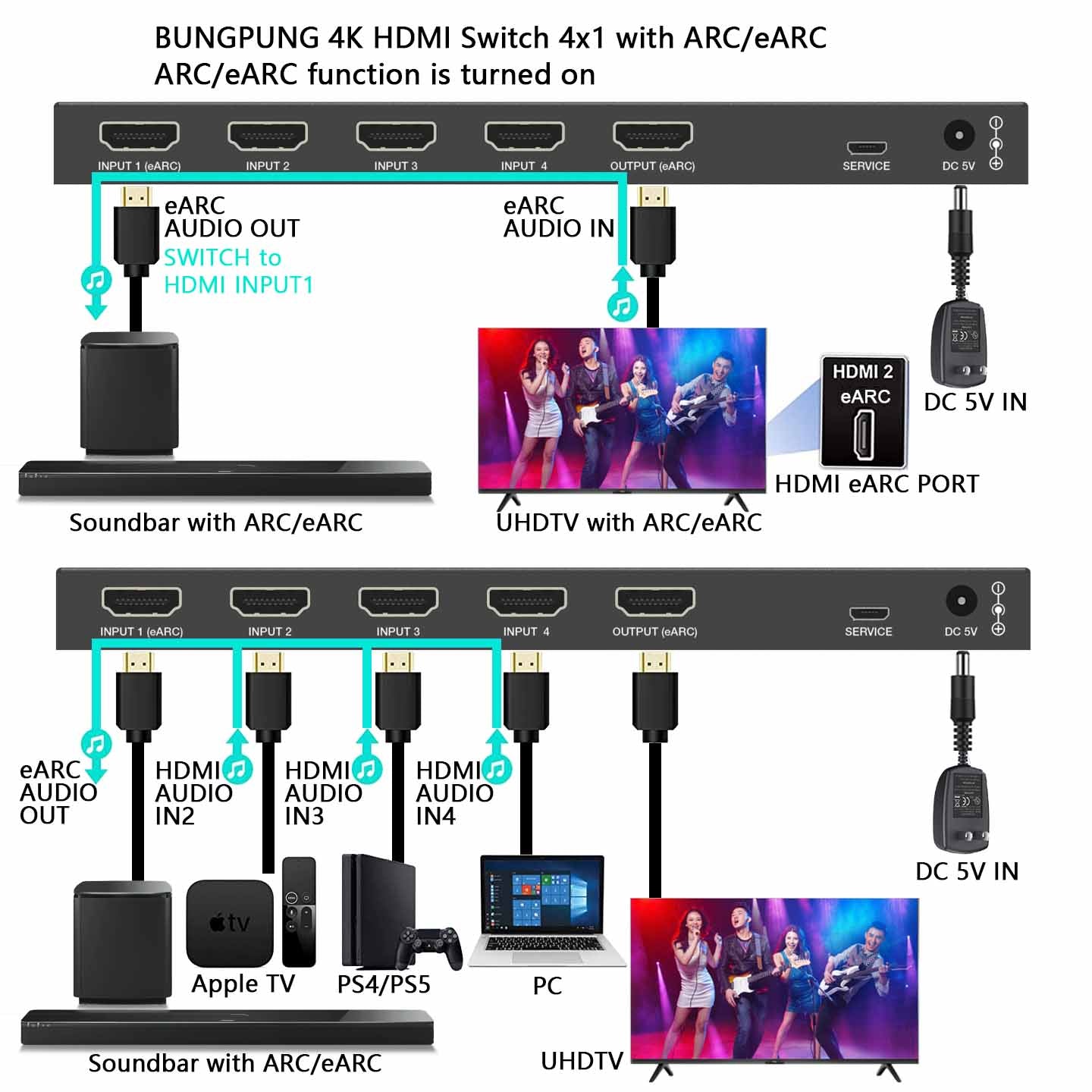

When the ARC/eARC function is turned on, select the input port 1 as the HDMI input source, then connect the “INPUT 1(eARC)” port to a Soundbar (eARC compatible), and connect the “OUTPUT(eARC)” port to a TV (eARC compatible), the eARC audio signal will be transmitted from TV to Soundbar. (For example, when user watches TV APP, the Switcher will pass-through TV eARC/ARC audio to the Soundbar.)

When the ARC/eARC function is turned on, select the input port 2/3/4 as the HDMI input source. then connect the “INPUT 1(eARC)” port to a Soundbar (eARC compatible), the HDMI audio from “INPUTS 2/3/4” port will be extracted and converted to eARC audio, then it will be played on the Soundbar. Since it compliant with audio formats such as LPCM, Dolby True HD and DTS-HD Master Audio, this switch is a perfect solution for connecting SONOS ARC/BOSE 500/700/900 Soundbars and other eARC/ARC audio/video receivers.

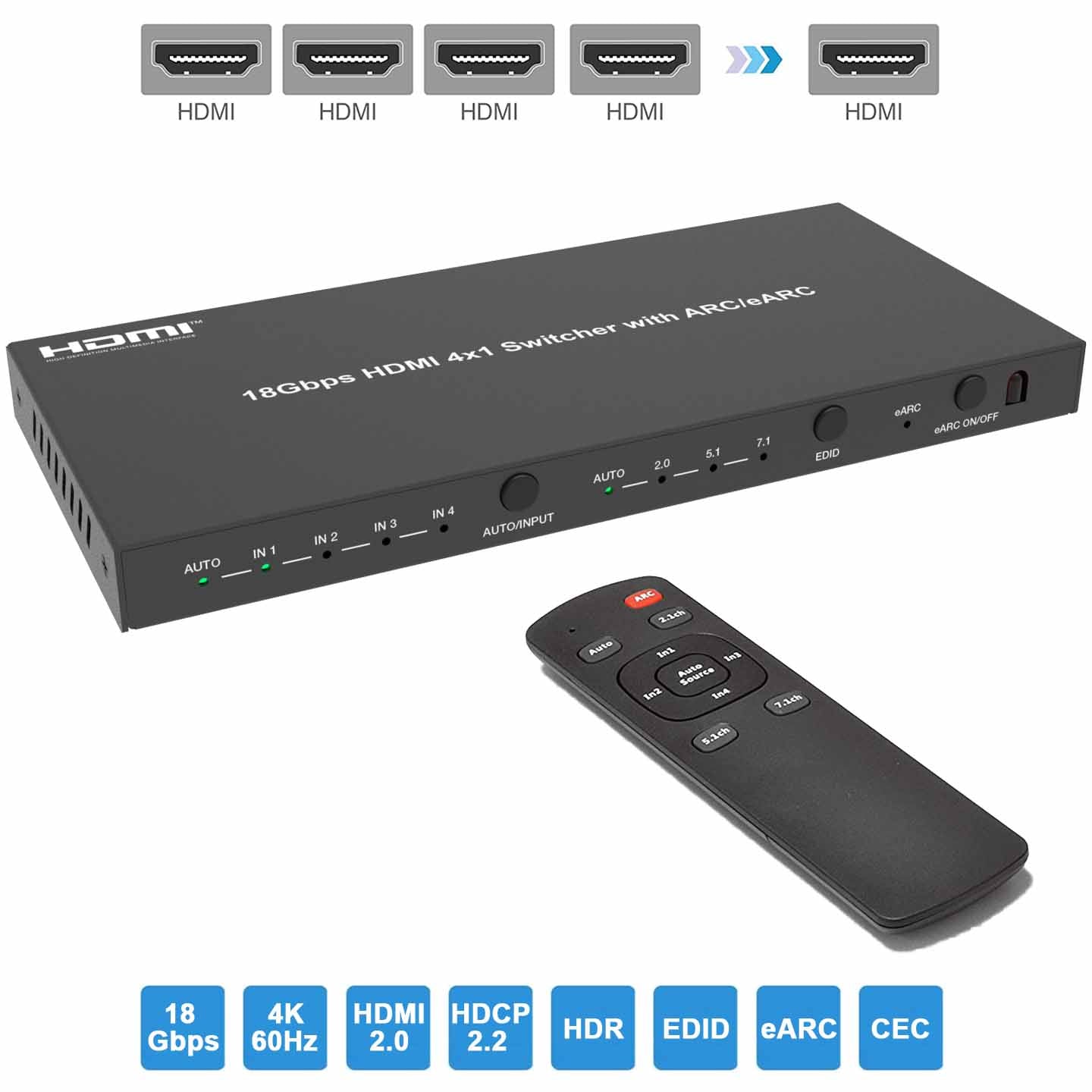

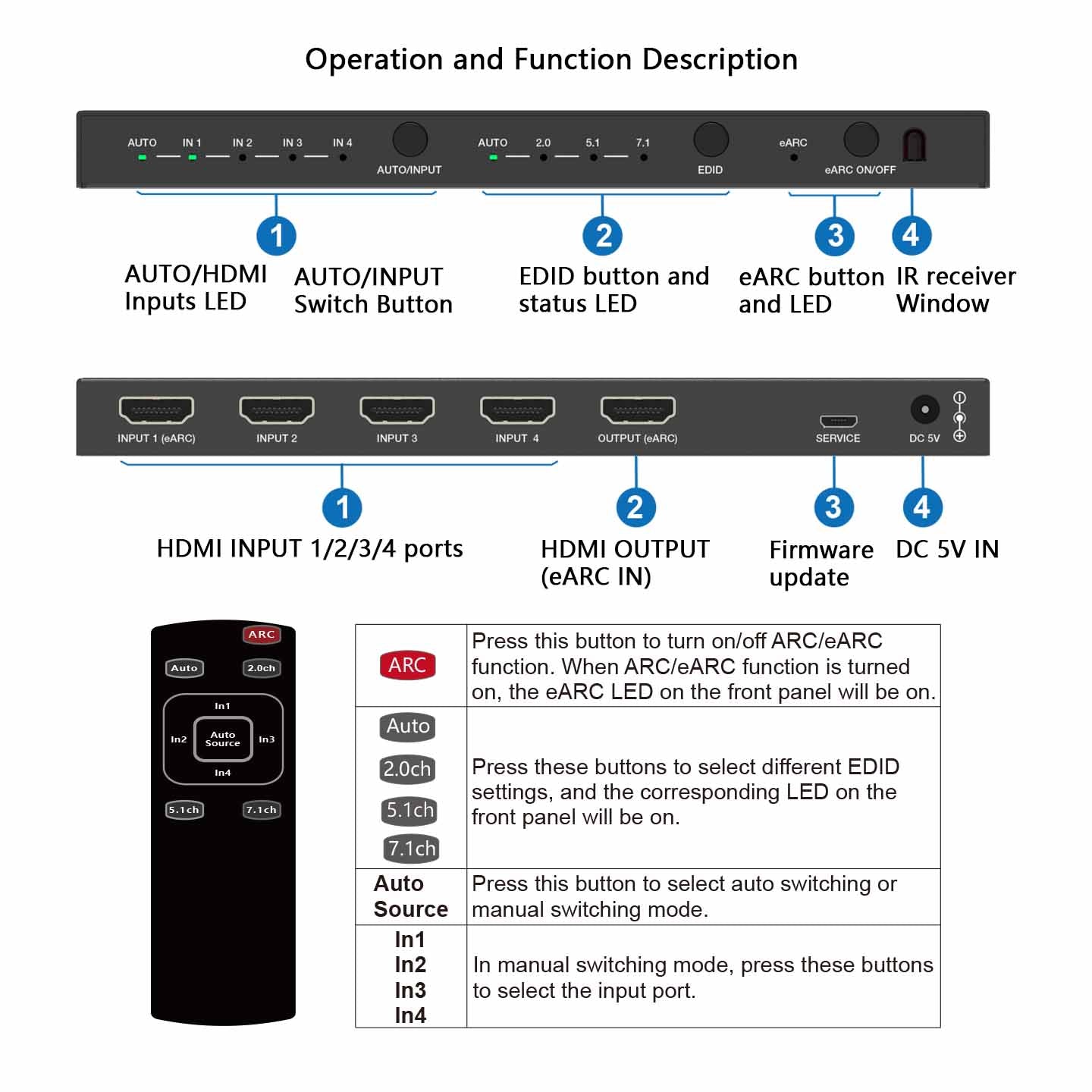

This HDMI switch provides efficient, simple switching options for the user, via an included IR remote and push buttons on the main unit. The switch can also identify the active HDMI source device and automatically switch to this option, providing a useful solution for when the unit is required to be out of sight.


Features

  • 4K@60Hz HDMI Switch 4 in 1 out: it switches between 4 HDMI source devices when connected to a single display, you can choose the HDMI signal source by the IR remote control and panel button, easy to access. 18 Gbps HDMI 2.0 HDCP 2.2 HDR CEC ARC compliant.
  • HDMI eARC Audio Converter Transmitter:When the ARC/eARC function is turned on, select the input port 1 as the HDMI input source,the eARC audio signal can be transmitted from TV to Soundbar. select the input port 2/3/4 as the HDMI input source, the HDMI audio from “INPUTS 2/3/4” port will be extracted and converted to eARC audio, then it will be played on the Soundbar.
  • Full compatible: This HDMI switch is compatible with gaming consoles such as PlayStation, Xbox one, Nintendo, Roku, DVD, blue ray, players fire TV, cable TV, Chromecast and other HDMI devices.
  • Compact size for easy plug & play installation. Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation
  • 1-year warranty for product defects.

Download User Manual

Specifications

Technical



HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.2/1.x

Video Bandwidth

18Gbps

Video Resolution

4Kx2K@24/30Hz, 4K2K@60Hz

Color Depth

8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0)

Color Space

RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4

HDMI Audio Formats

LPCM, Dolby Digital/Plus/EX, Dolby True HD,
Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

ESD Protection

Human body model—±8kV (Air-gap discharge) &

±4kV (Contact discharge)

Connection



Input Ports

4×HDMI Type A (19-pin female)

Output Ports

1×HDMI Type A (19-pin female)

Control 1×SERVICE [Micro USB port]

Mechanical



Housing

Plastic Enclosure

Silkscreen Color

Black

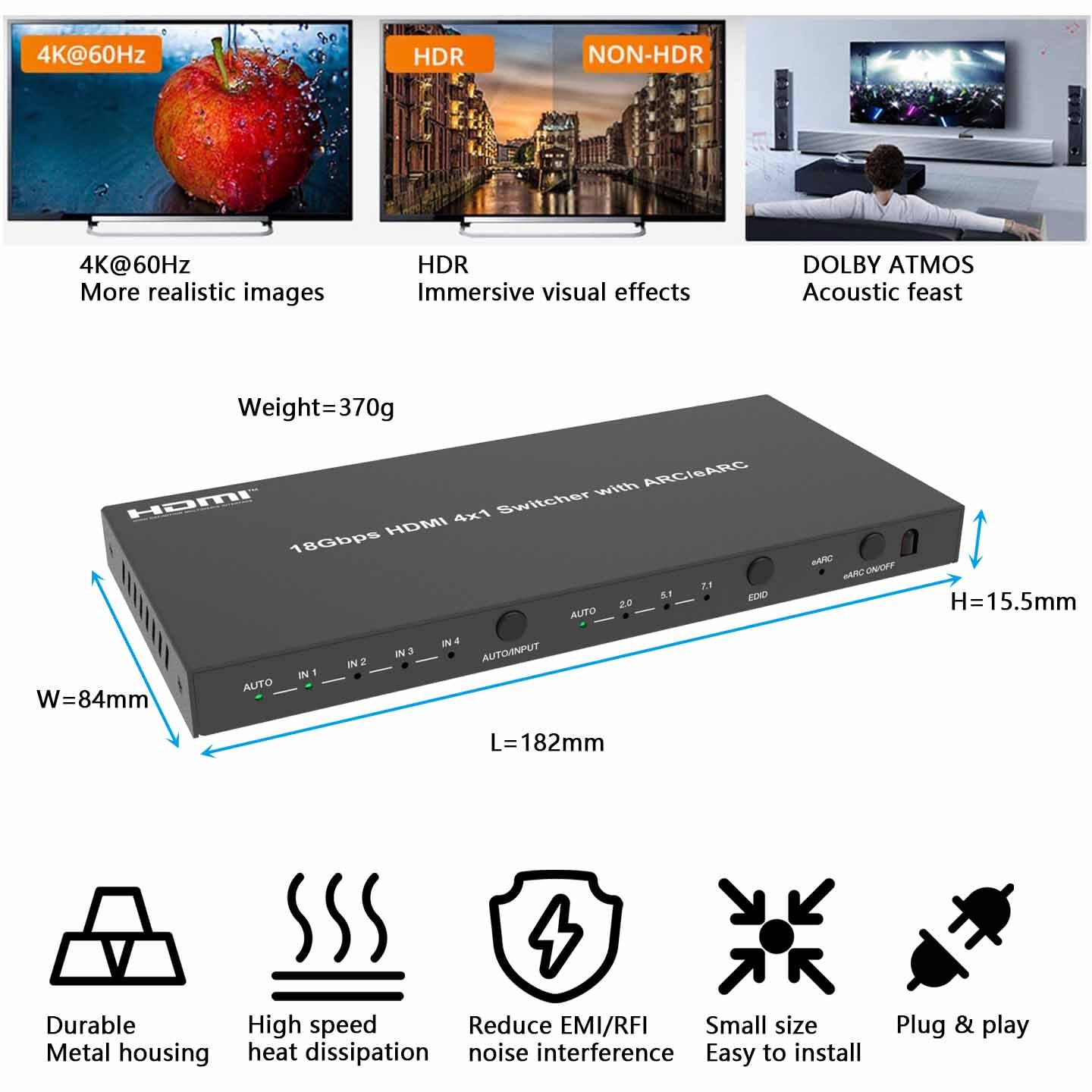

Dimensions

182mm(W) × 84mm(D) × 15.5mm(H)

Weight

370g

Power Supply

Input: AC100~240V 50/60Hz

Output: DC5V/1A (US/EU standards,CE/FCC/UL certified)

Power Consumption

2W

Operation Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)

Package Contents

① 1 × 18Gbps HDMI 4x1 Switcher
② 1 × 5V/1A Power Adapter (USA Standard)
③ 1 × IR Remote
④ 1 × User Manual
