4K HDMI Matrix Switcher 4x4 PRODUCT DETAILS
the BUNGPUNG 4K HDMI Matrix Switcher 4x4 is a reliable solution allows the connection of 4 HDMI source devices to 4 HDMI displays, and enable the routing of any HDMI source to any HDMI display. It supports video resolution up to 4K@60Hz, compatible with HDMI 2.0 HDCP 2.2 HDR. It supports advanced EDID management provides maximum compatibility for connecting with multiple different displays. it provides simple and flexible switching options via an included IR remote and push buttons.
HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider color gamut, for more lifelike color.
HDMI matrix switchers are ideal for any application that requires customizable, high-speed AV signal routing from multiple sources to more HDMI displays.
HDMI Matrix Switcher Applications
One reason for having an HDMI multiplex would be for a home audio-visual installation where it allowed multiple source devices to be connected to different displays.

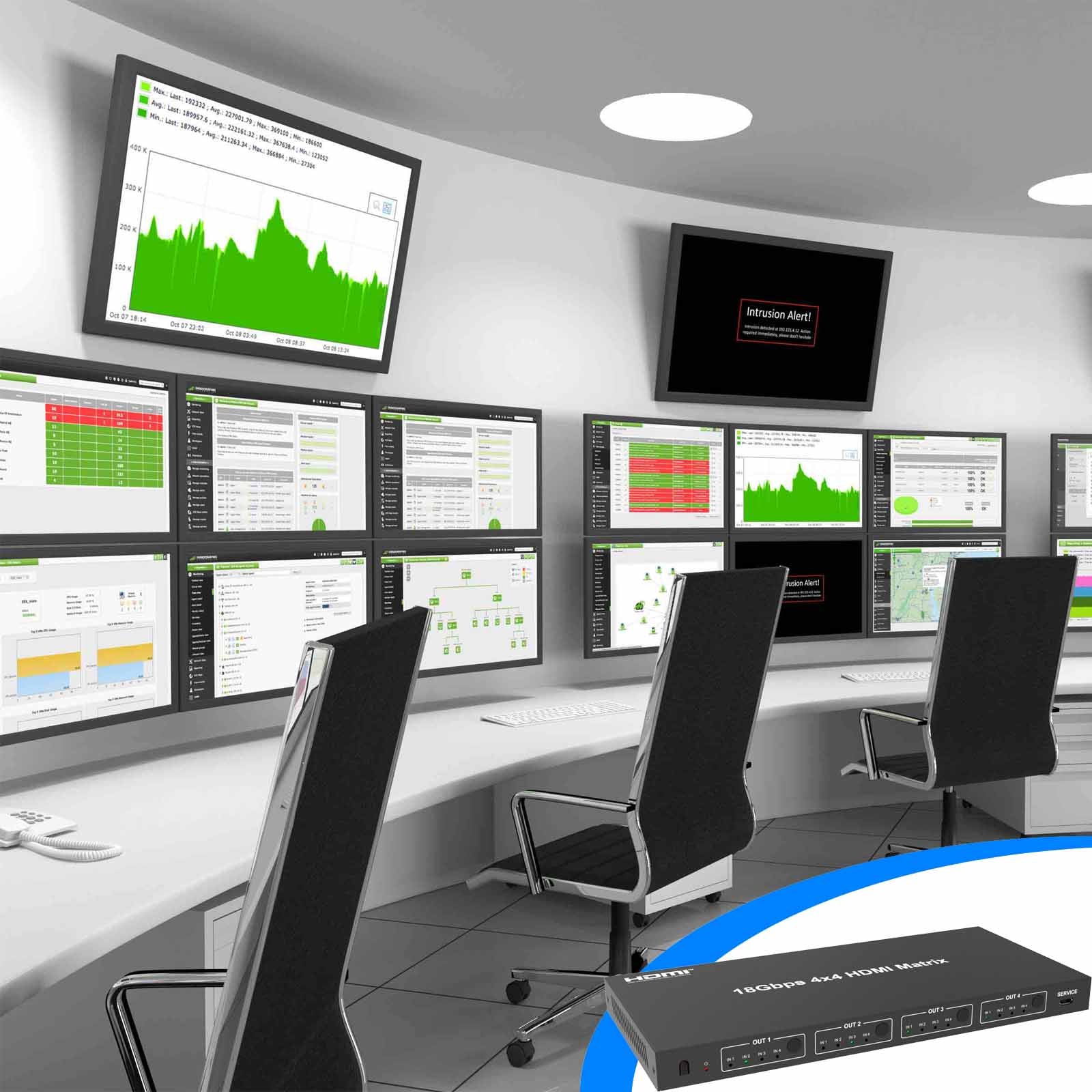

HDMI matrix switchers are used in radio and television, multimedia meeting rooms, education and command and control centers. These devices are also perfect for corporate, government markets where signal management and high-speed distribution of high-resolution video signals are crucial.
Features

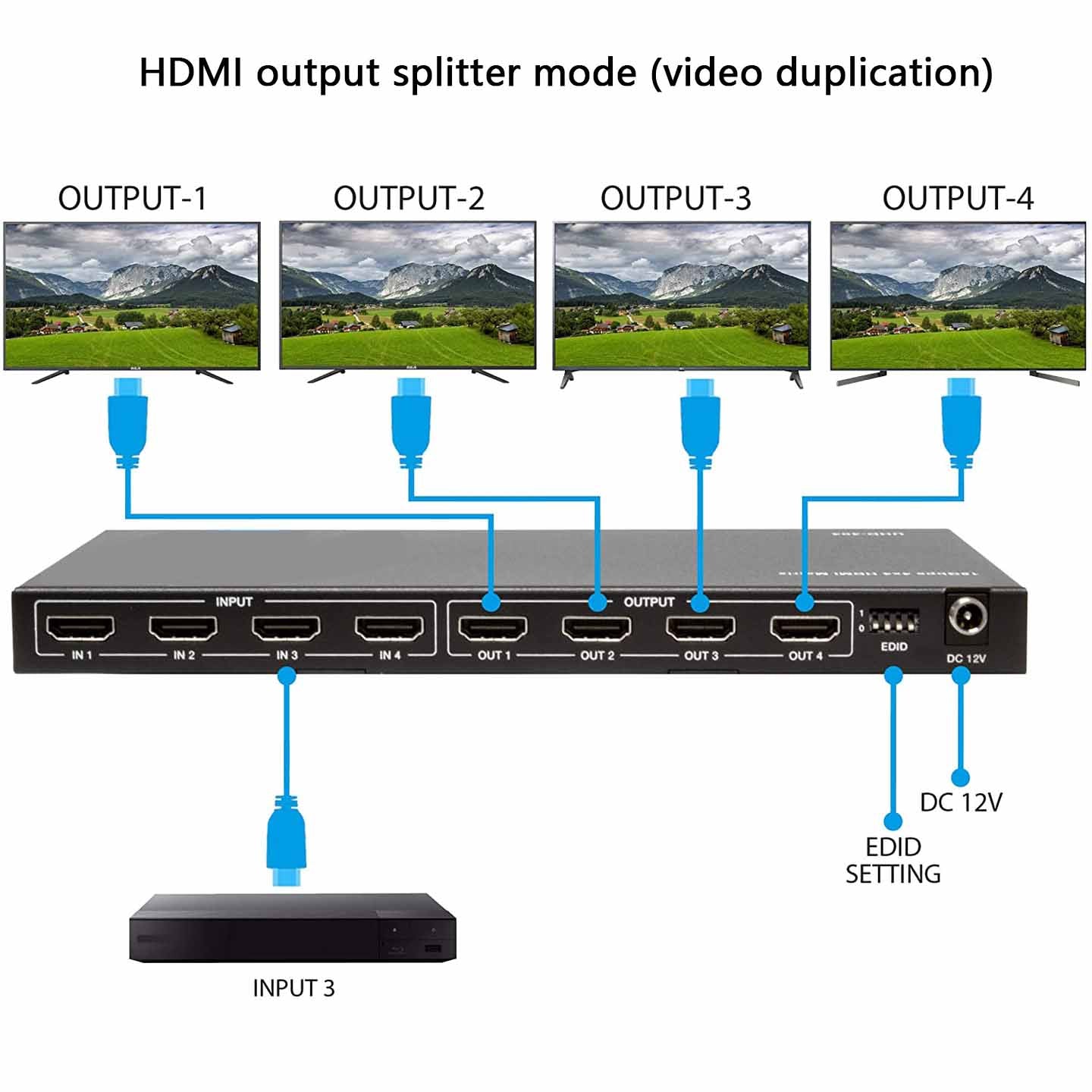

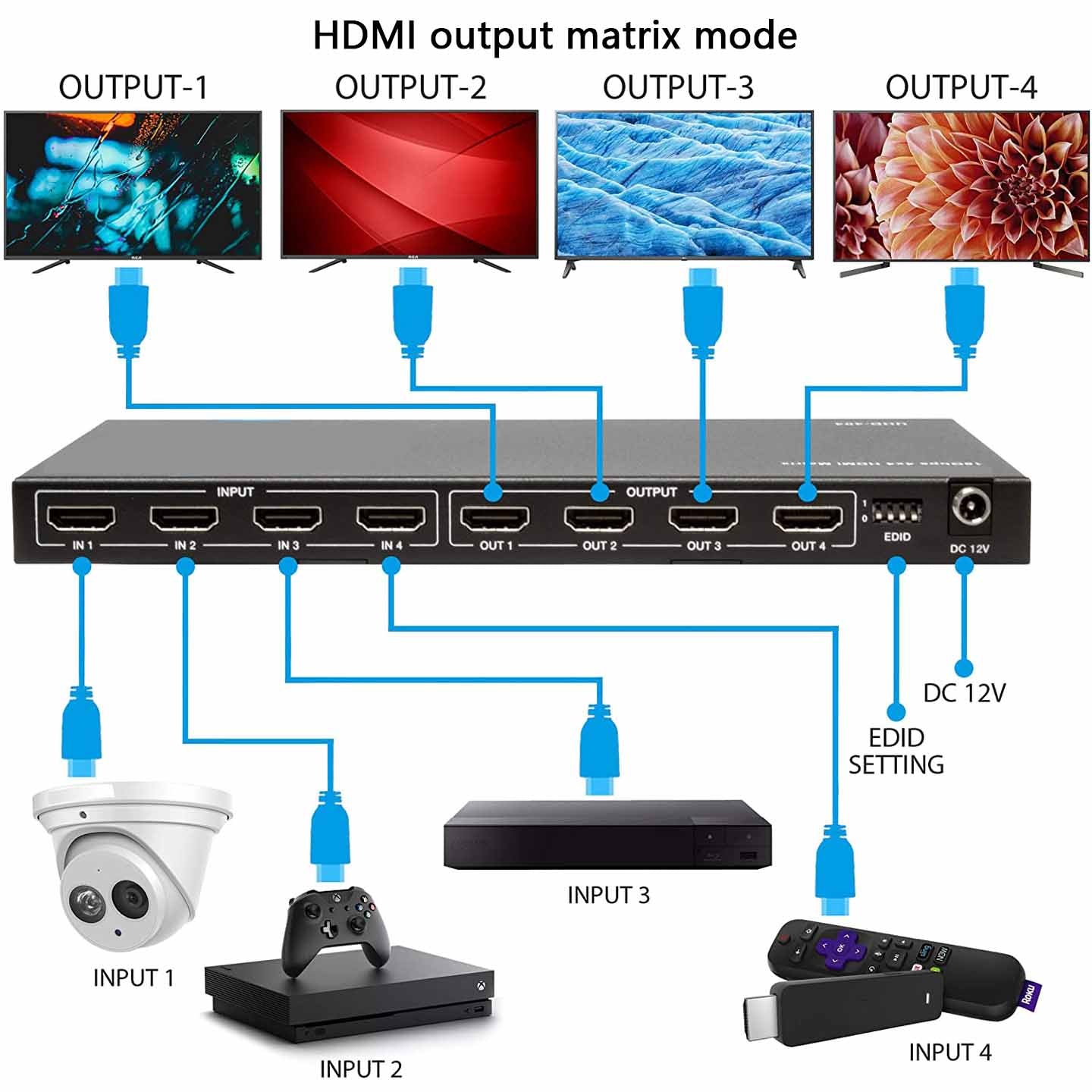

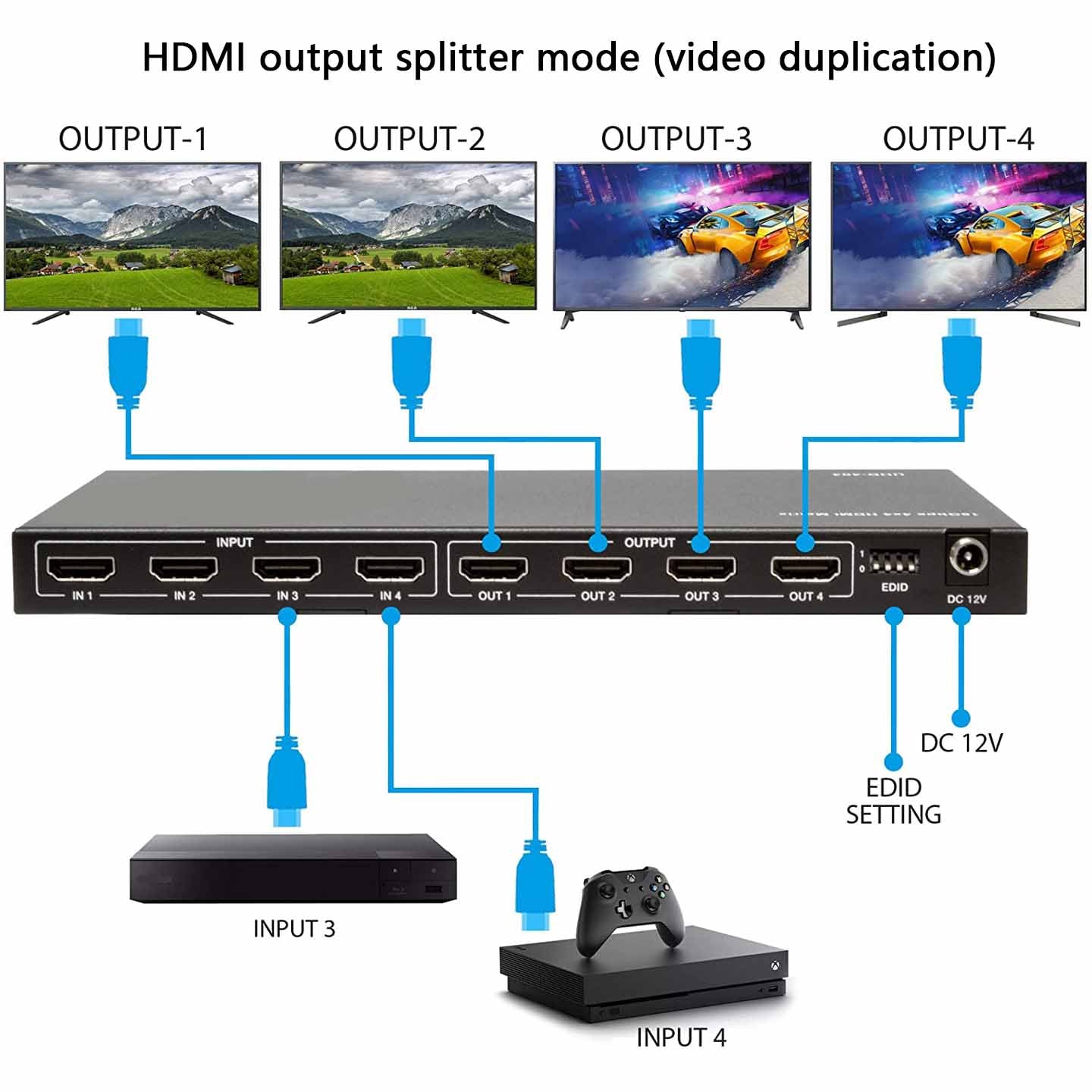

- 4x4 HDMI 2.0 Matrix switcher: it can switch any of these 4 HDMI sources to 4 HDMI displays simultaneously. Also, the product has distribution mode and switching mode.18Gbps HDMI 2.0b, HDCP 2.2 HDR compliant.

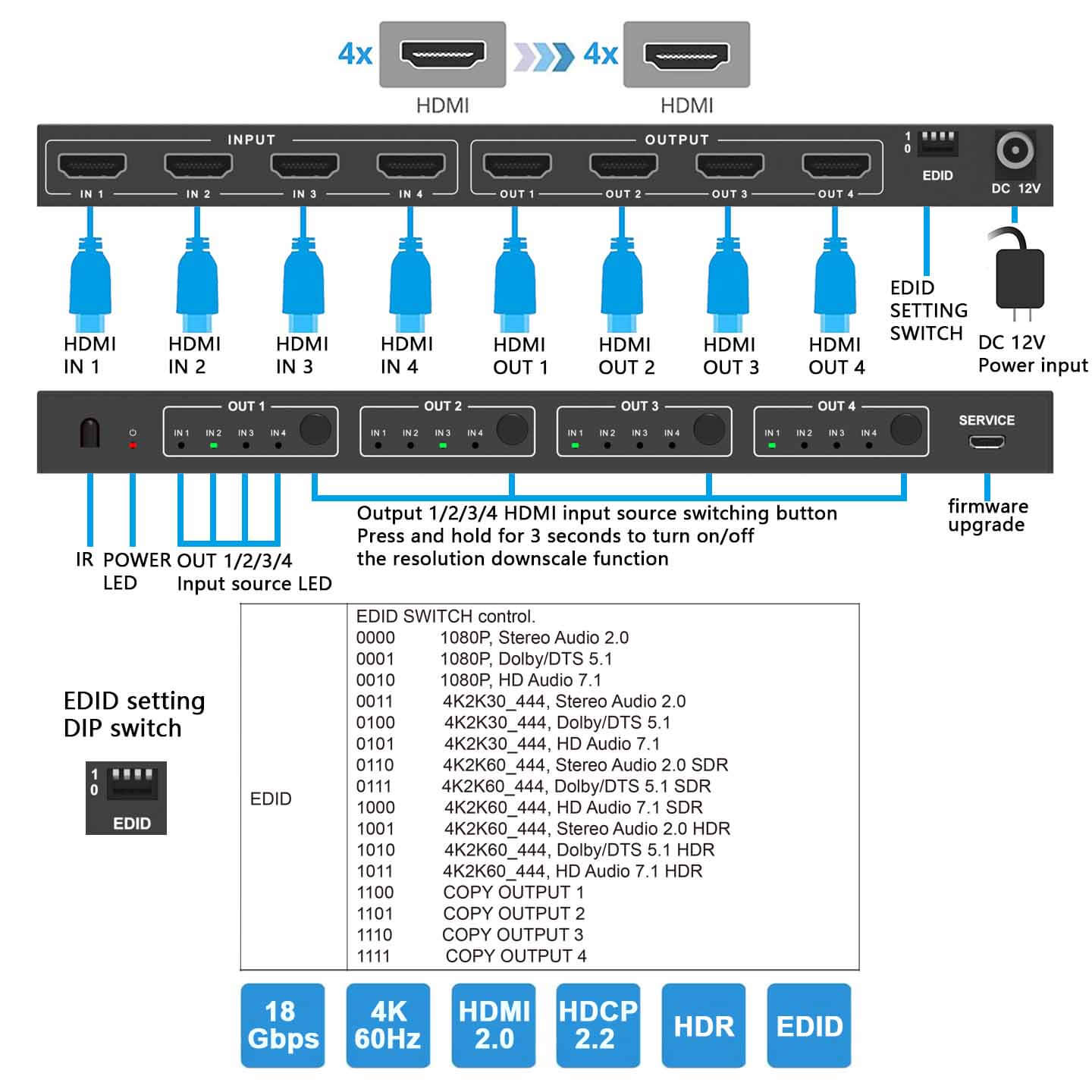

- Support advanced EDID management. It supports 4K→1080P downscale function if HDMI source is 4K but TV only supports up to 1080P.

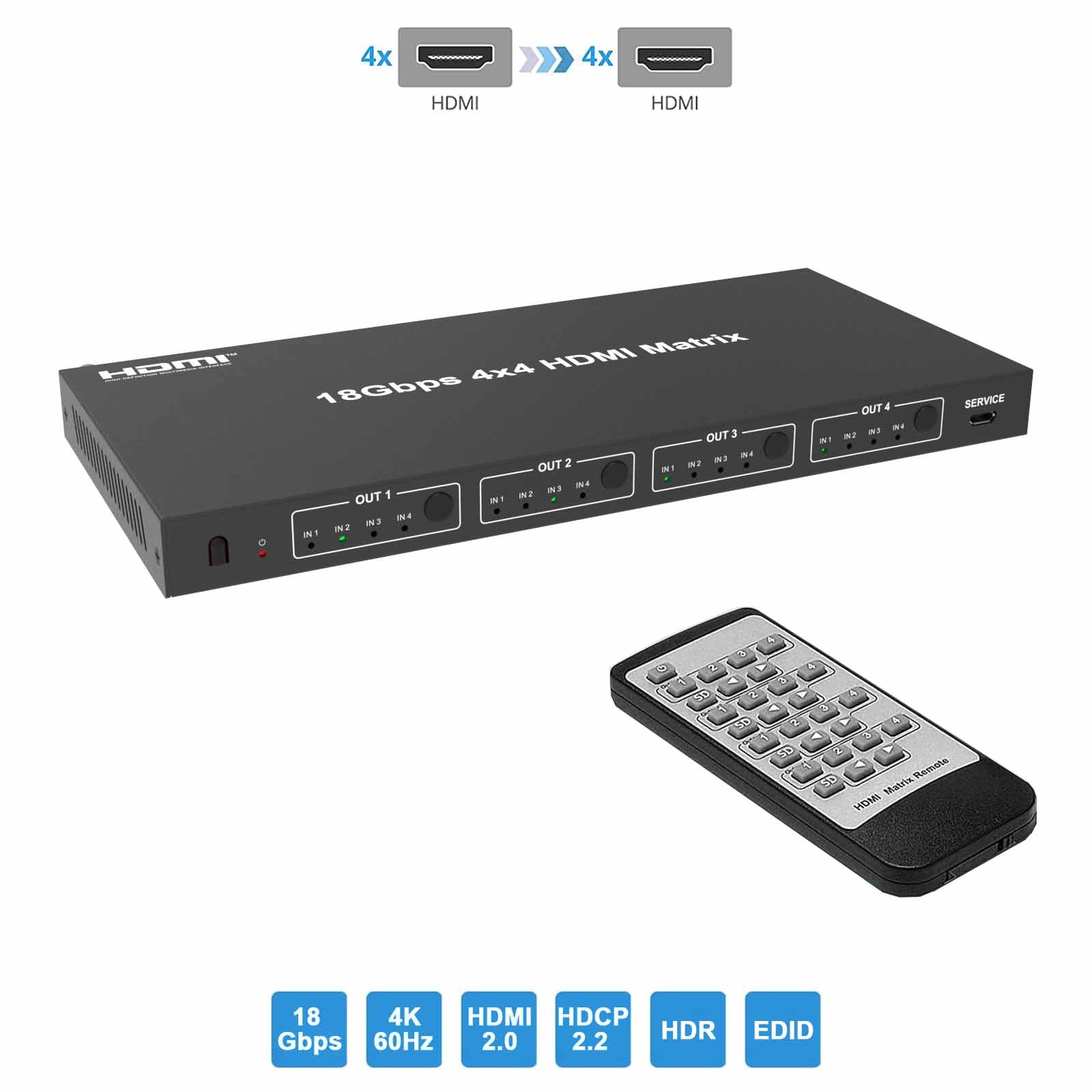

- Convenient remote control allows you to select any inputs on any output displays.
- Compact size and easy plug & play installation. Heavy-duty cool metal enclosure keeps the unit cool by aiding in quick heat absorption and dissipation
- 1 year warranty for product defects.
FQAs
- When it connecting HDMI input and output devices, What is the maximum length of HDMI input and output cables? According to our test, you can use 5m standard HDMI cable for 4K@60Hz RGB/YCbCr 4:4:4, 10m for 4K@30Hz RGB/YCbCr 4:4:4, 15m for 1080p@60Hz RGB/YCbCr 4:4:4. we recommend to use Premium High Speed HDMI cable.
- What is the maximum input and output resolution supported by this product?Supports video resolution up to 4K@60Hz or 1080P@120Hz with 8 bit RGB/YCBCR 4:4:4.
- What is the transmission distance and angle of the infrared remote control that comes with this product? using the IR remote, the best distance is 0~7m and the best angle is ± 45°.
- Can we use the matrix switch work with HDMI video capture card?No. our splitters will not work with HDMI capture cards due to the HDCP encryption on the output.
- What is the function of the fixed EDID mode? It will output fixed resolution and audio format to all connected display devices according to the corresponding EDID settings.
- What is the function of the COPY EDID mode? the product will copy the EDID setting of the display device connected to the corresponding HDMI OUT port and transmit it to source devices, then the source devices will send the signal to all HDMI outputs according to the EDID setting.
- Does it support Dolby Vision? Yes
- can we leave the device continuously running? Yes, our HDMI matrix are designed for commercial use so you can run them continuously 24x7
Specifications
|
Technical |
|
|
HDCP Compliant |
HDCP 2.2 / 1.x |
|
Video Bandwidth |
594MHz / 18Gbps |
|
Video Resolution |
480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
|
Color Space |
RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 |
|
Color Depth |
8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
|
HDMI Audio Formats |
LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio |
|
ESD Protection |
Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
|
Connection |
|
|
Inputs |
4×HDMI Type A [19-pin female] 1×IR Receiver Window 1×Micro USB |
|
Outputs |
4×HDMI Type A [19-pin female] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Black |
|

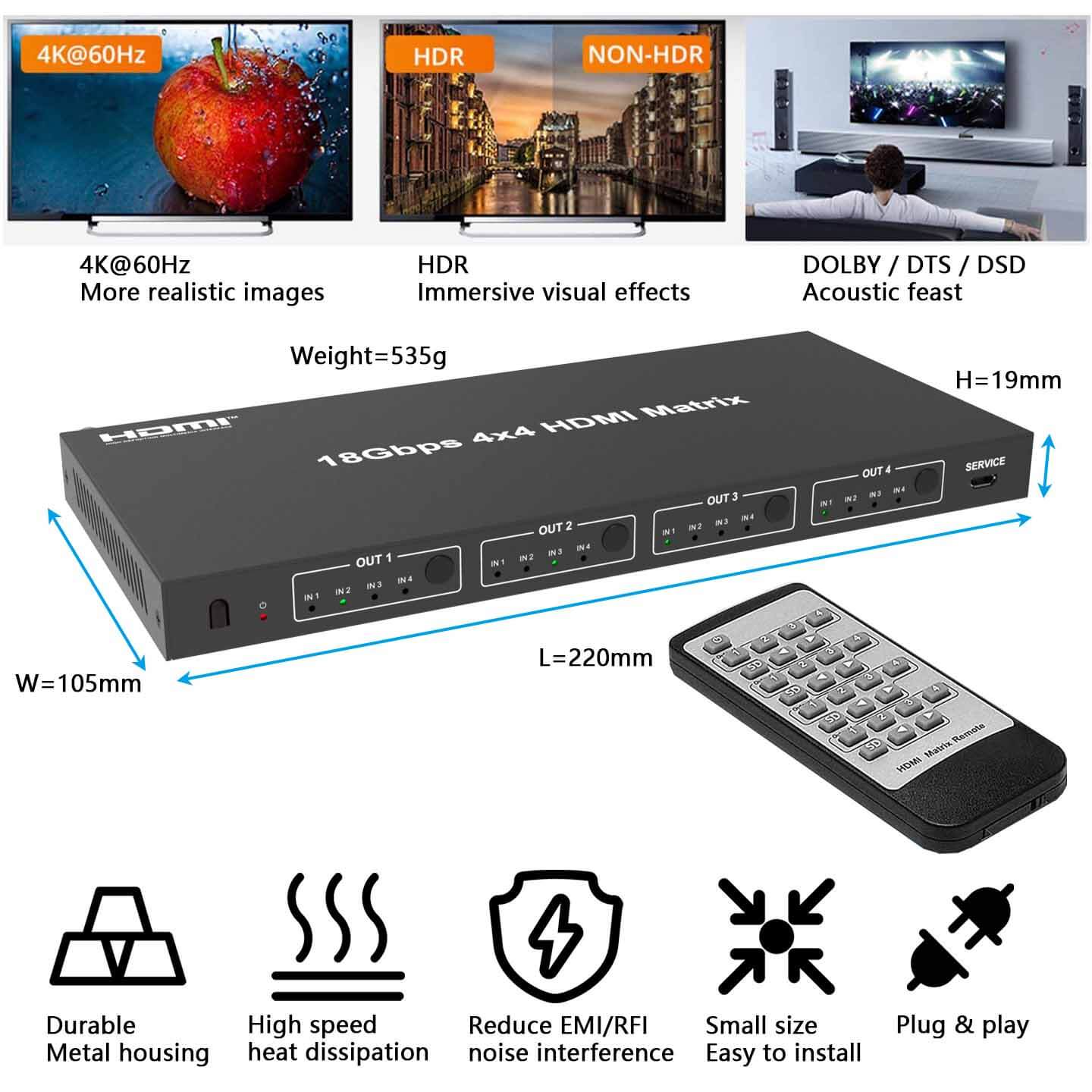

Dimensions |
220mm(W)×205mm(D)×19mm(H) |
|
Weight |
535g |
|
Power Supply |
Input: AC100~240V 50/60Hz Output: DC 12V/2.5A(US/EU standard, CE/FCC/UL certified) |
|
Power Consumption |
11.04W |
|
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% RH (non-condensing) |
| Package Contents |
① 1× 4×2 HDMI2.0 Matrix Switcher ② 1× 12V/1A Locking Power Adapter ③ 2× Mounting Ears ⑤ 1× User Manual |
