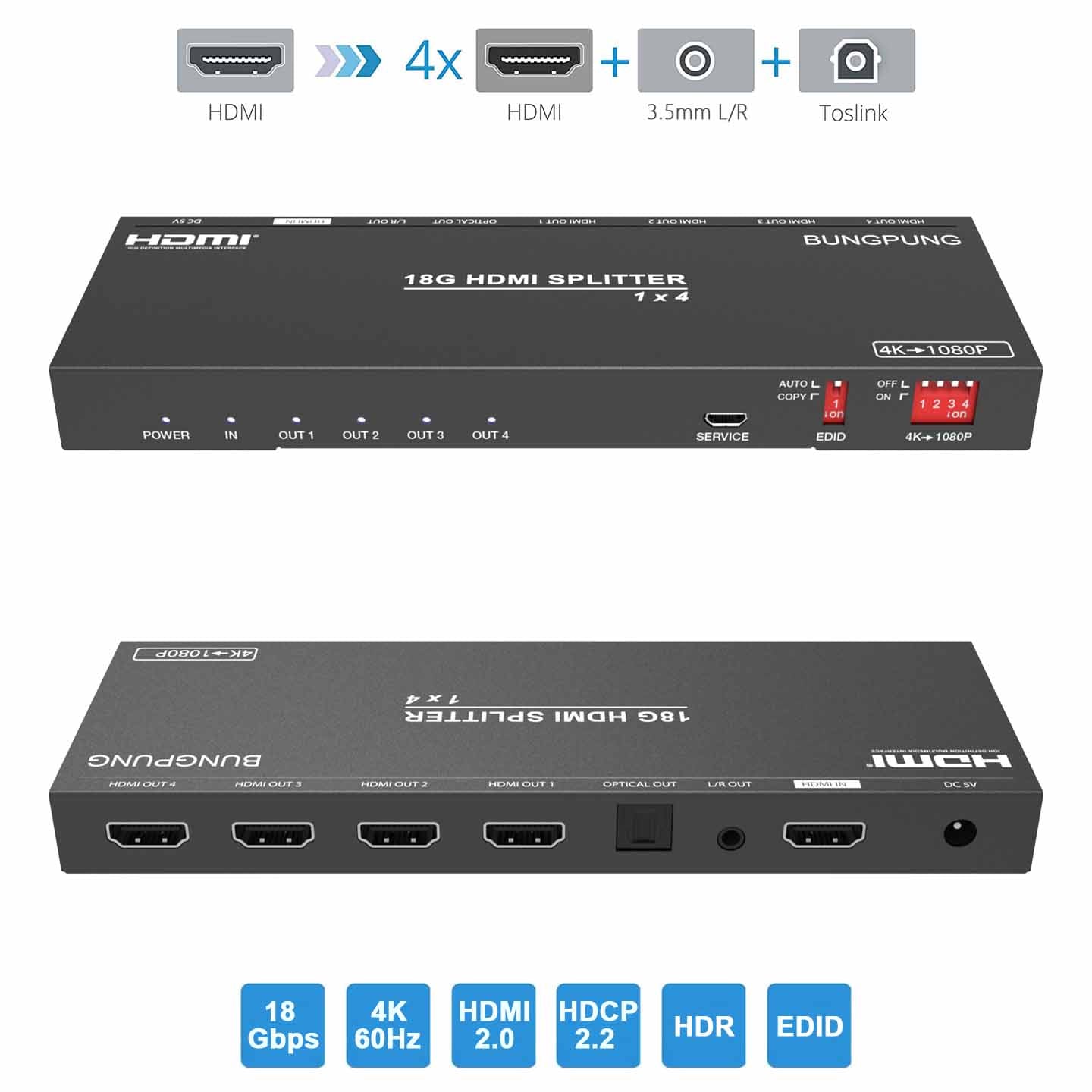

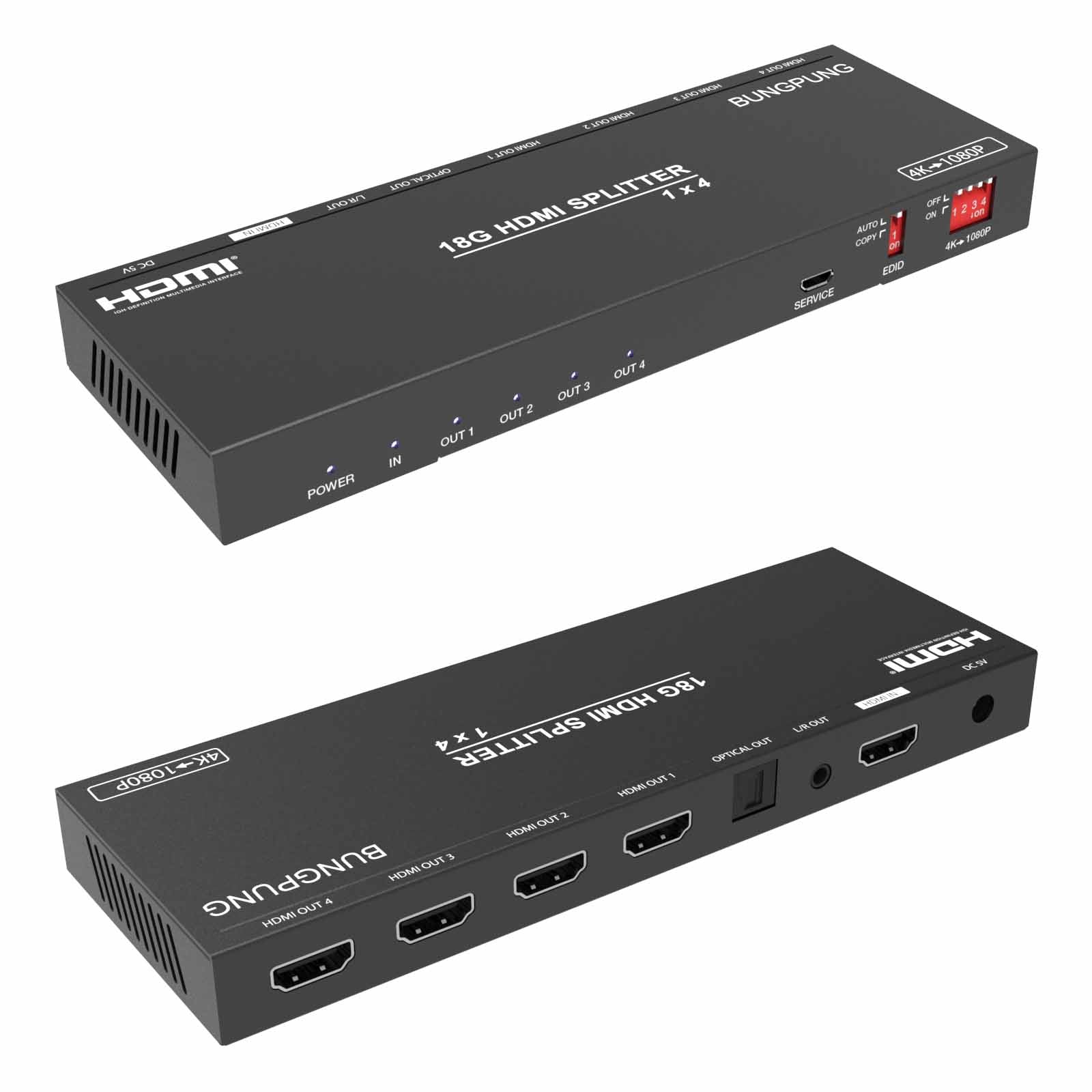

4K HDMI Splitter 1 in 4 out Audio Extractor EDID Management-BUNGPUNG

4K HDMI Splitter 1 in 4 out Audio Extractor EDID Management-BUNGPUNG

Regular price $67.52 USD
Regular price $93.16 USD Sale price $67.52 USD
Sale Sold out
Shipping calculated at checkout.

SKU:HDV-B14SA

50 in stock

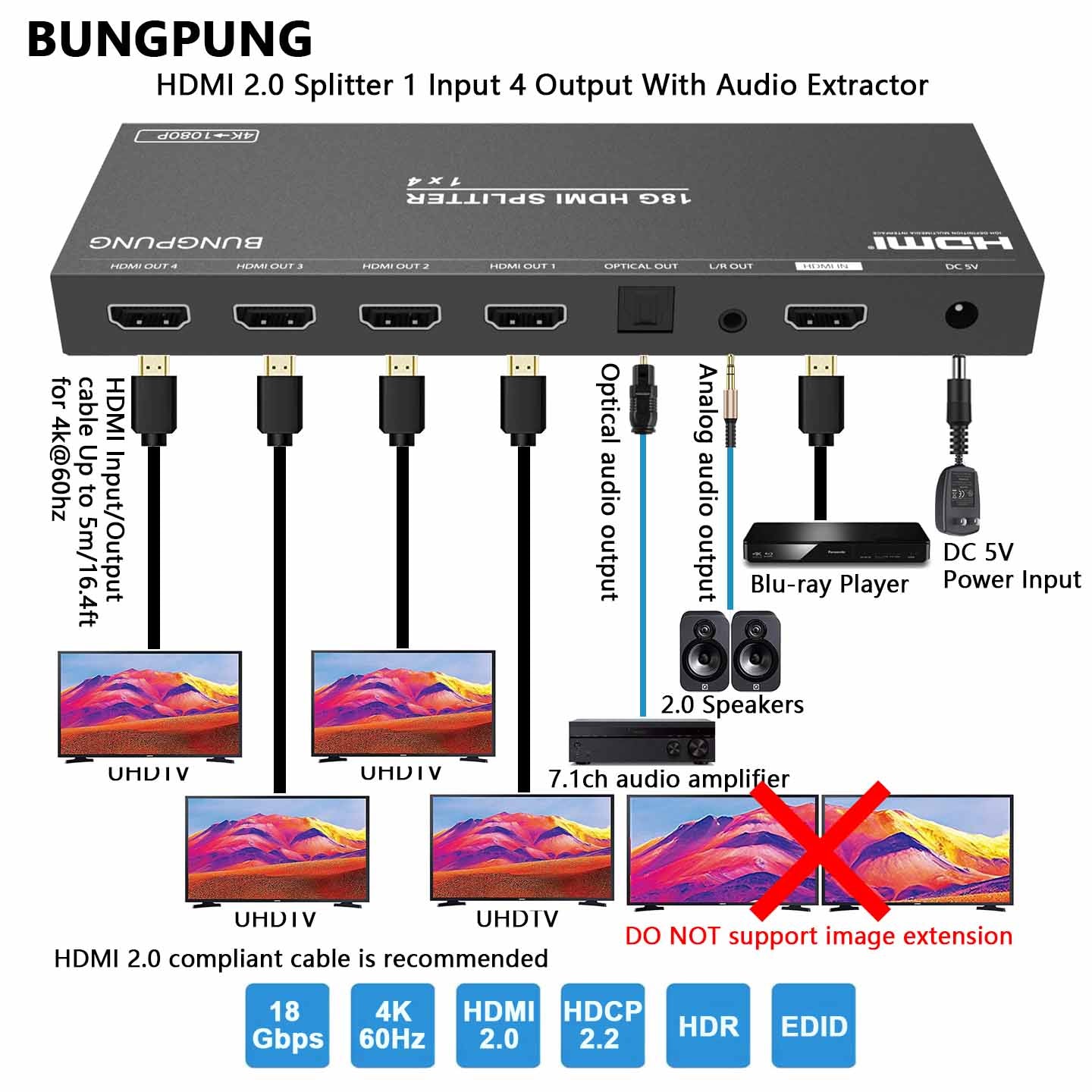

4K HDMI Splitter 1 in 4 out Audio Extractor connection-BUNGPUNG

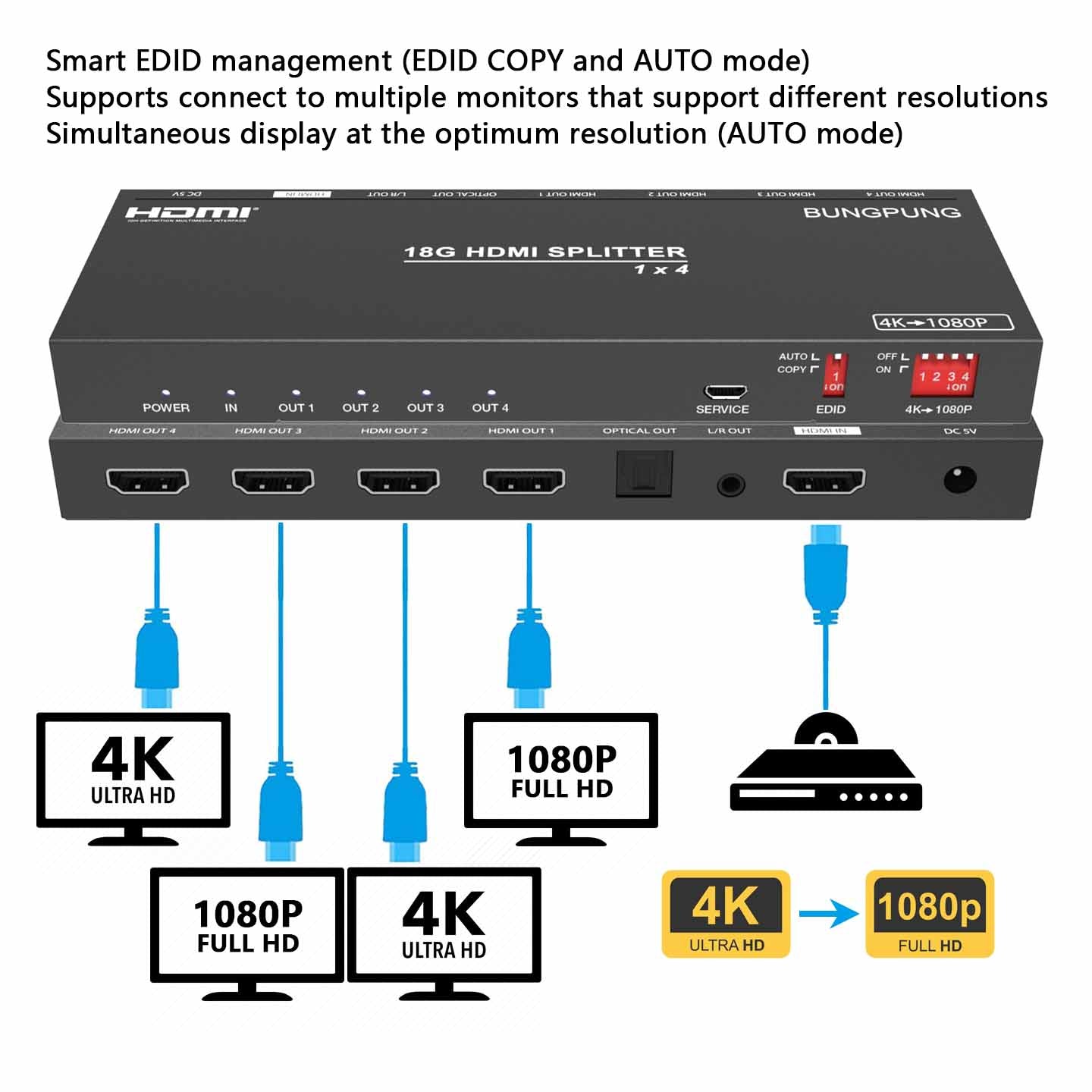

4K HDMI Splitter 1 in 4 out Audio Extractor EDID Management-BUNGPUNG
4K HDMI Splitter 1 in 4 out Audio Extractor application-BUNGPUNG

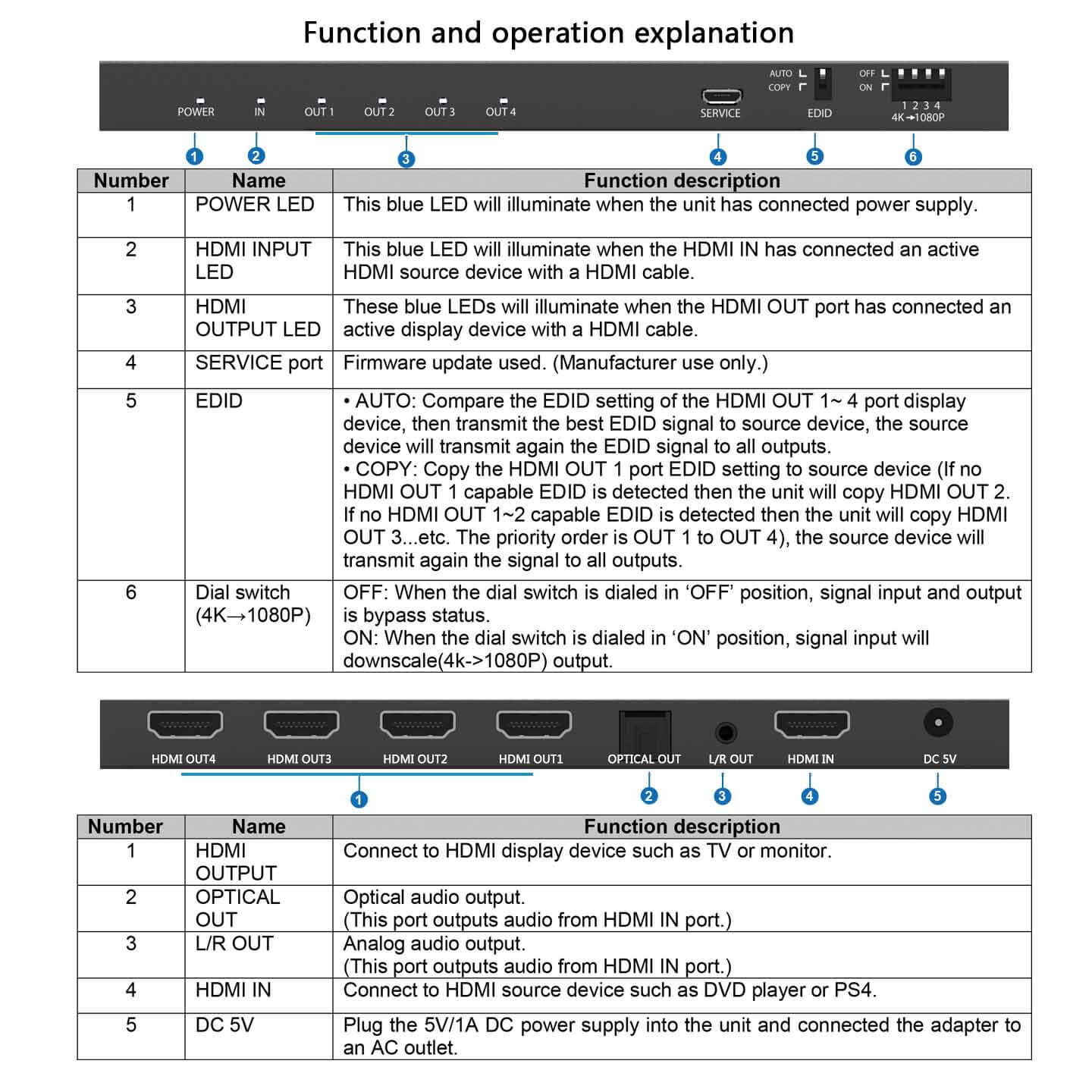

4K HDMI Splitter 1 in 4 out Audio Extractor PRODUCT DETAILS

The BUNGPUNG 4k HDMI Splitter 1 in 4 out is a compact, high quality solution for distributing a HDMI 2.0 signal to 4 HDMI displays from a HDMI source device. it support video resolutions up to 4K@60Hz 4:4:4 8bit, compatible with HDMI 2.0 HDCP 2.2 HDR. a smart EDID management switch on the unit provides maximum compatibility with multiple different displays. it supports audio extract from HDMI source to optical and analog output. its HDMI Output supports bypass and resolution downscaler(4K->1080P ) function.

HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider color gamut, for more lifelike color.

this splitter provides an excellent HDMI splitting experience, ideal for multi-screen duplicate display situations such as informational broadcasting in school teaching, airports, train stations or stock exchange offices. The splitters durable, compact design also ensures the unit can be easy and flexible installed.

Features

  • 4K@60Hz HDMI Splitter 1 in 4 out: splitting a HDMI signal to 4 HDMI outputs synchronously, comes with EDID management. Supports HDMI output bypass and 4K->1080P downscale function via dial switch on panel.
  • Supports extract optical digital and analog audio from HDMI source.
  • 18 Gbps HDMI 2.0 HDCP 2.2 HDR compliant. it is capable for receiving, retiming
    and transmitting up to 18Gbps of bandwidth with no data loss.
  • Compact size for easy plug & play installation. Heavy-duty cool metal enclosure keeps the unit cool by aiding in quick heat absorption and dissipation.
  • 1-year warranty for product defects.

FAQs

  1. Can we use the splitter work with HDMI video capture card? No. our splitters will not work with HDMI capture cards due to the HDCP encryption on the output.
  1. Can the splitter show multiple different images on the different screens? No. Our HDMI splitter will duplicate or mirror a single HDMI source on multiple HDMI displays. Both displays will show the same video and audio simultaneously
  1. Does this HDMI splitter support extend mode?No. Our splitter does not support extend mode. It only supports mirror or duplicate screen function, each screen will show the same image.
  1. What is the maximum input and output resolution supported by this product? it Supports video resolution up to 4K@60Hz or 1080P@120Hz with 8 bit RGB/YCBCR 4:4:4.
  1. What is the maximum length of HDMI input and output cables?  You can use standard HDMI 2.0 cables up to 5m for 4K@60Hz RGB/YUV 4:4:4. If its not a high quality cable then you may lose the signal in some instances.
  1. Does it support HDMI CEC function?  No,
  2. Does it support Dolby Atmos and Dolby Vision? yes
  3. Does it support 4k@60Hz at 10bit color and HDCP 2.2? yes
  4. What is the function of the AUTO EDID mode?  the device will compare OUT 1 and OUT 2 displays EDID setting, then output the best resolution information that all display can support to source device, the source will transmit the signal to all outputs.
  1. What is the function of the COPY EDID mode?  the device will copy the EDID setting of the HDMI OUT 1 display to the source device, and the source device will send a signal matching the OUT 1 display to all output devices. So, when a 4K display is connected to OUT 1, in COPY mode, the source will deliver 4K to both displays. If a 1080p display is connected to OUT 2 then it will not receive a signal unless the Downscale switch is turned on for that display.
  1. Does it support 4K->1080P video downscale function?  The splitter also features video resolution downscaling function. If the source provides a 4K signal and one of the displays can only handle 1080p, the downscale switch can be switched on for the specific output port. This converts the 4K signal to 1080p. Other parameters such as frame rate, color space, and sound format will not be affected. A 4K@60Hz signal will be downscaled to 1080p@60Hz, and 4K@30Hz will be downscaled to 1080p@30Hz. When using 4K and 1080p displays at the same time, HDR should be turned off at the source, or EDID AUTO mode should be used because Full HD displays cannot correctly display Dolby Vision HDR.
  1. Does it support audio extraction?  Yes. It Supports digital and analog audio extraction output from HDMI source.



Download User Manual

Specifications

Technical
HDMI Compliance  HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 18Gbps
Video Resolutions 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4)
Color Depth 4K60Hz 8-bit, 1080P 12-bit
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats PCM 2.0
Optical Audio Formats LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+,  DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
ESD Protection Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connections
Input ports 1×HDMI Type A [19-pin female]
Output ports 4×HDMI Type A [19-pin female]
1×L/R Audio out [3.5mm Stereo Mini-jack]
1×Optical out [S/PDIF]
Mechanical
Housing Metal Enclosure
Color Black

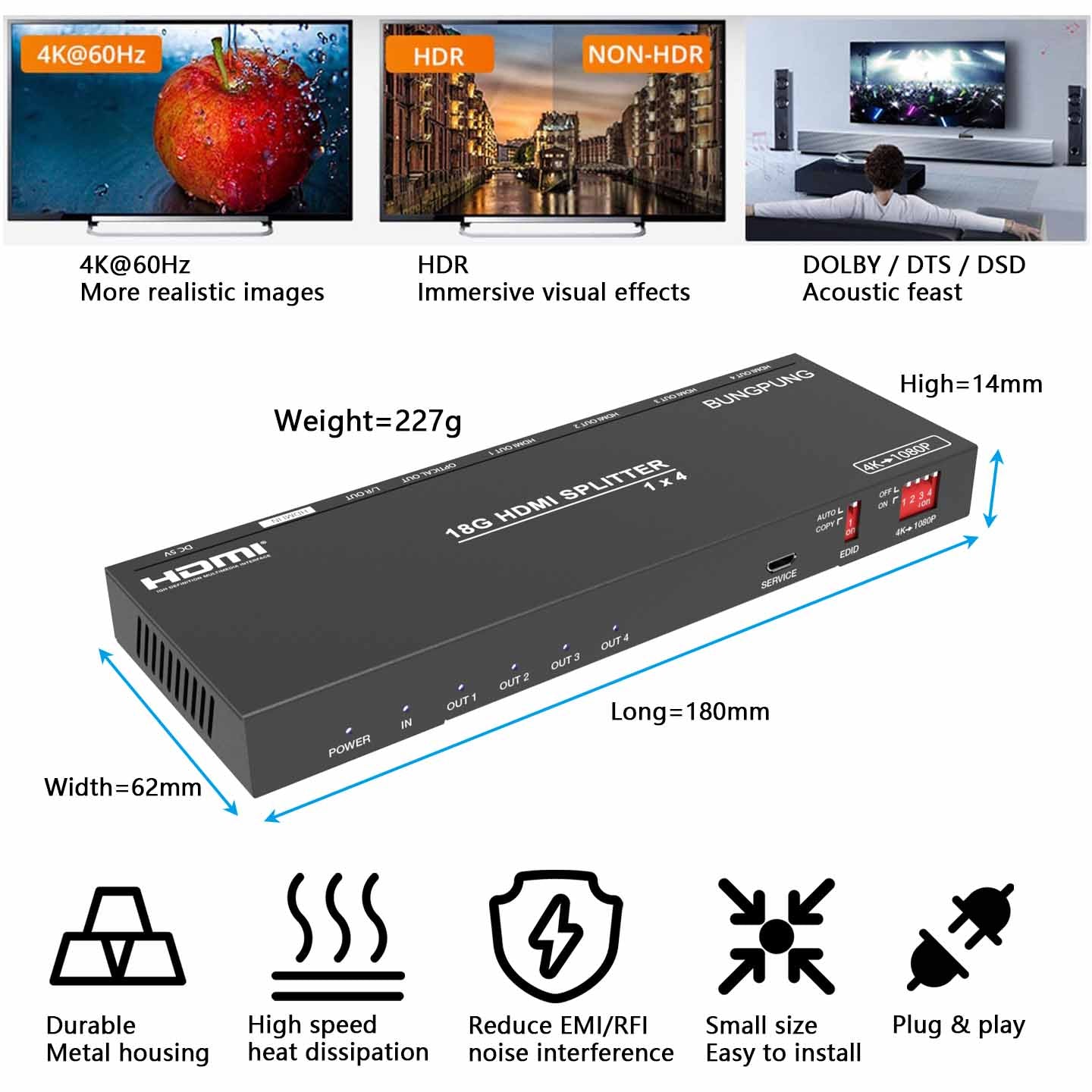

Dimensions 180mm(W)×62mm(D)×14mm(H)
Weight 227g
Power Supply Input: AC100~240V 50/60Hz, Output: DC5V/1A
(US/EU standards, CE/FCC/UL certified)
Power Consumption 3.5W (max)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Package Contents

① 1* 1×4 HDMI 2.0 Splitter

② 1* 5V/1A Power Adapter

③ 1* User Manual
