BUNGPUNG

4K@60Hz 2x1 HDMI KVM Switch Audio Extractor IR RS232 Control-BUNGPUNG

4K@60Hz 2x1 HDMI KVM Switch Audio Extractor IR RS232 Control-BUNGPUNG

Regular price $170.09 USD
Regular price $93.16 USD Sale price $170.09 USD
Sale Sold out
Shipping calculated at checkout.

SKU:HDC-KSWB21H

50 in stock


4K@60Hz 2x1 HDMI KVM Switch Audio Extractor PRODUCT DETAILS

the BUNGPUNG 4K@60Hz 2x1 HDMI KVM Switch is a compact, high quality and reliable solutions for switching of the keyboard, video, and mouse between 2 computers. It supports video resolution up to 4K@60Hz, compatible with HDMI 2.0 HDCP 2.3 HDR.  It can also transmit USB 3.0 signal up to 5Gbps for KVM function. it can Extracts HDMI audio to 3.5mm L/R analog output.

This 2x1 KVM Switcher with hotkey switching.  The switcher features virtual interaction function, so that it can automatically wake up the connected PC that is in standby mode, which can reduce the switching time. It also supports direct switching through buttons on the front panel, IR remote, and hotkey through keyboard/mouse connected to the
special USB port. It provides a wide compatibility choice for different operating
systems, such as Windows, Mac OS and Linux, no driver required and simple plug and play.


Features

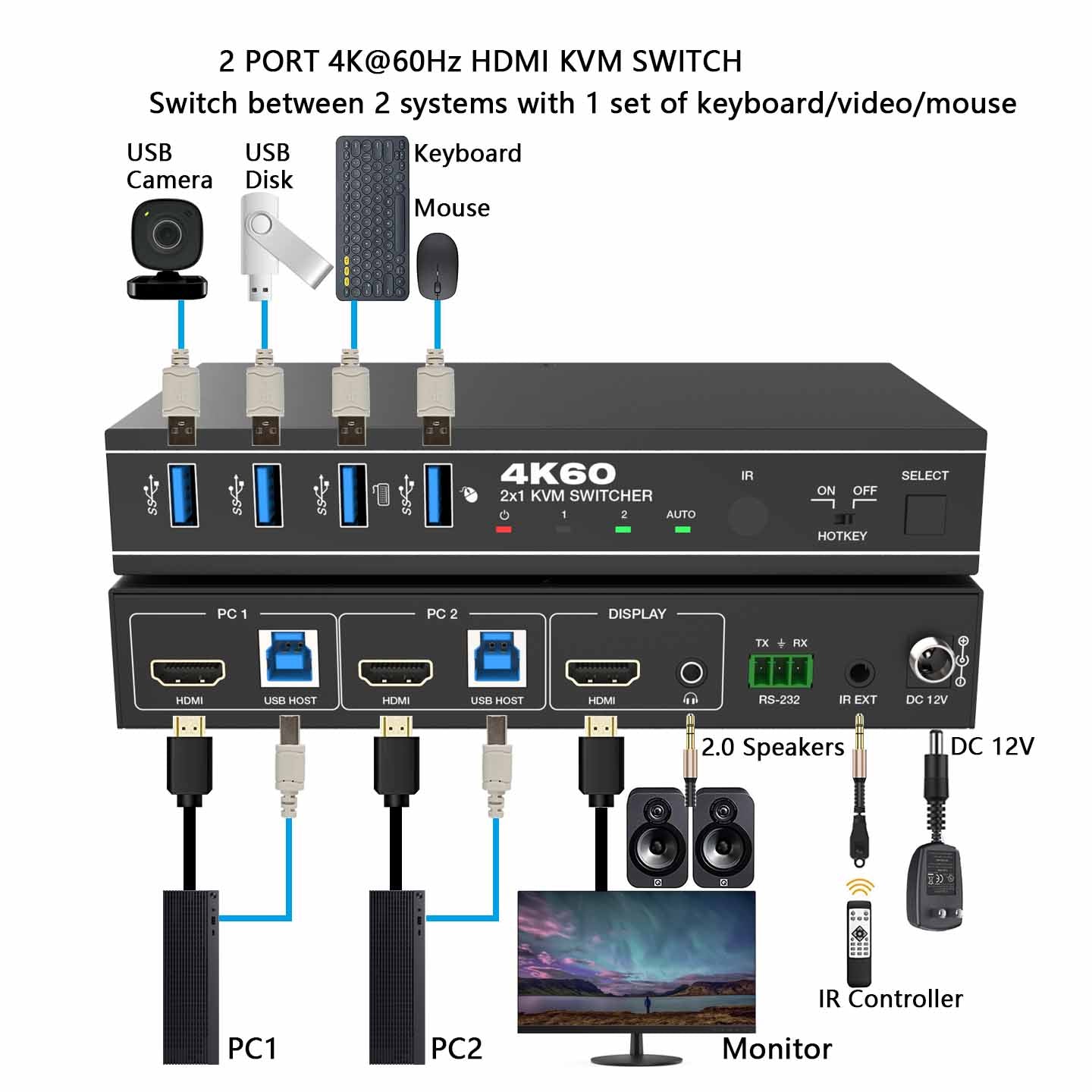

  • 4K@60Hz 2x1 HDMI KVM Switch: it allows for switching of the keyboard, video, and mouse between multiple computers, you can Using only 1 set of keyboard, mouse and monitor to control 2 computers via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232 commands, easy to access. it can Extracts HDMI audio to digital and analog output.
  • 18 Gbps HDMI 2.0 HDCP 2.3 HDR CEC compliant. HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through. Support Ultra-wide Screen, resolution up to 4K@60Hz, 2K@60Hz/144Hz as specified in HDMI 2.0.
  • Support video fast switching, and keyboard/mouse seamless switching, Each input port has an EDID emulator to provide the correct information for the PC.  Support hot plug, disconnect or connect devices to the KVM at any time.
  • Compact size for easy plug & play installation. Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation
  • 1-year warranty for product defects.

Download User Manual

Specifications

Technical



HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.3/1.x

Video Bandwidth

18Gbps

Video Resolution

Up to 4K@60Hz, 2K@60Hz/144Hz

Color Depth

8/10/12bit

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

HDMI Audio Formats

LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos,
DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master
Audio, DTS:X, DSD

L/R Audio Formats

Analog Stereo 2CH

ESD Protection

Human body model—±8kV (Air-gap discharge) &

±4kV (Contact discharge)

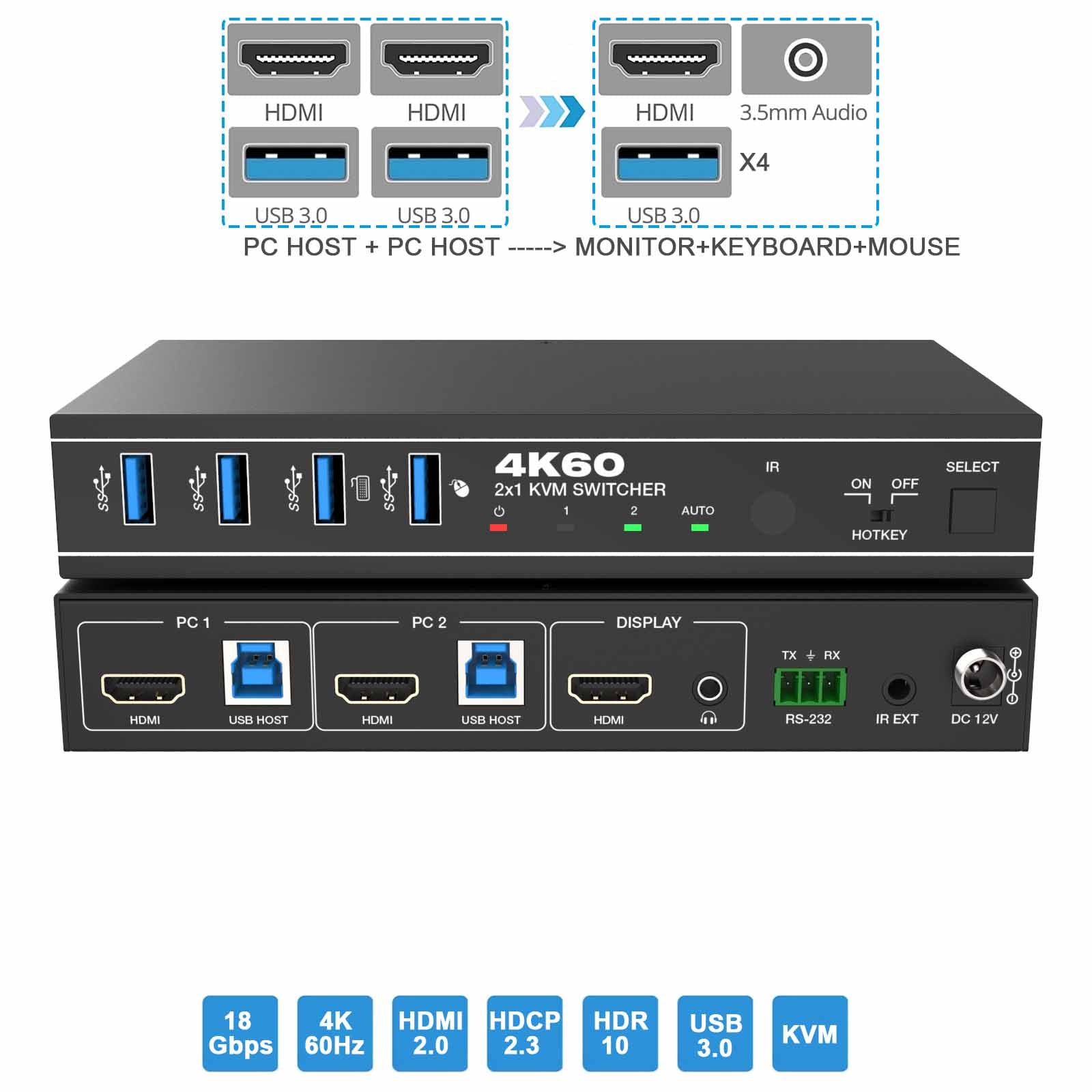

Connection



Input Ports

2 x HDMI input [Type A, 19-pin female]

Output Ports

1 x HDMI output [Type A, 19-pin female]
1 x L/R audio output [3.5mm Stereo Mini-jack]

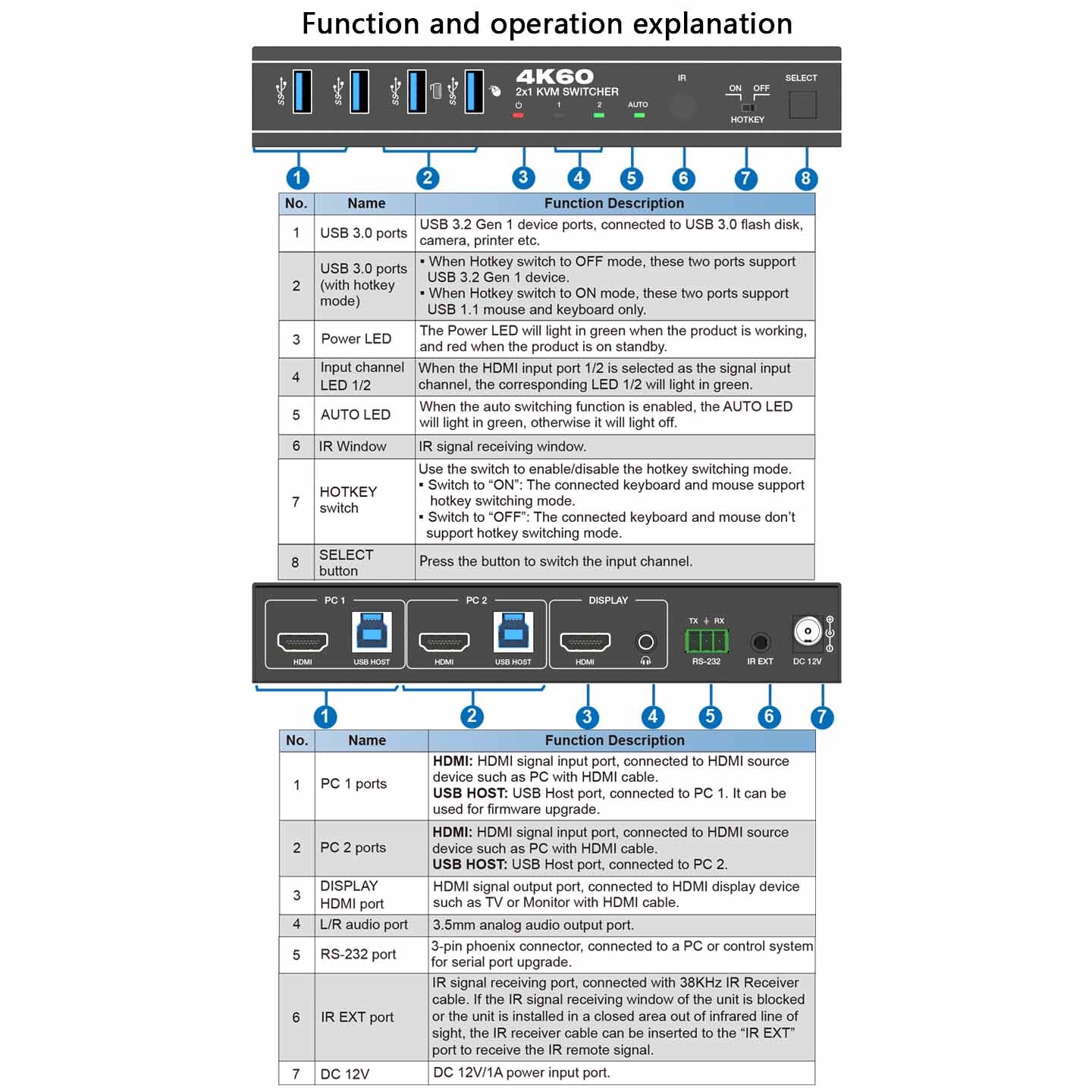

Control ports

1 x RS-232 [3pin-3.81mm phoenix connector]
1 x IR EXT [3.5mm Stereo Mini-jack]
2 x USB HOST [USB Type B]
4 x USB DEVICES [USB Type A]

Mechanical



Housing

Metal Enclosure

Silkscreen Color

Black

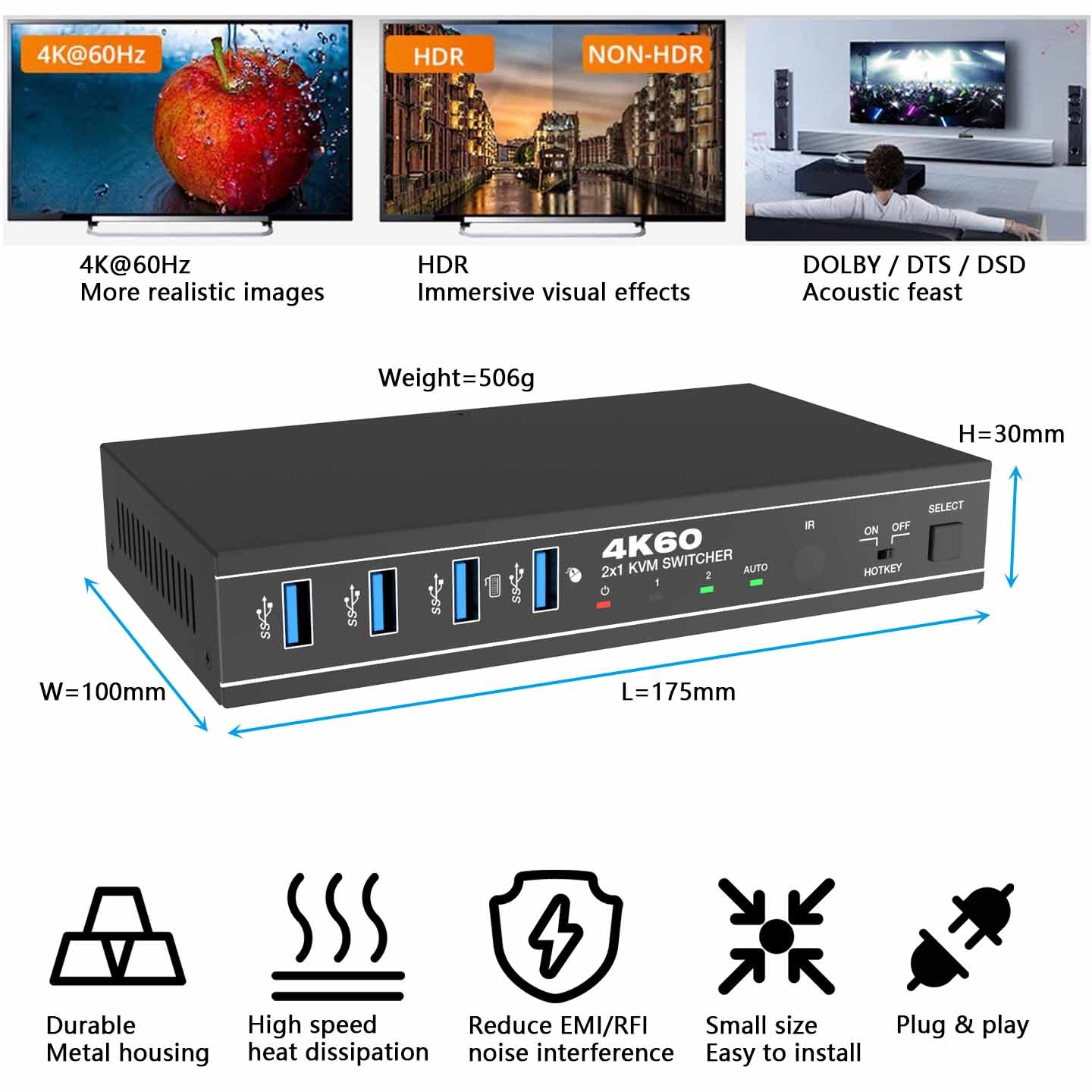

Dimensions

175mm [W] x 100mm [D] x 30mm [H]

Weight

506g

Power Supply



Input: AC 100 - 240V 50/60Hz
Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)

Power Consumption

Typical value: 5.16W  Standby mode: 0.6W

Operation Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)

Package Contents



① 1 x 4K60 2x1 KVM Switcher
② 1 x IR Remote
③ 1 x 3pin-3.81mm Phoenix Connector (male)
④ 1 x Fixed Frequency 38KHz IR Receiver Cable (1.5 meters)
⑤ 2 x USB Cable (USB 3.0, AM to BM, 1.8 meters)
⑥ 2 x HDMI Cable (male to male, 1.5 meters)
⑦ 2 x Mounting Ears
⑧ 4 x Machine Screws (KM3*4)
⑨ 1 x 12V/1A Multinational Locking Power Supply
⑩ 1 x User Manual
