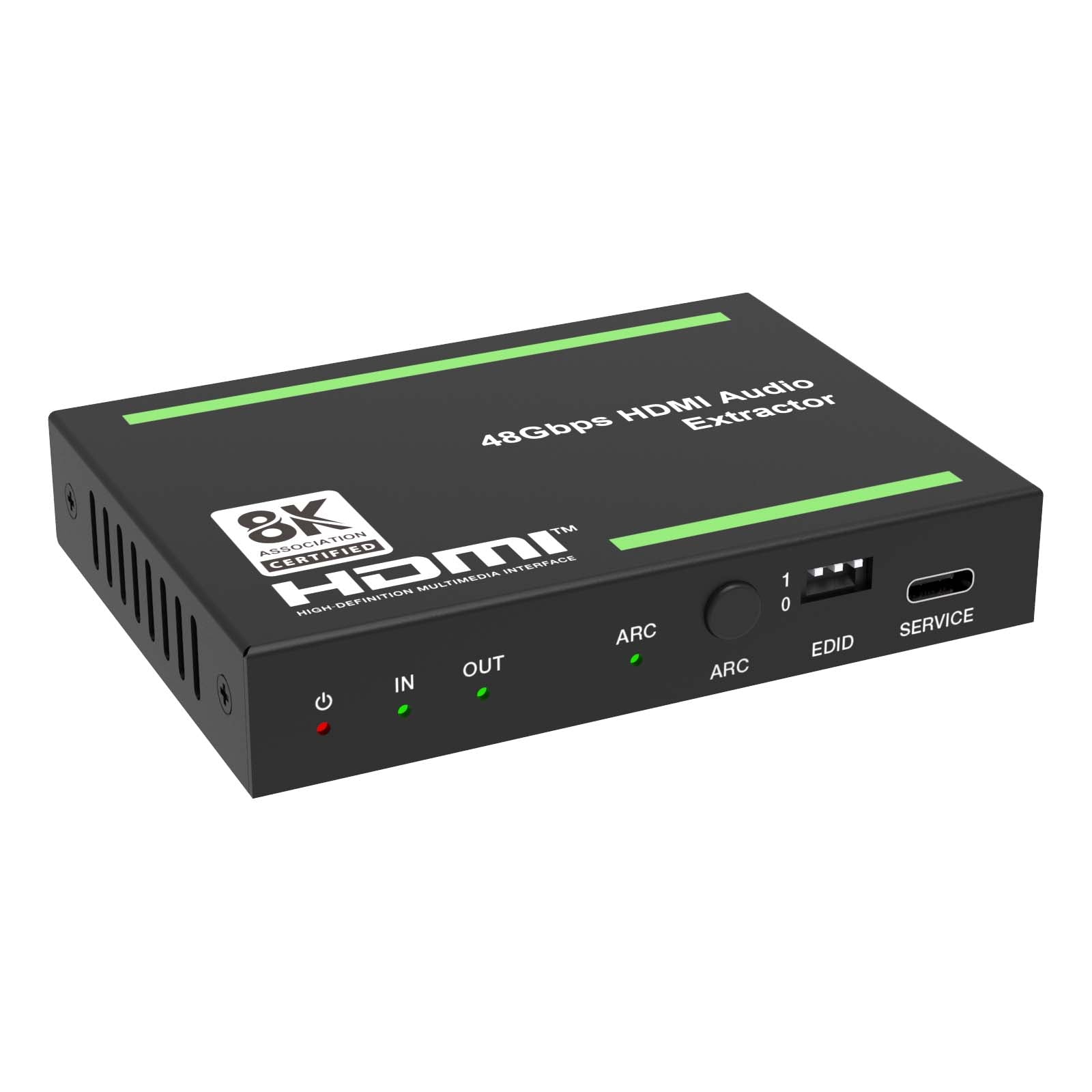

8K HDMI Audio Extractor Digital Analog Audio Output ARC-BUNGPUNG
8K HDMI Audio Extractor Digital Analog Audio Output ARC-BUNGPUNG
SKU:HDC-MC01
50 in stock
Couldn't load pickup availability
8K HDMI Audio Extractor with ARC PRODUCT DETAILS
Features

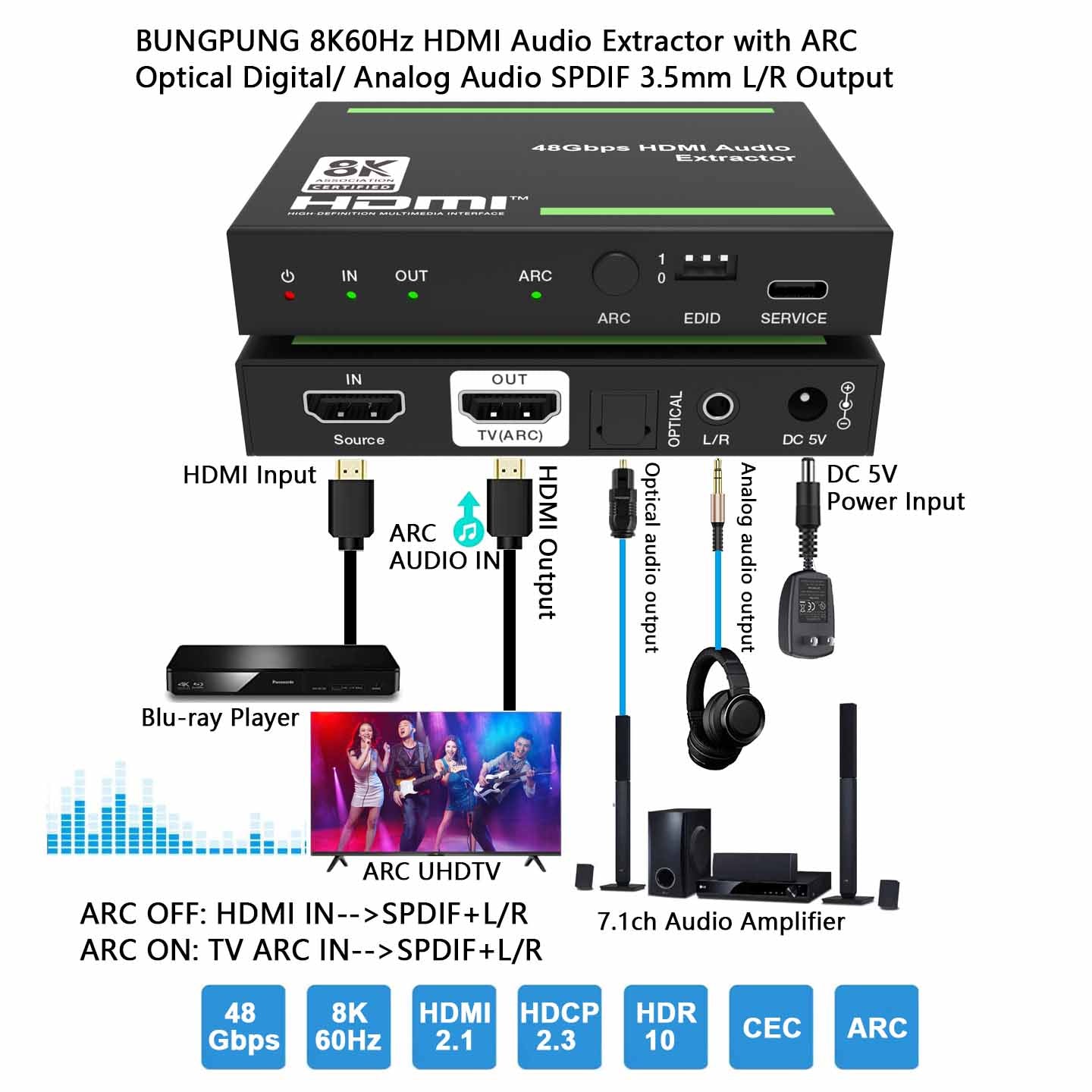

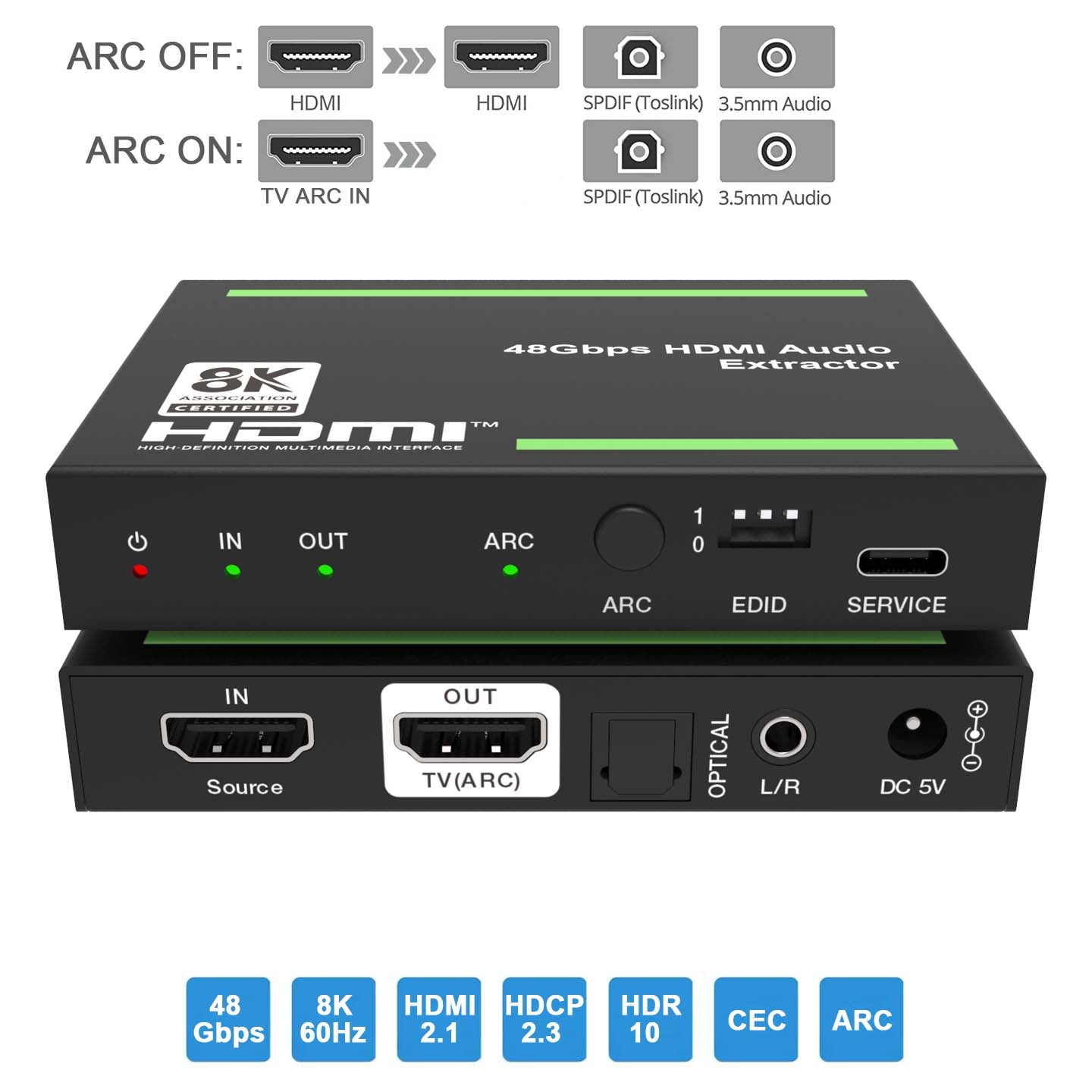

- extract audio signals from an HDMI source or ARC-compatible TV to output analog stereo and digital S/PDIF audio.
- 48Gbps HDMI 2.1, HDCP 2.3 HDR ARC CEC compliant. Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit.
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through

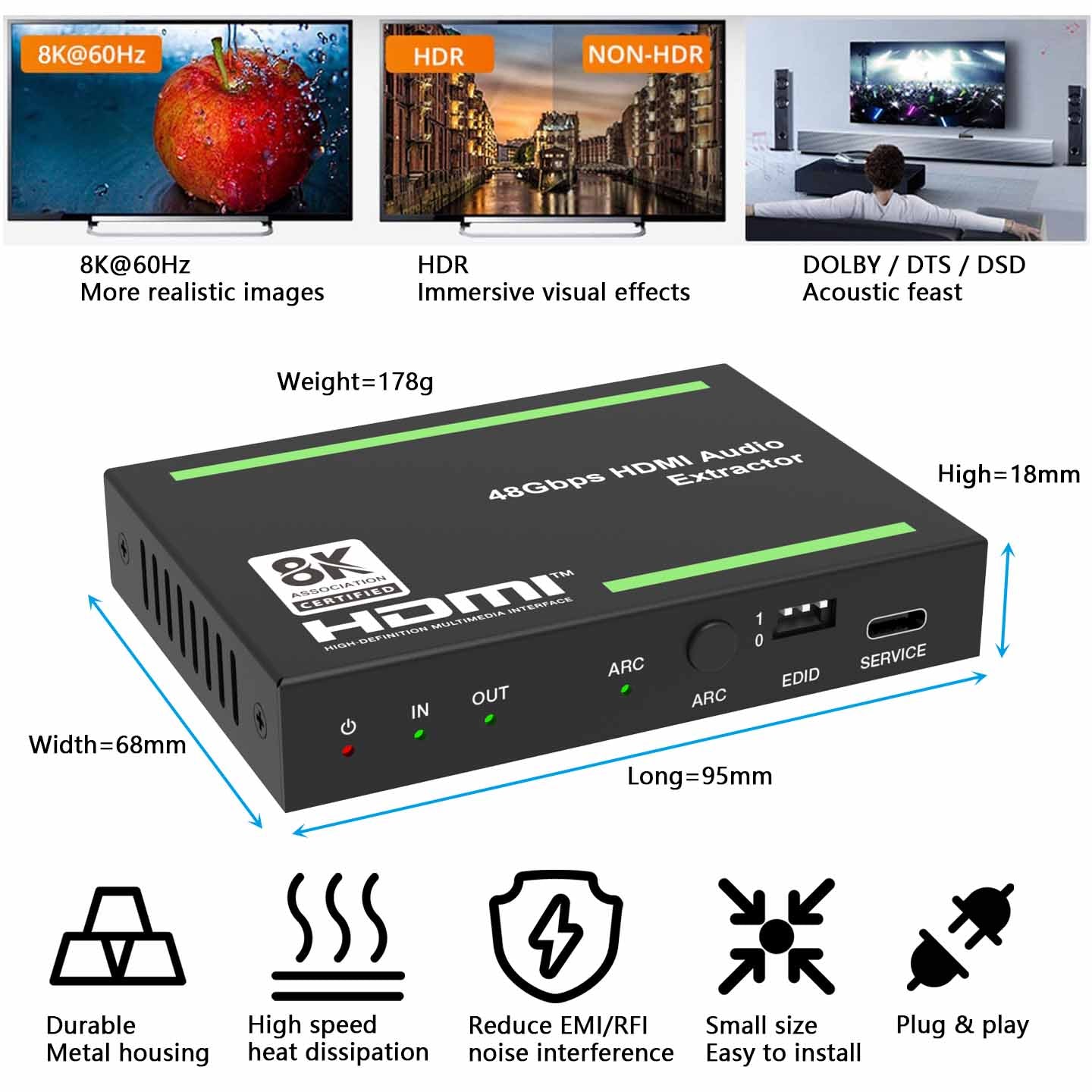

- Compact size and easy plug & play installation.Heavy-duty cool metal enclosure keeps the unit cool by aiding in quick heat absorption and dissipation.
- 1 year warranty for product defects
FAQs
- Does this product can downscale the audio from 5.1ch to 2ch? No, this product doesn't support the feature of downscaling or upscaling the audio signals. Whatever the audio signals that you're inputting, you will get that audio signal as an output.
- What audio format will I get from analog output? You will get Analog Stereo 2CH from the Analog output but it will output audio only when its set to 2.0ch from the input source.
- What is the audio output signal that we can get from this product via optical output? You will be able to get up to LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH.

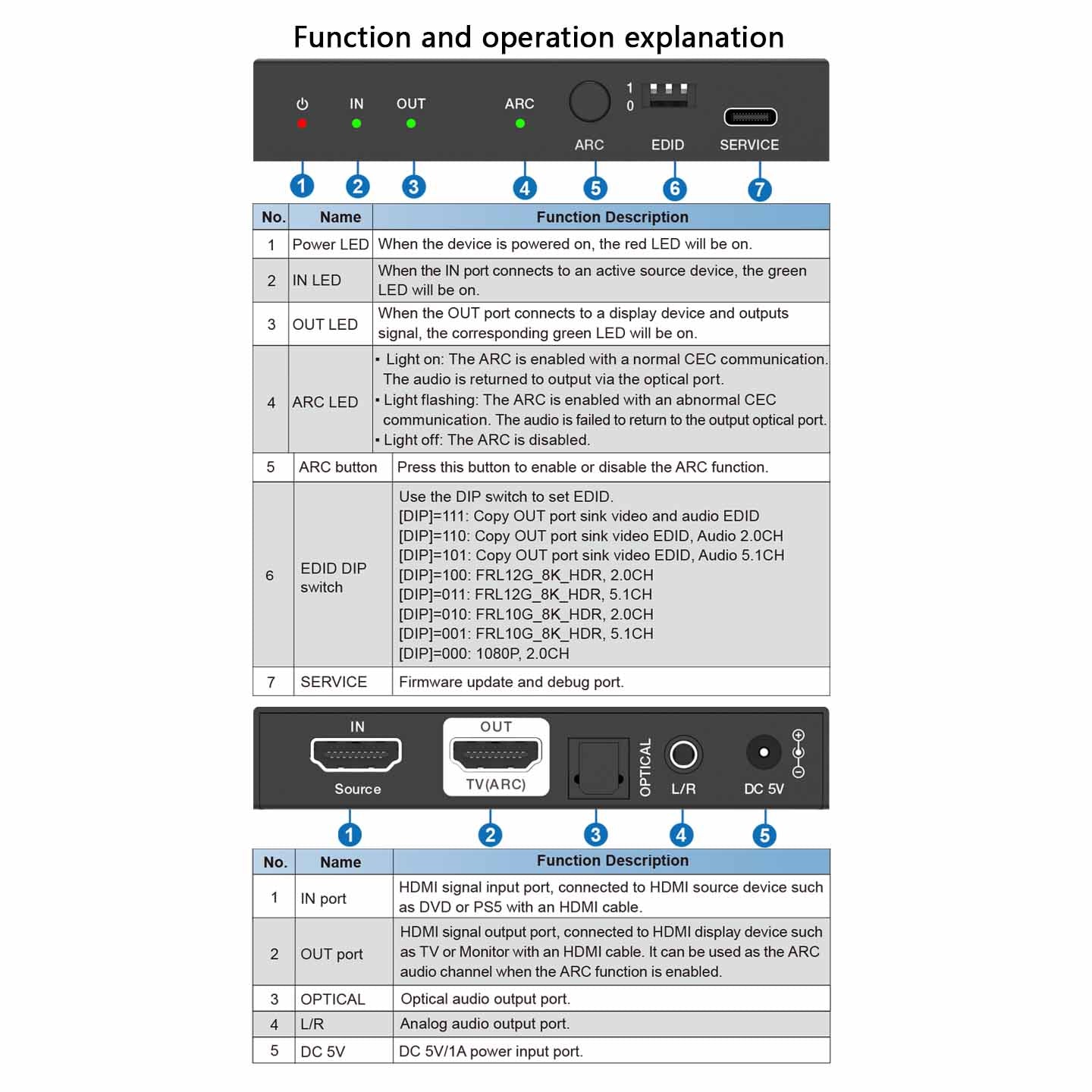

- How to know which EDID switch setting works best for my requirements? Below is the detailed information regarding the different EDID switches & you can set them according to your requirements:
- Can I output Dolby Digital plus or Dolby Atoms via optical output? No, the optical output will only have signal output when its 5.1Ch or lower due to its limitations.
- What is the maximum audio sample rate supported by this product? its audio sampling rate up to 24bit/192 kHz
- When the product separates digital or analog audio, does the HDMI output port keep audio signal pass-through?Yes
- When the product separates digital or analog audio, is the HDMI video signal synchronized with the audio signal? Yes
- Does it support HDMI CEC function? Yes, it Supports CEC pass through
- If I only connect an HDMI source device to the product and not connect a TV, can the audio signal be extracted? Yes
Specifications
|
Technical |
|
|
HDMI Compliance |
HDMI 2.0b |
|
HDCP Compliance |
HDCP 2.2 and HDCP 1.4 |
|
Video Bandwidth |
18Gbps |
|
Video Resolutions |
up to 4K@50/60Hz(YUV4:4:4),4K@30Hz,1080P@120Hz and 1080P3D@60Hz |
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:0 |
|
Color Depth |
10-bit, 12-bit |
|
HDMI Audio Formats (Pass-through) |
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
|
Optical Audio Formats |
LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
|
L/R Audio Formats |
Analog Stereo 2CH |
|
ESD Protection |
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
|
Connections |
|
|
Inputs |
1x HDMI Type A [19-pin female] |
|
Outputs |
1x HDMI Type A [19-pin female] 1x Line out [3.5mm Stereo Mini-jack] 1x Optical out [S/PDIF] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Black |
|
Dimensions |
73.5mm [W] x 60.7mm [D] x 17mm [H] |
|
Weight |
122g |
|
Power Supply |
Input: AC100 - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
|
Power Consumption |
1.25W |
|
Operation Temperature |
32 - 104°F / 0 - 40°C |
|
Storage temperature |
-4 - 140°F / -20 - 60°C |
|
Relative Humidity |
20 - 90% RH (no condensation) |
| Package Contents |
1* HDMI 18Gbps Audio Extractor 1* 5V/1A Power Adapter 1* User Manual |
