HDMI Extender over IP Ethernet CAT5e/6 Cable 1080P 60Hz 150m-BUNGPUNG

HDMI Extender over IP Ethernet CAT5e/6 Cable 1080P 60Hz 150m-BUNGPUNG

Regular price $144.44 USD
Regular price $135.90 USD Sale price $144.44 USD
Sale Sold out
Shipping calculated at checkout.

SKU:HDC-E5200

50 in stock

HDMI Extender over IP Ethernet CAT5e/6 Cable 1080P 60Hz 150m IR transmission-BUNGPUNG

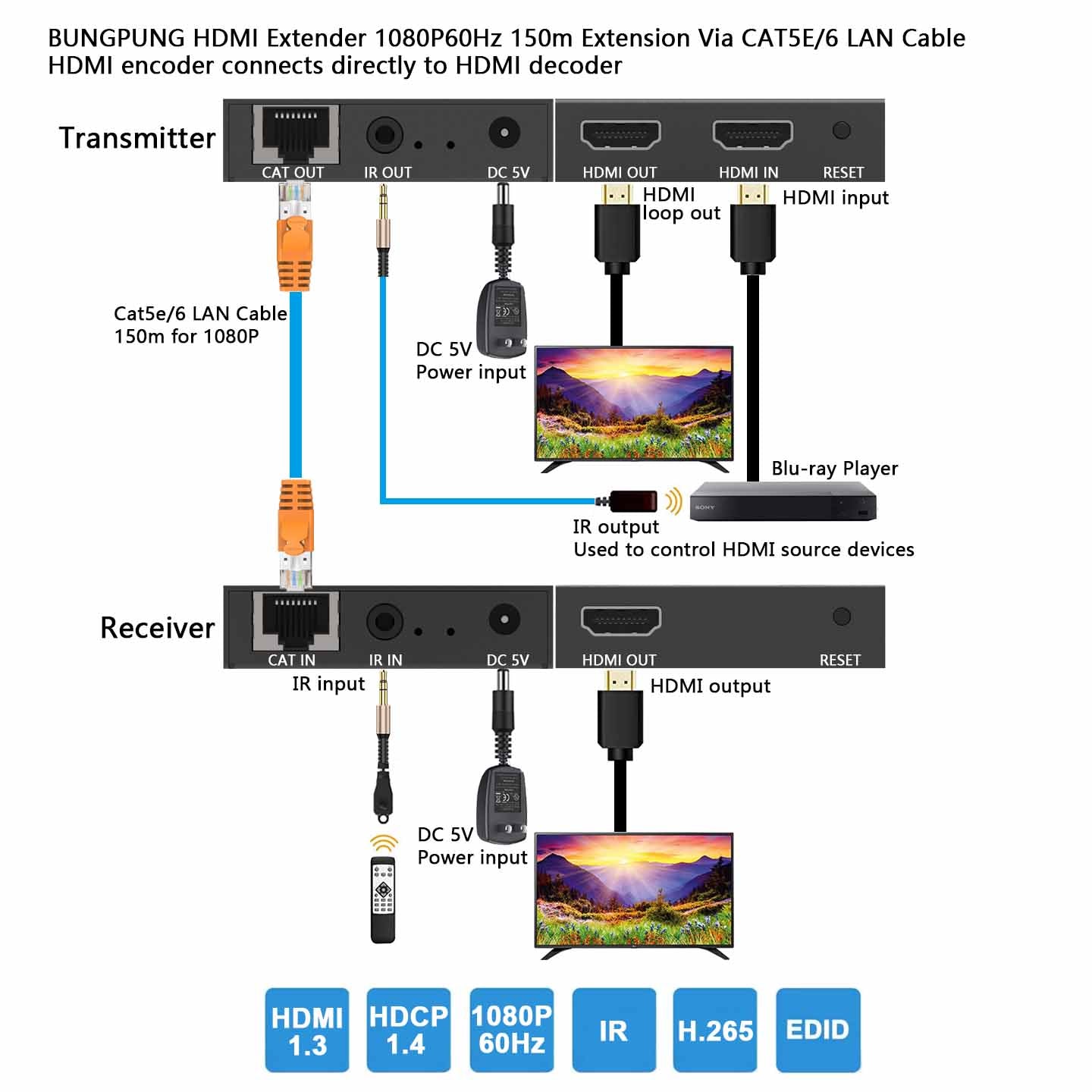

HDMI Extender over IP Ethernet CAT5e/6 Cable 1080P 60Hz 150m connection-BUNGPUNG

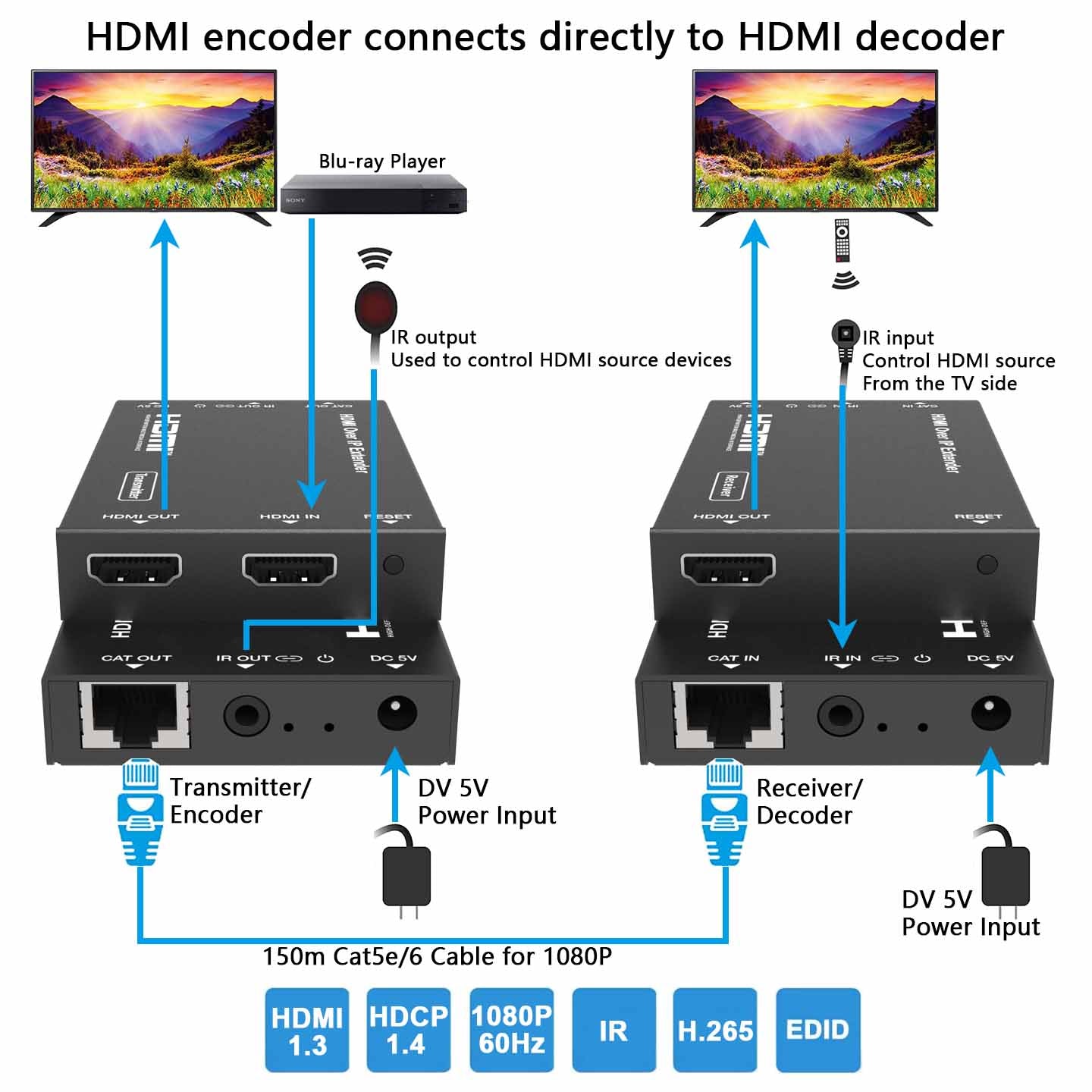

HDMI Extender over IP Ethernet CAT5e/6 Cable 1080P 60Hz 150m application-BUNGPUNG

150m HDMI Extender over IP Ethernet PRODUCT DETAILS

this BUNGPUNG HDMI extender over IP ethernet is a solution for distribution of one HDMI signal to one HDMI display device or to multiple HDMI display devices over a standard network switch, and the transmission distance up to 492ft/150m between encoder and decoder via a CAT5e/6 cable. it also supports one-way IR control signal transmission. It offers configurable high quality, low-bandwidth H.265 compression video, resolution up to 1920x1200@60Hz. It also supports HDMI loop output on transmitter.
the HDMI Extender over IP ethernet includes two units: Encoder and Decoder. the encoder is responsible for obtaining HDMI signals for encoding, transmitting via CAT5e/6 cables. It supports HDMI loop output; the decoder is responsible for signal decoding and outputting HDMI signals to HD displays.
It offers the most convenient solution for HDMI extension over a single CAT5e/6 cable and is the perfect solution for any application.

Features

  • 150m HDMI over IP Extender: It can transmit 1080P@60Hz HDMI signal up to 492Feet/150m over CAT5e/6 LAN Cable/IP network. Recommended Shielded Cable for best signal quality. Perfect for home/office for PC, Game Consoles, Blu Ray Players/Media Players, Sky HD box, satellite box, Android box.
  • AV over IP solution: HDMI Extender over IP includes two units: Encoder and Decoder. Encoder is responsible for obtaining HDMI signals for encoding, transmitting via CAT5e/6 cables. Decoder is responsible for signal decoding and outputting HDMI signals to HD displays.It offers the most convenient solution for HDMI extension over a single CAT5e/6 cable. it Adopt standard H.265 encoding / decoding. Support standard IP swticher / router / hub.

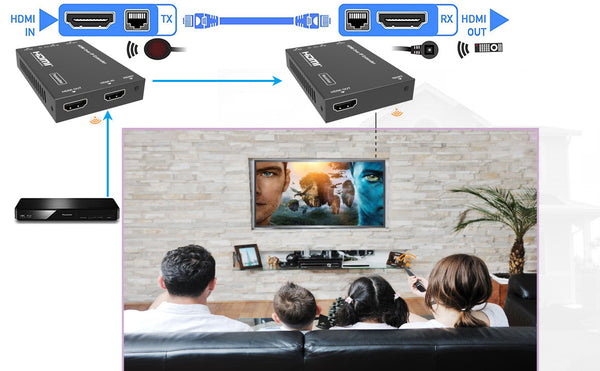

  • One-way IR Transmission: it allows using IR remote Control the HDMI source device from the display/TV side.
  • plug and play installation: no driver required. surface mountable metal housing allows easy placement; sturdy metal body provides durability and minimizes EMI/RFI noise interference. FCC, CE & ROHS compliant
  • 1 year warranty for product defects

FQAs

  1. Can I extend beyond the mentioned distance? Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT5e/6 cable.
  2. Can I input the output of this product to another extender similar to daisy chain method? Yes, you can implement the daisy chain method. This extender can be cascaded to another extender.
  3. What types of HDMI & CAT cables should I use with this product? We strongly recommend you to use Premium High Speed HDMI cables & shielded CAT5e/6 cables.
  4. What is the maximum length of HDMI input and output cables? You can use Premium High Speed HDMI cables up to 10m for 1080P60Hz.
  5. How far does this product can extend between HDMI source and display? it can extend the transmission distance up to 150m/492ft for 1080P60Hz when using with a CAT5e/6 cable.
  6. Does this unit work with cat5e cable? if you can not get signal on display, The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
  7. How to know if the extender is broken? If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be broken.
  8. Does this product support IR frequency or FR frequency? Our all the extenders support IR Frequency from 20Hz to 60KHz.
  9. How to connect the IR Blaster & IR receiver? The IR Blaster should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in port on the Receiver.
  10. What is a HDMI over IP extender? HDMI over IP extenders are devices that enable the transmission of HDMI video and audio signals over an IP network. They allow users to distribute high-definition audio and video content from a source device (such as a computer, Blu-ray player, or set-top box) to multiple remote display devices located in different areas.

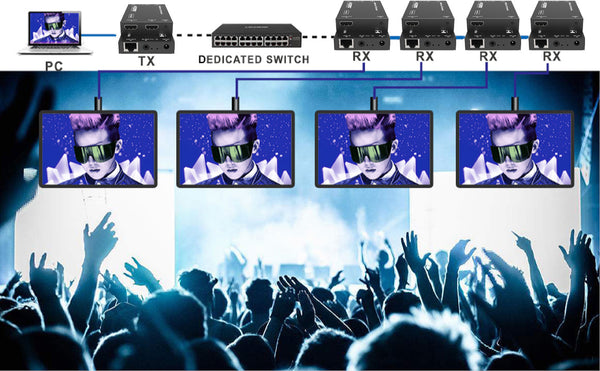

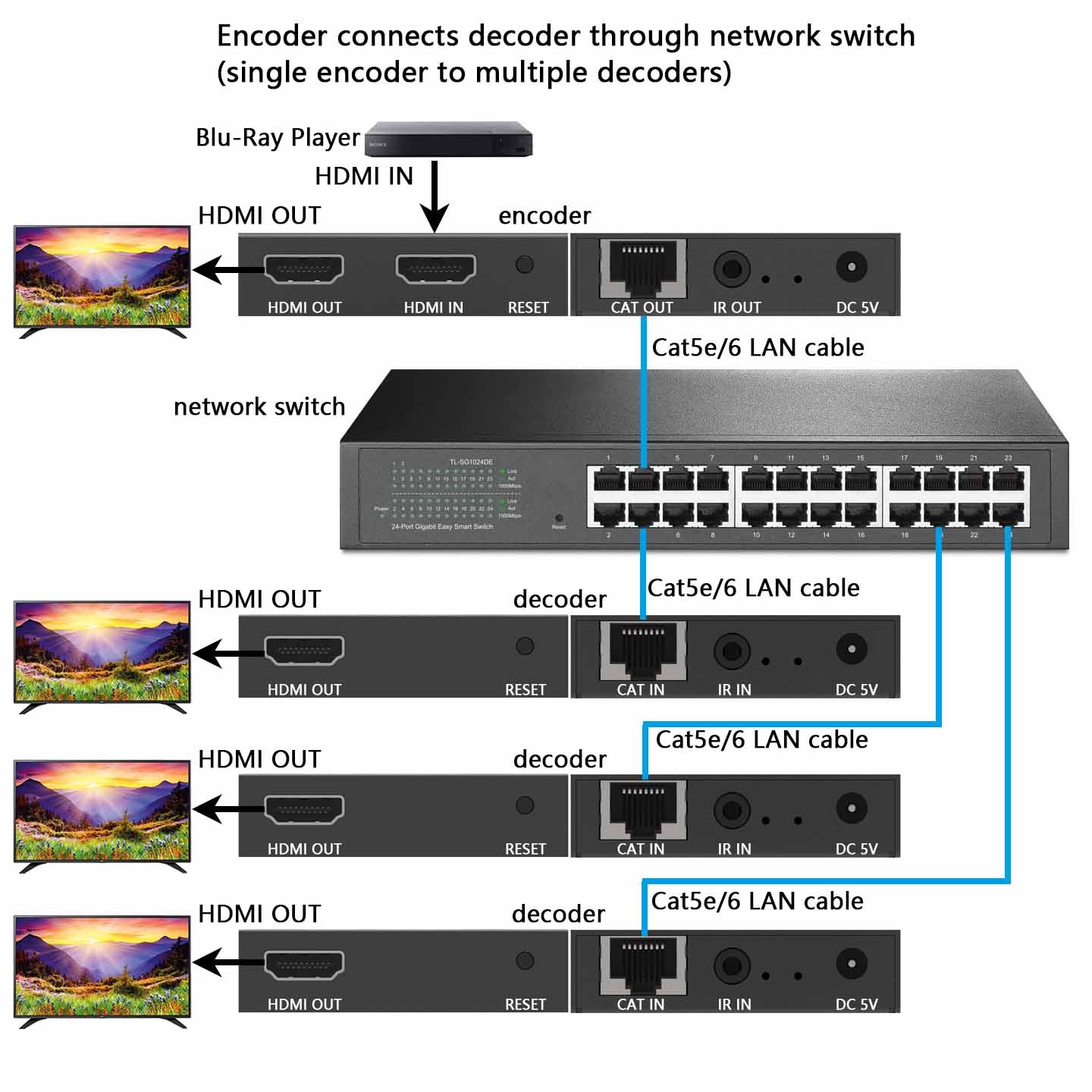

  11. How many additional receivers/decoders I can connect with this extender via a network switch? You can connect up to 253 additional receivers/decoders with this device using a network switch as a mediator.

 Download User Manual

Specifications

Technical
HDMI Compliance HDMI 1.3
HDCP Compliance HDCP 1.4
Video Bandwidth 6.75Gbps
Video Resolution 640x480@60Hz~1920x1200@60Hz
HDMI Audio Formats LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz
IR Frequency 20Hz ~ 60KHz
Compression Technology H.265
Request for Switcher/Router Support IGMP, Support DHCP
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 8-bit
ESD Protection Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge)

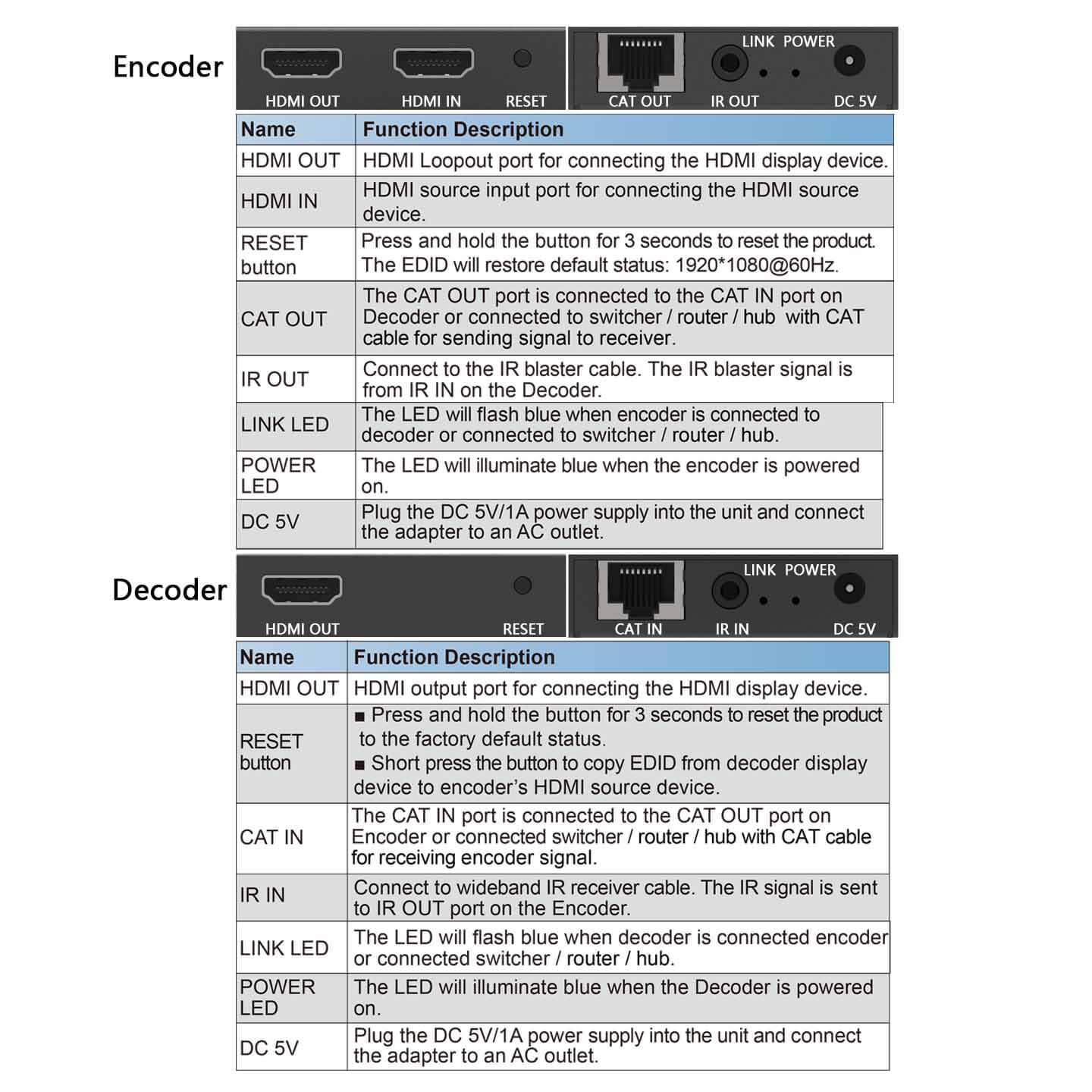

Connection
Encoder Input: 1×HDMI IN [Type A 19-pin female]
Output: 1×HDMI OUT [Type A 19-pin female]
1×CAT OUT [RJ45 connector]
Control:1×IR OUT [3.5mm Stereo Mini-jack]
Decoder Input:    1×CAT IN [RJ45 connector]
Output: 1×HDMI OUT [Type A 19-pin female]
Control:1×IR IN [3.5mm Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Color Black

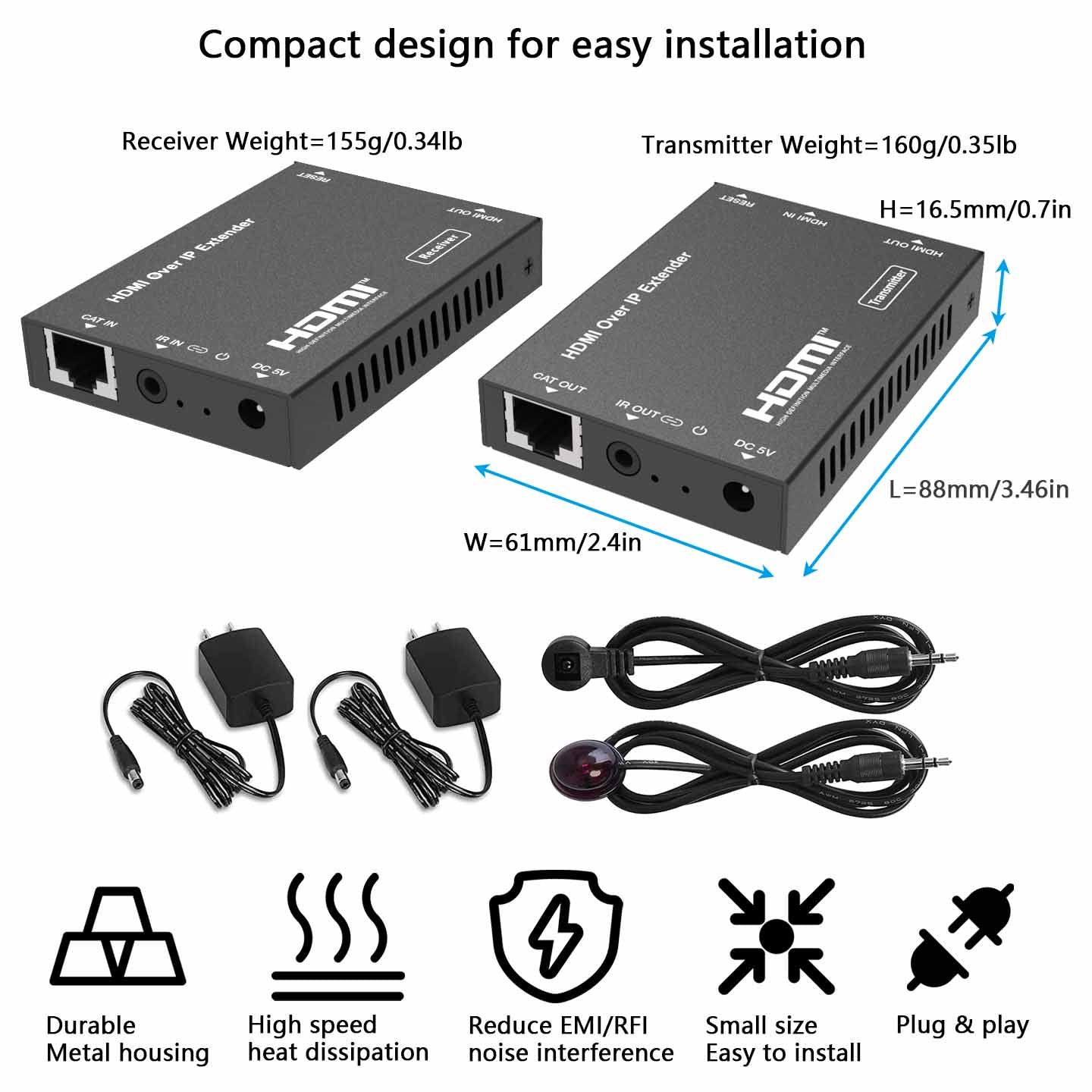

Dimensions 88mm (W) × 61.2mm (D) × 16.5mm (H)
Weight Encoder: 158g, Decoder: 155g
Power Supply Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption Encoder: 2.55W, Decoder: 3.7W
Operation Temperature -10°C ~ 50°C / 14°F ~ 122°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Resolution / Distance 1920x1200@60Hz - Feet / Meter
CAT 5e/6 cable 492ft / 150 meters
Resolution /Cable length 1920x1200@60Hz - Feet / Meter
HDMI IN / OUT 50ft / 15 meters

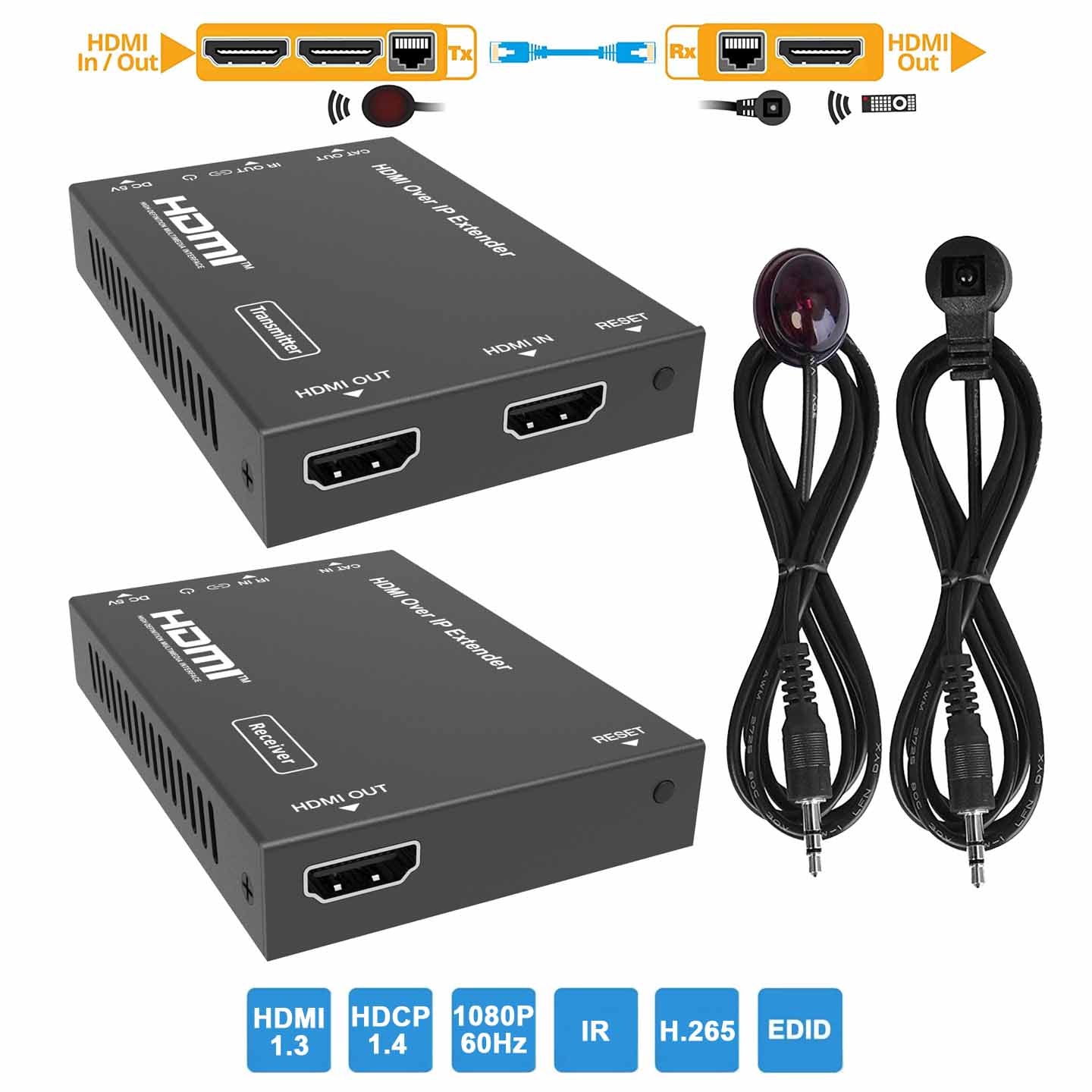

Package Contents ① 1× HDMI over IP Extender (Encoder)
② 1× HDMI over IP Extender (Decoder)
③ 1× IR Blaster cable (1.5 meters)
④ 1× 20~60KHz IR Receiver cable (1.5 meters)
⑤ 2× 5V/1A Power Adapters
⑥ 1× User Manual
