HDMI Multiviewer 2x1 1080P 60Hz PIP POP 4 display modes-BUNGPUNG

HDMI Multiviewer 2x1 1080P 60Hz PIP POP 4 display modes-BUNGPUNG

Regular price $118.80 USD
Regular price $144.44 USD Sale price $118.80 USD
Sale Sold out
Shipping calculated at checkout.

SKU:HDS-821PR

44 in stock

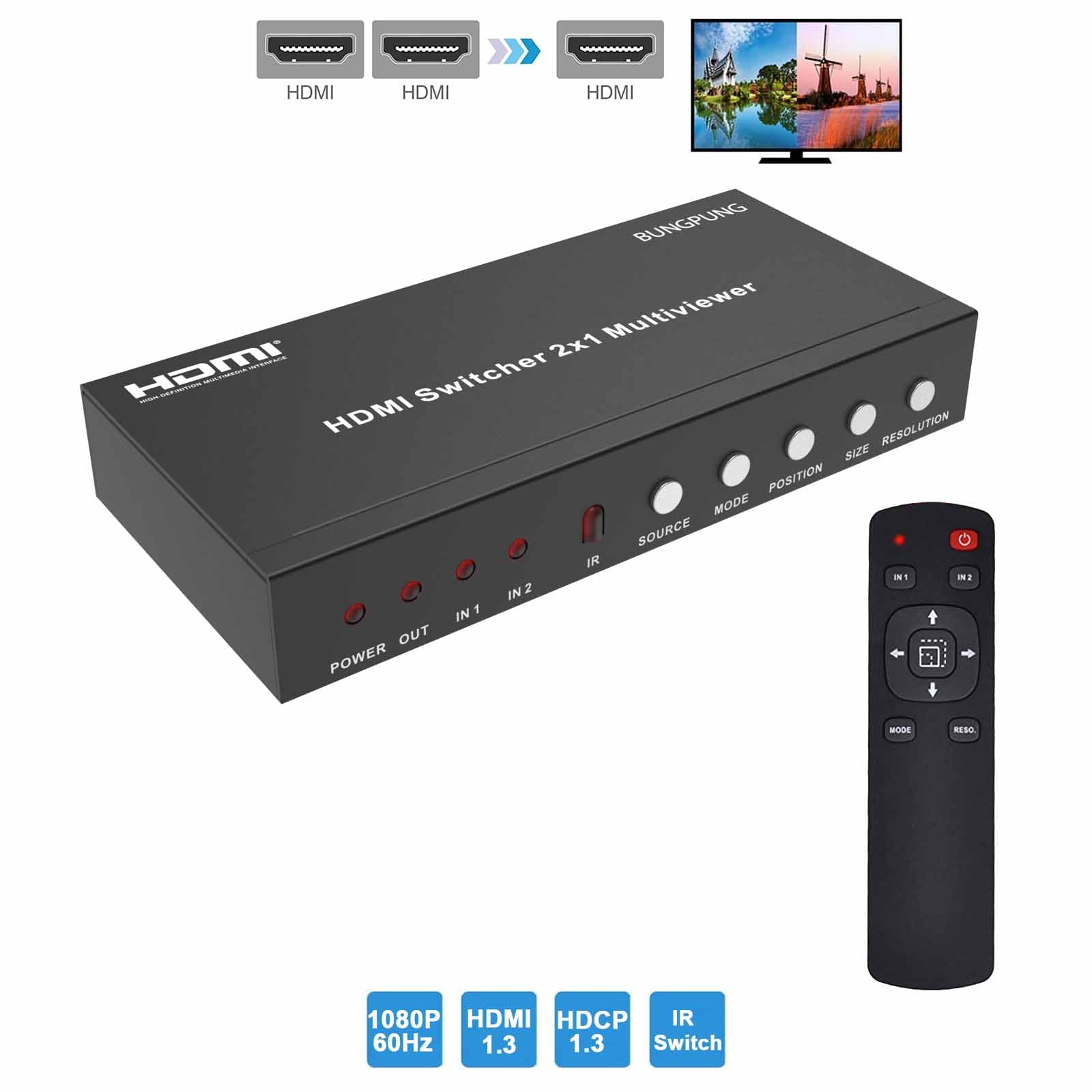

HDMI Multiviewer 2x1 1080P 60Hz PIP POP 4 display modes-BUNGPUNG

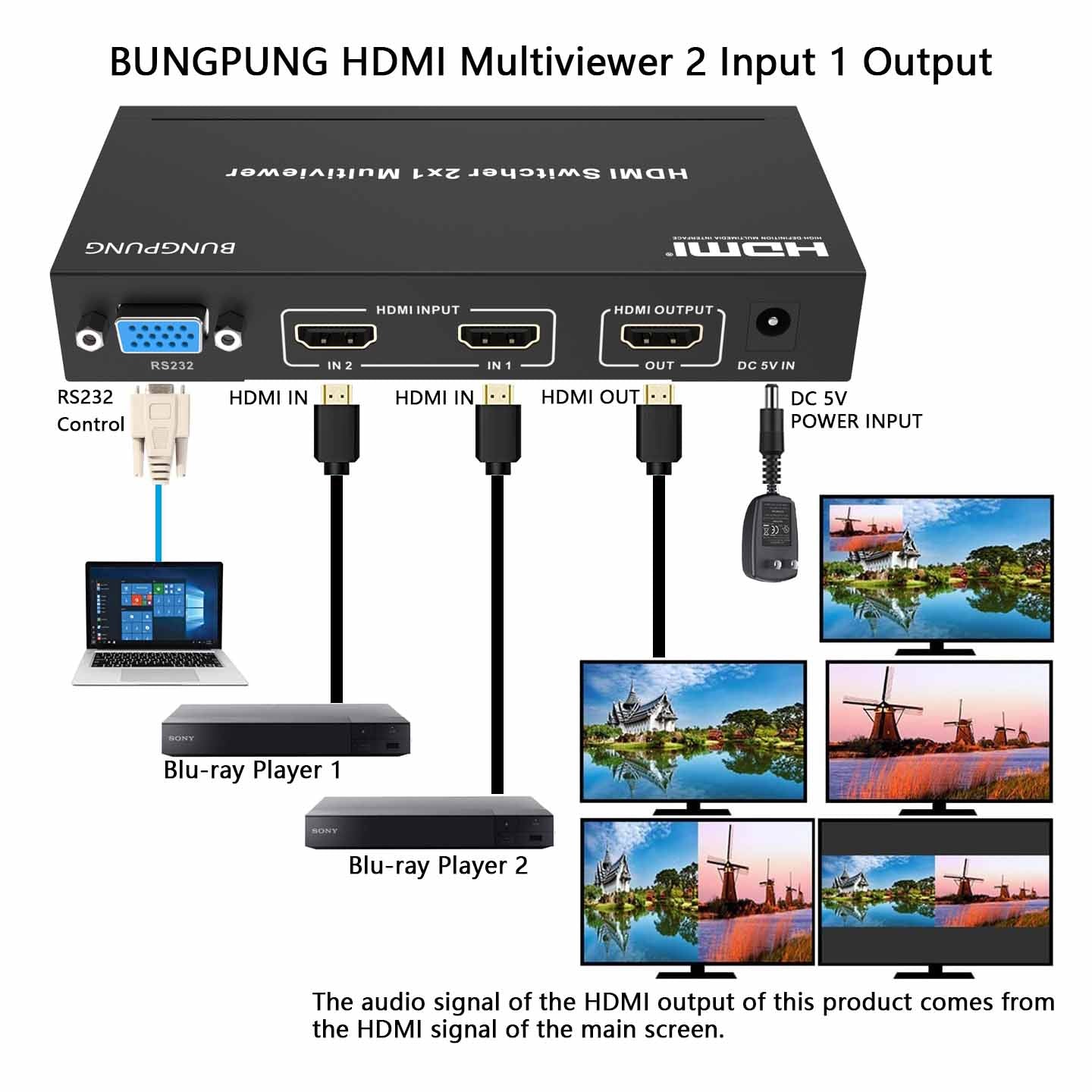

HDMI Multiviewer 2x1 1080P 60Hz PIP POP 4 display modes connection-BUNGPUNG
HDMI Multiviewer 2x1 1080P 60Hz PIP POP 4 display modes application-BUNGPUNG

HDMI Multiviewer 2x1 1080P 60Hz PRODUCT RETAILS

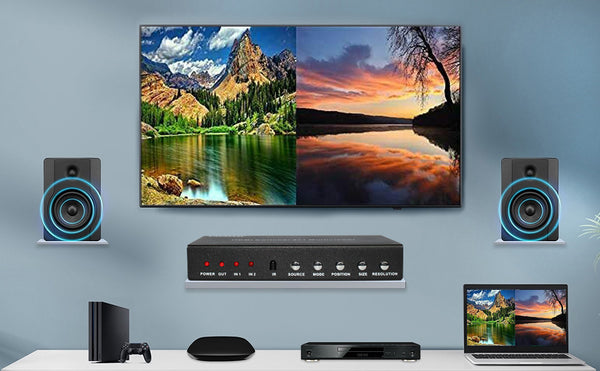

the BUNGPUNG HDMI multiviewer 2x1 is a reliable solution for connecting 2 HDMI source devices and displays them simultaneously on a single HDMI display. it supports 4 display modes: one-view mode with seamless switching, picture in picture mode, Average division display mode A (full screen), Average division display mode B (center).
Supports up to 1080p60hz video resolution, Compliant with HDMI 1.3a, HDCP 1.2. Support multiple video resolution for HDMI output. the audio signal of the HDMI output comes from the main image HDMI signal. it provides simple control options via an included IR remote and panel buttons.

the HDMI multiviewer are widely used in radio and television, multimedia meeting rooms, education and command and control centers. These devices are also perfect for corporate, government markets where signal management and multiview of high-resolution video signals are crucial.

Features

  • Advanced Picture in Picture- This feature allows  two 1080P HDMI sources display on a single screen. Perfect for viewing two different source on a single screen. It has side by side option and Picture in Picture option.
  • Professional Quality Picture - With high quality chipset built in this switcher will deliver with maximum picture quality and sound with no signal loss.
  • HDMI 1.3a, HDCP 1.2 compliant - Video Support: 1080i, 1080p, 720p, 1024x768, 1360x768 , Audio format PCM2, 5.1, 7.1 CH, Dolby 5.1, DTS 5.1
  • Compact size for easy plug & play installation. Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation
  • 1-year warranty for product defects.

FQAs

  1. When it connecting HDMI input and output devices, What is the maximum length of HDMI input and output cables? you can use 10m standard HDMI cable for 1080p@60Hz RGB/YCbCr 4:4:4. we recommend to use Premium High Speed HDMI cable.
  2. What is the maximum input and output resolution supported by this product?it Supports video resolution up to 1080P@60Hz with 8 bit RGB/YCBCR 4:4:4. HDMI Input resolution can be recognized automatically, Output resolution can be selected at 1080p, 720p, 1080i, 1024x768, 1360x768 by pressing RESOLUTION button on panel and remote control
  1. What is the transmission distance and angle of the infrared remote control that comes with this product? using the IR remote, the best distance is 0~7m and the best angle is ± 45°.
  2. Can we use HDMI video capture card to capture the output of this product? No. our splitters will not work with HDMI capture cards due to the HDCP encryption on the output.
  1. Which HDMI input source does the audio signal of the HDMI output come from? The audio signal of the HDMI output of this product comes from the HDMI input signal of the main screen.
  2. What audio formats are supported by the HDMI output? PCM2CH/5.1, Dolby 5.1, DTS 5.1

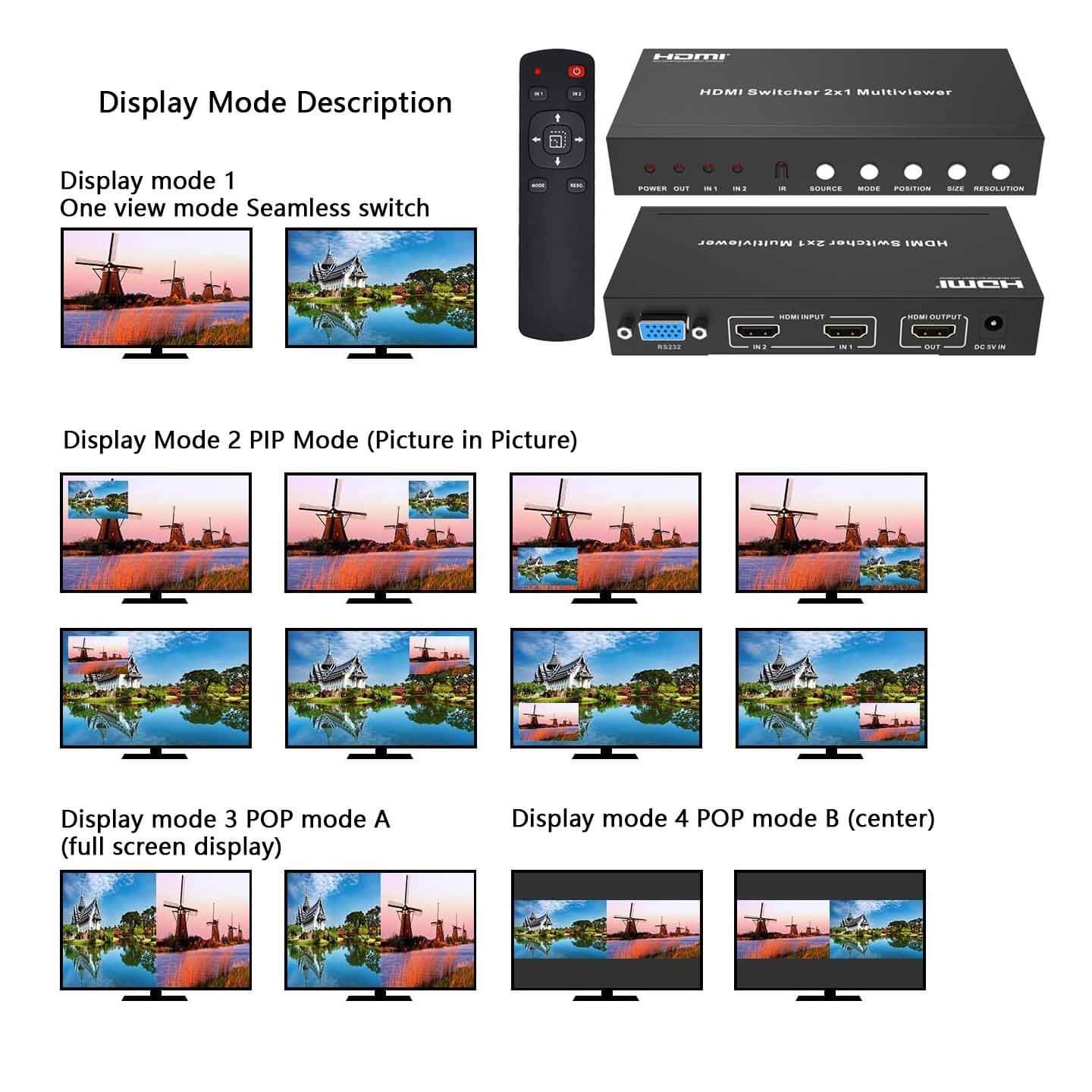

  3. How many display modes does this product support? How do these display modes work? The 2x1 HDMI multiviewer has 4 display modes.

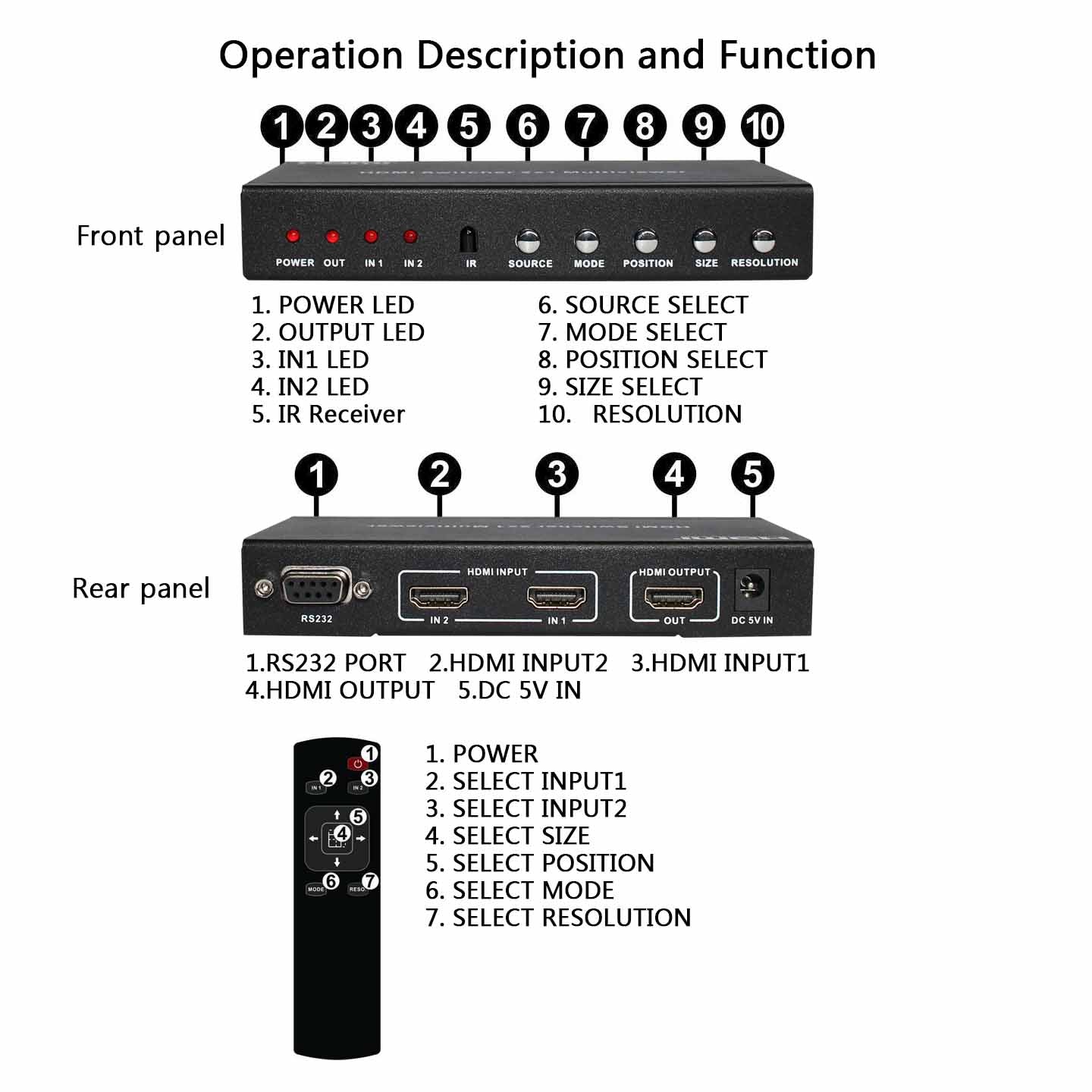

MODE 1: One-view mode.it works as an 2x1 HDMI switch. The device will display 2 HDMI input source separately. you can press the SOURCE button on the panel or the IN1/2 button on the IR remote to select input source, the corresponding panel light will be on.
MODE 2: PIP (picture in picture) mode. you can press the SOURCE button on the panel or the IN1/2 button on the IR remote to select the input source as main image, and the LED will indicates the corresponding input source. Press the POSITION button to select the position of sub image, Press the SIZE button to select the size of sub image.
MODE 3: POP mode A. The device divides 2 inputs with the same size and displays them on 1 full screen. The screen aspect ratio of these 2 windows is 8:9.
MODE 4: POP mode B. The device divides 2 inputs with the same size and displays them on 1 screen. The screen aspect ratio of these 2 windows is 1:1.



Download User Manual

Specifications

Technical

HDMI Version

HDMI 1.3

HDCP Version

HDCP 1.2

Video Bandwidth

225MHz[6.75Gbps]

Input Ports

2 × HDMI (Female type)

Output Ports

1 × HDMI (Female type)

Audio output

PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1

Input Resolution

Up to 1920x1080@60Hz;

Output Resolution

1080p, 720p, 1080i, 1024x768, 1360x768

ESD Protection

Human Body model: ±8 kV (air-gap discharge) & ±4 kV (contact discharge)

Power Supply

5V/1A DC (US/EU standards, CE/FCC/UL certified)

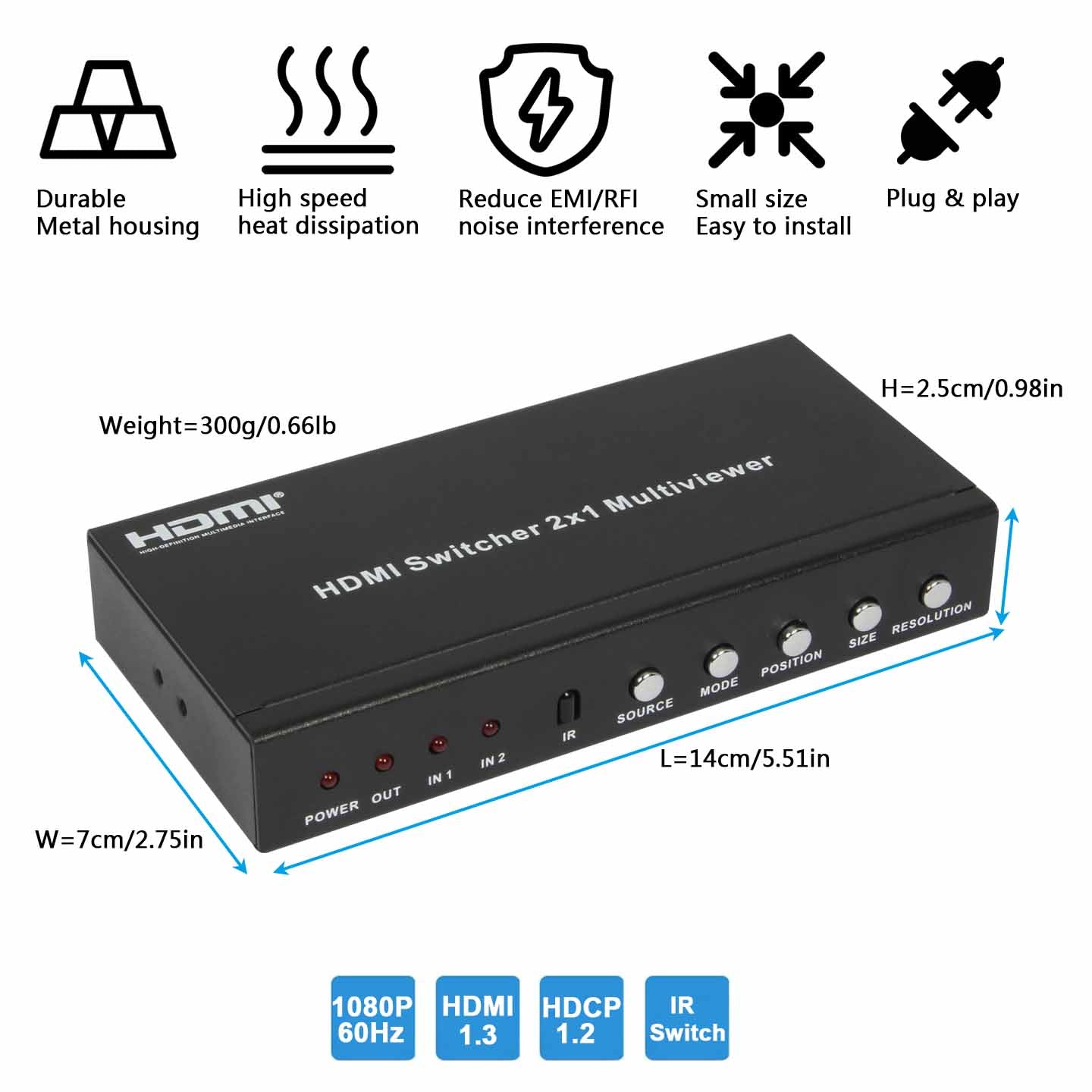

Dimensions

70 mm (W)×140mm (D)×25 mm (H)

Weight

300 g

Chassis Material

Metal

Silkscreen Color

Black

Operating Temperature

0 °C~40 °C/ 32 °F~104 °F

Storage Temperature

−20 °C ~ 60 °C/−4 °F ~140 °F

Relative Humidity

20~90 % RH (non-condensing)

Power Consumption

(Max)10W

Package Contents

HDMI 2x1 Multi-Viewer *1PC,

5V/1A DC Power adapter *1PC,

Remote control*1PC,

Operation Manual *1PC,

Mounting ears*2PCS
