HDMI Multiviewer 4x1 1080P 60Hz PRODUCT DETAILS

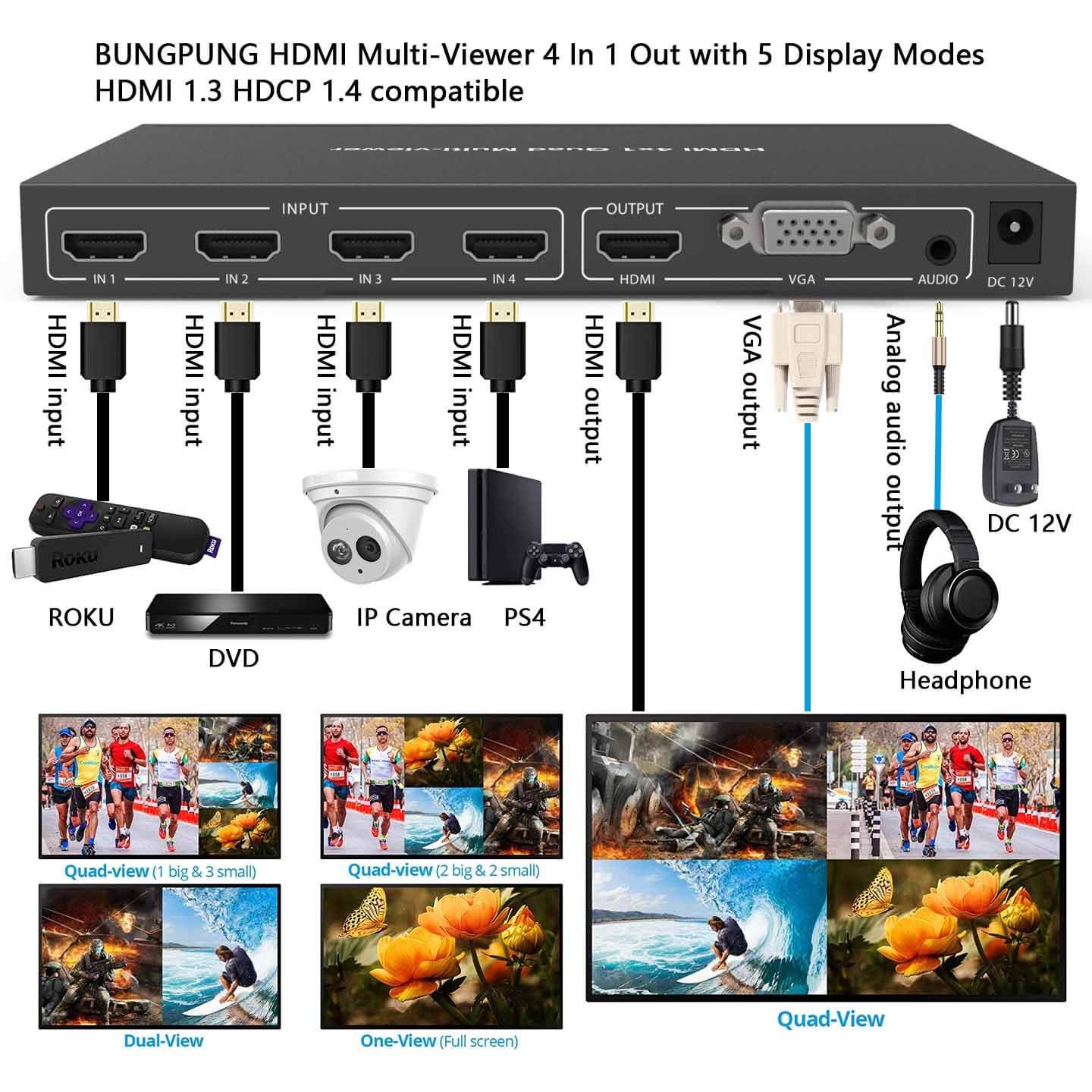

the BUNGPUNG HDMI multiviewer 4x1 is a reliable solution for connecting 4 HDMI source devices and displays them simultaneously on a HDMI display and a VGA display. it supports 5 display modes: one-view mode with seamless switching, 2-screen Average split display mode,  4-screen Average split display mode, and 2 4-screen uneven split display modes.

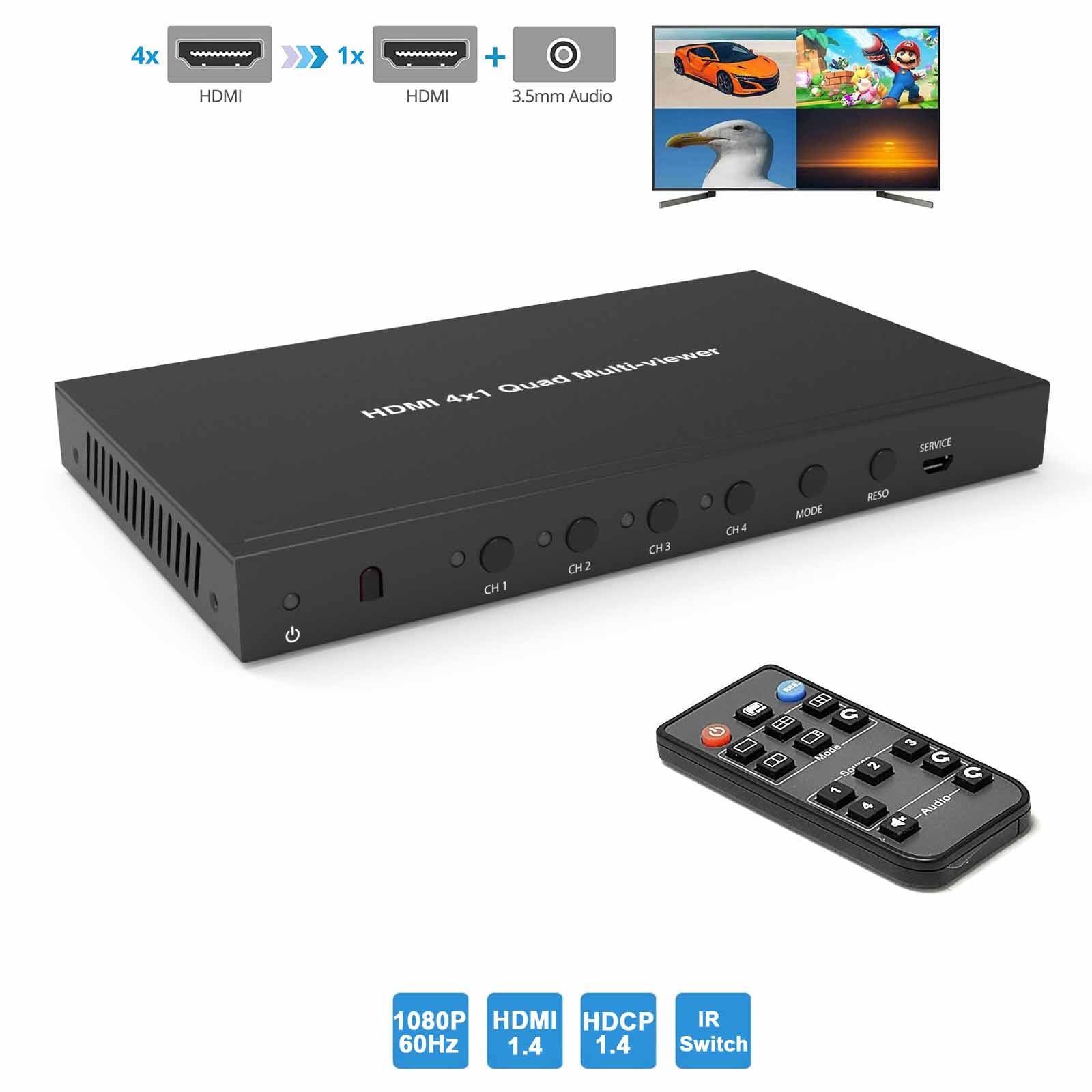

Supports up to 1080p video resolution, Compliant with HDMI 1.4, HDCP 1.4. Support multiple video resolution for HDMI/VGA output. It supports analog audio output which can select from different HDMI input source. it provides simple control options via an included IR remote and panel buttons.

HDMI multiviewer are used in radio and television, multimedia meeting rooms, education and command and control centers. These devices are also perfect for corporate, government markets where signal management and shown together of high-resolution video signals are crucial.

Features

• 4x1 HDMI Multiviewer Switch- Supports 4 1080P HDMI input sources display on a single HDMI Display and VGA display.

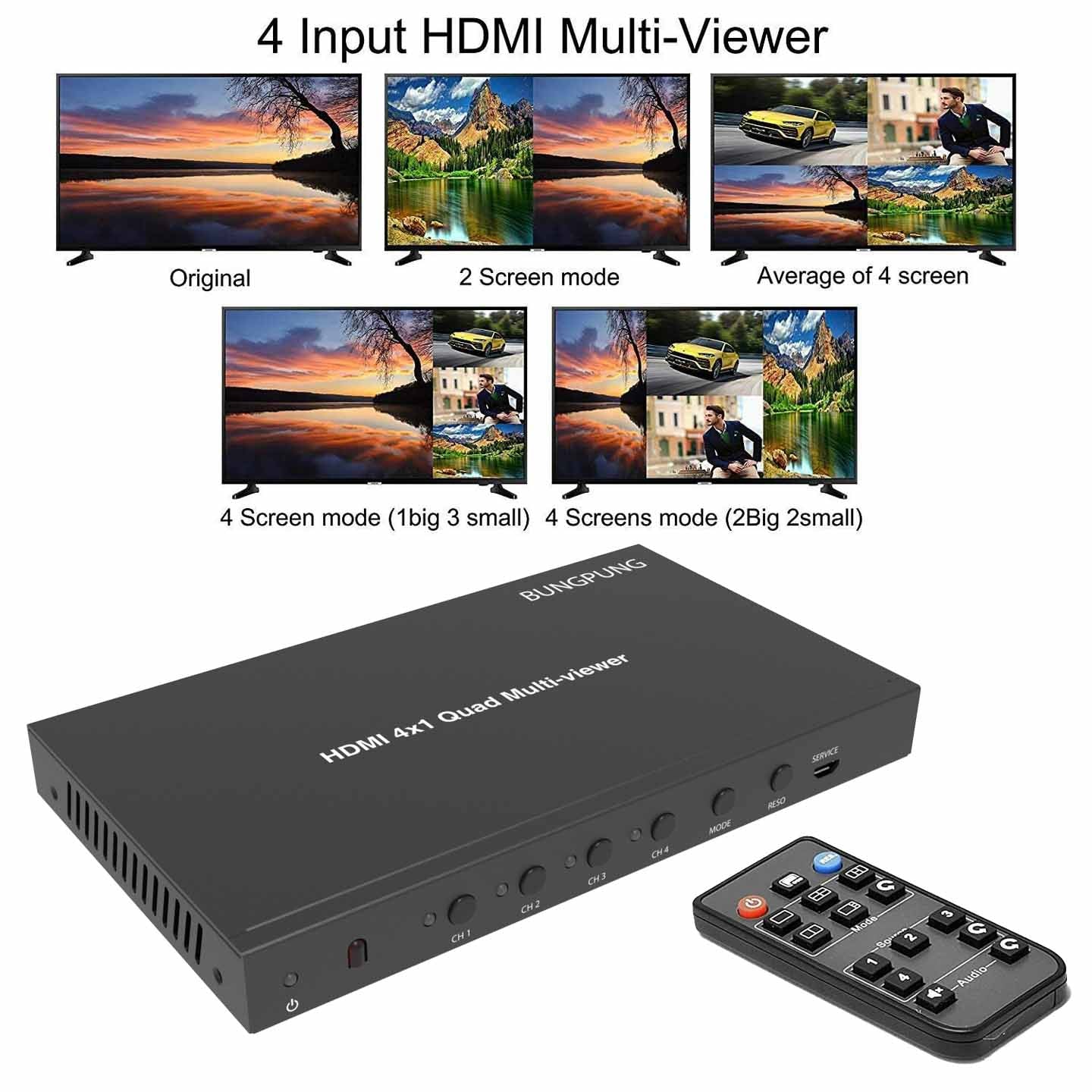

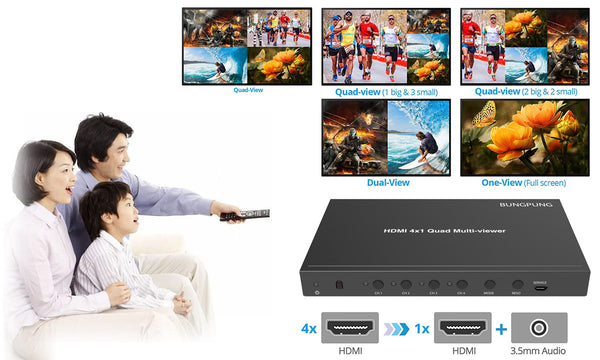

• 5 viewing modes: multiple ways to display your source, allowing you to view single source, 2 sources or all 4 sources at the same time on the screen. Multiple ways to control – Front panel buttons, a remote control.
• Professional Quality Picture - With high quality chipset built in this switcher will deliver with maximum picture quality and sound with no signal loss.

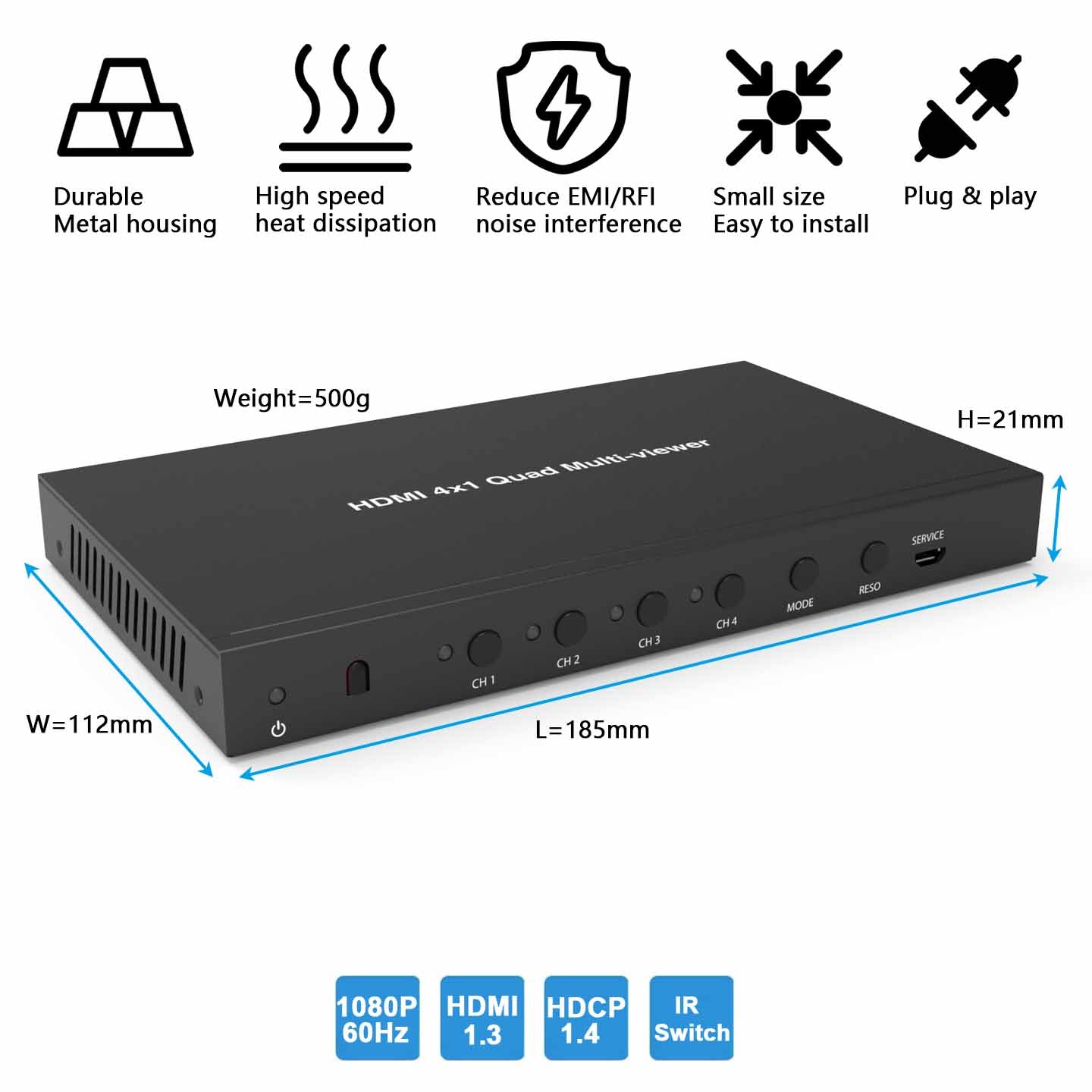

• Compact size for easy plug & play installation. Heavy-duty cool metal enclosure  keeps the unit cool by aiding in quick heat absorption and dissipation
• 1-year warranty for product defects.

FQAs

1. When it connecting HDMI input and output devices, What is the maximum length of HDMI input and output cables? you can use 10m standard HDMI cable for 1080p@60Hz RGB/YCbCr 4:4:4. we recommend to use Premium High Speed HDMI cable.
2. What is the maximum input and output resolution supported by this product?Supports video resolution up to 1080P@60Hz with 8 bit RGB/YCBCR 4:4:4. HDMI Input resolution can be recognized automatically, Output resolution can be selected by panel buttons and remote control

3. What is the transmission distance and angle of the infrared remote control that comes with this product? using the IR remote, the best distance is 0~7m and the best angle is ± 45°.
4. Can we use HDMI video capture card to capture the output of this product?No. our splitters will not work with HDMI capture cards due to the HDCP encryption on the output.

5. Does it support audio extraction?Yes. It Supports analog audio extraction and output LPCM 2CH from HDMI OUT port.

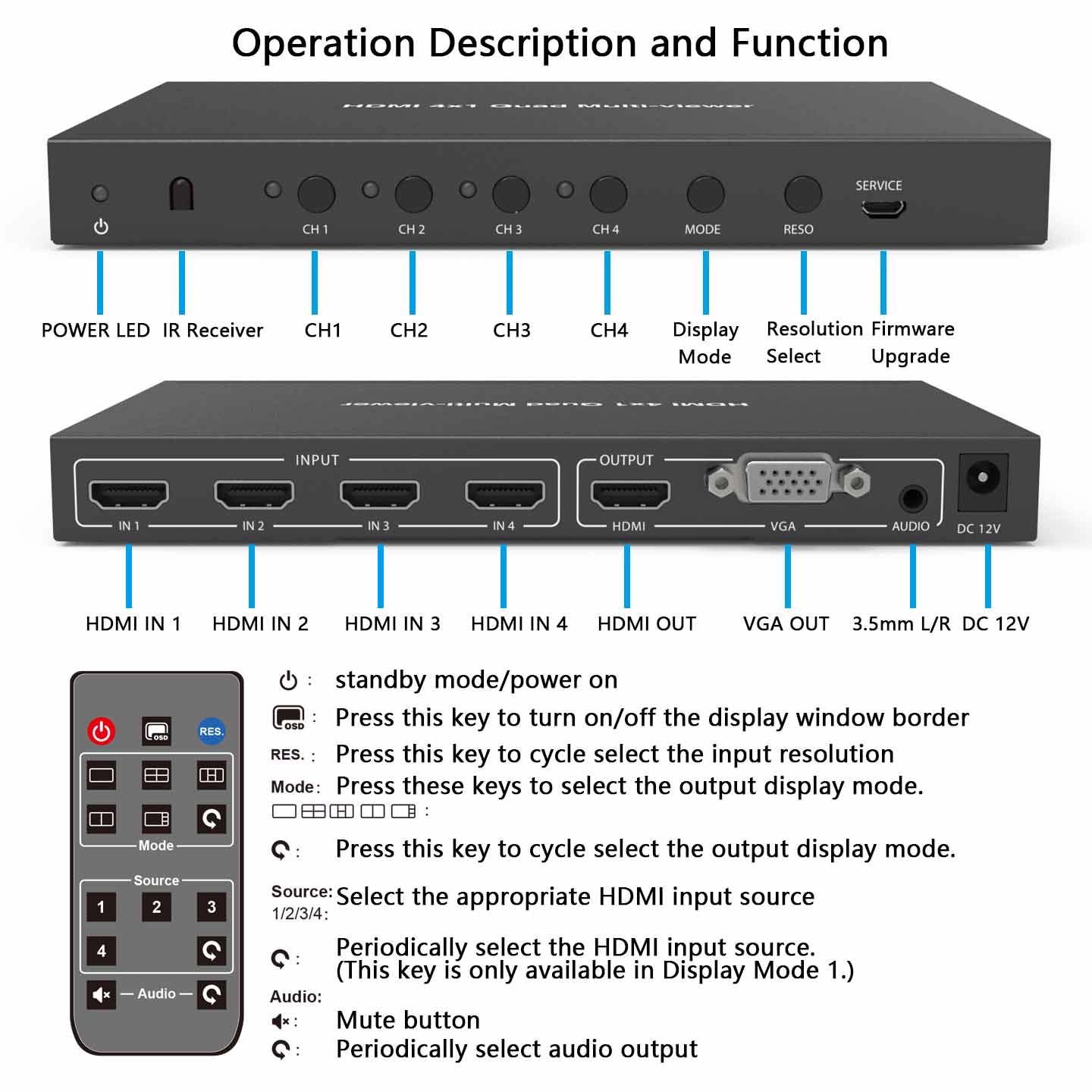

6. Which HDMI source does the analog audio signal output come from? If the device is working in Display Mode 1, the audio output come from the current HDMI source. If the device is working in Display Mode 2/3/4/5, you can press CH1/CH2/CH3/CH4 button up to 5s to select the source of audio output, or use the remote control to cyclically select the source of audio output. The default source of audio output is from CH1 screen.
7. What does its VGA port output? the VGA port output the signal that is the same as the HDMI output port.
8. How many display modes does this product support? How do these display modes work? The 4x1 HDMI multiviewer has 5 display modes include 1/2/4 windows multiview mode.
