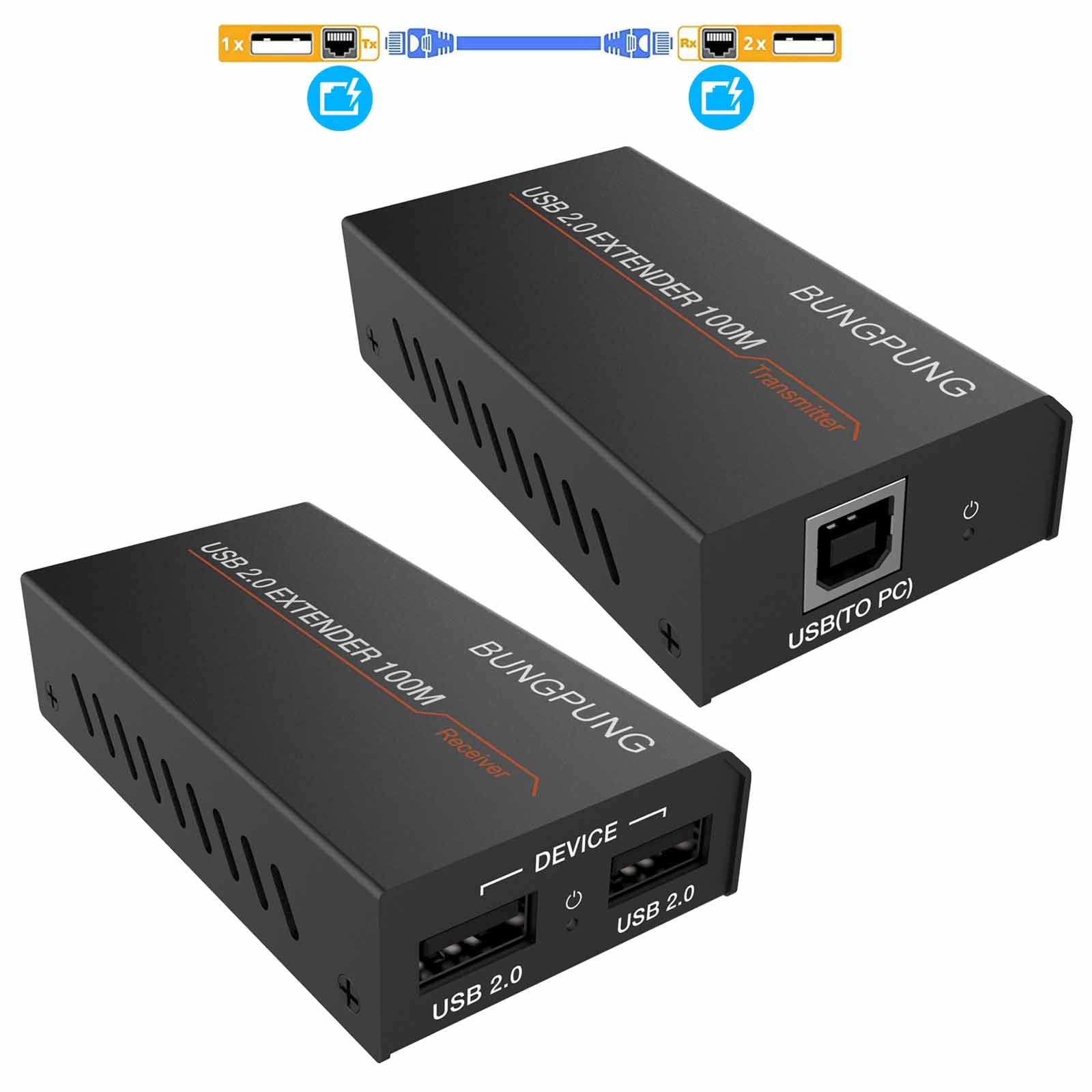

• USB 2.0 Extender via CAT5e/6 LAN cable 100m transmission main
  • USB 2.0 Extender via CAT5e/6 LAN cable 100m transmission main 2
  • USB 2.0 Extender via CAT5e/6 LAN cable 100m transmission connection
  • USB 2.0 Extender via CAT5e/6 LAN cable 100m transmission function
  • USB 2.0 Extender via CAT5e/6 LAN cable 100m transmission feature
  • USB 2.0 Extender via CAT5e/6 LAN cable 100m transmission description
  • USB 2.0 Extender via CAT5e/6 LAN cable 100m transmission application
  • USB 2.0 Extender via CAT5e/6 LAN cable 100m transmission size
1 8

BUNGPUNG

USB 2.0 Extender over CAT5e/6 Cable 100m transmission-BUNGPUNG

USB 2.0 Extender over CAT5e/6 Cable 100m transmission-BUNGPUNG

$127.35 USD
$135.90 USD $127.35 USD
Sale Sold out
Shipping calculated at checkout.

HDC-EU2100

50 in stock
USB 2.0 Extender over CAT5e/6 Cable 100m transmission application-BUNGPUNG
USB 2.0 Extender over CAT5e/6 Cable 100m transmission connection-BUNGPUNG

USB 2.0 Extender over CAT5e/6 Cable PRODUCT DETAILS

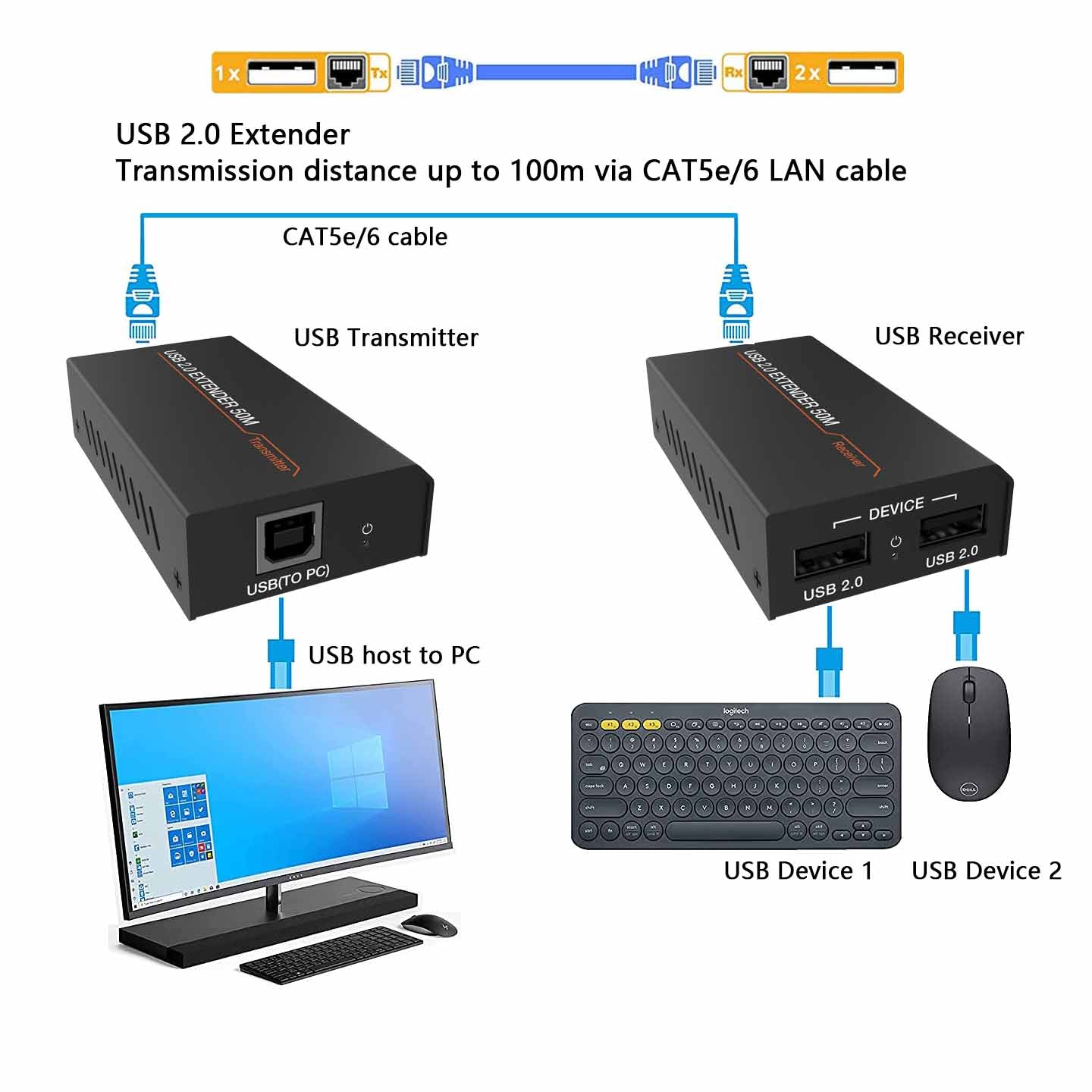

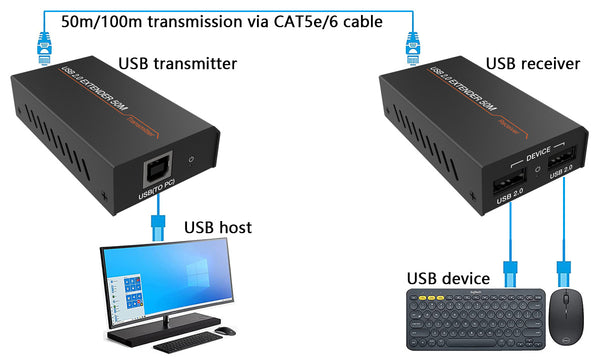

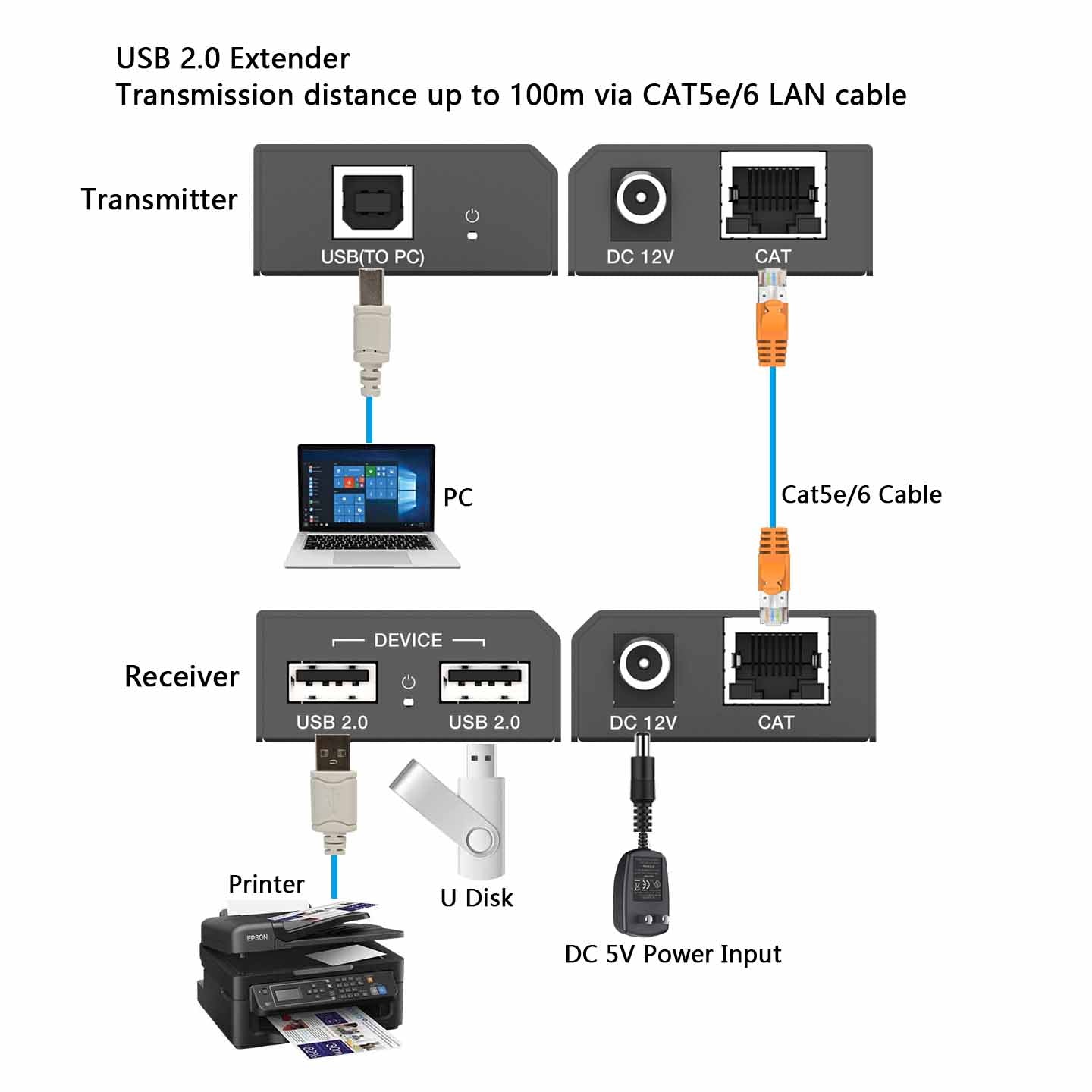

The BUNGPUNG USB 2.0 Extender can extend the transmimssion distance of USB signal up to 100 meters / 328ft via Cat 5e/6 LAN cable. In the transmitter the USB‐B port is connected a PC. In the receiver, you can connect a device with USB port at the two USB ports such as U disk or printer, etc. the Transmitter and Receiver support PoC (Power over Cable) function. The product can be widely used long distance signal transmission between a PC and USB device. Simple plug and play, no drive and setting installation required.

Features

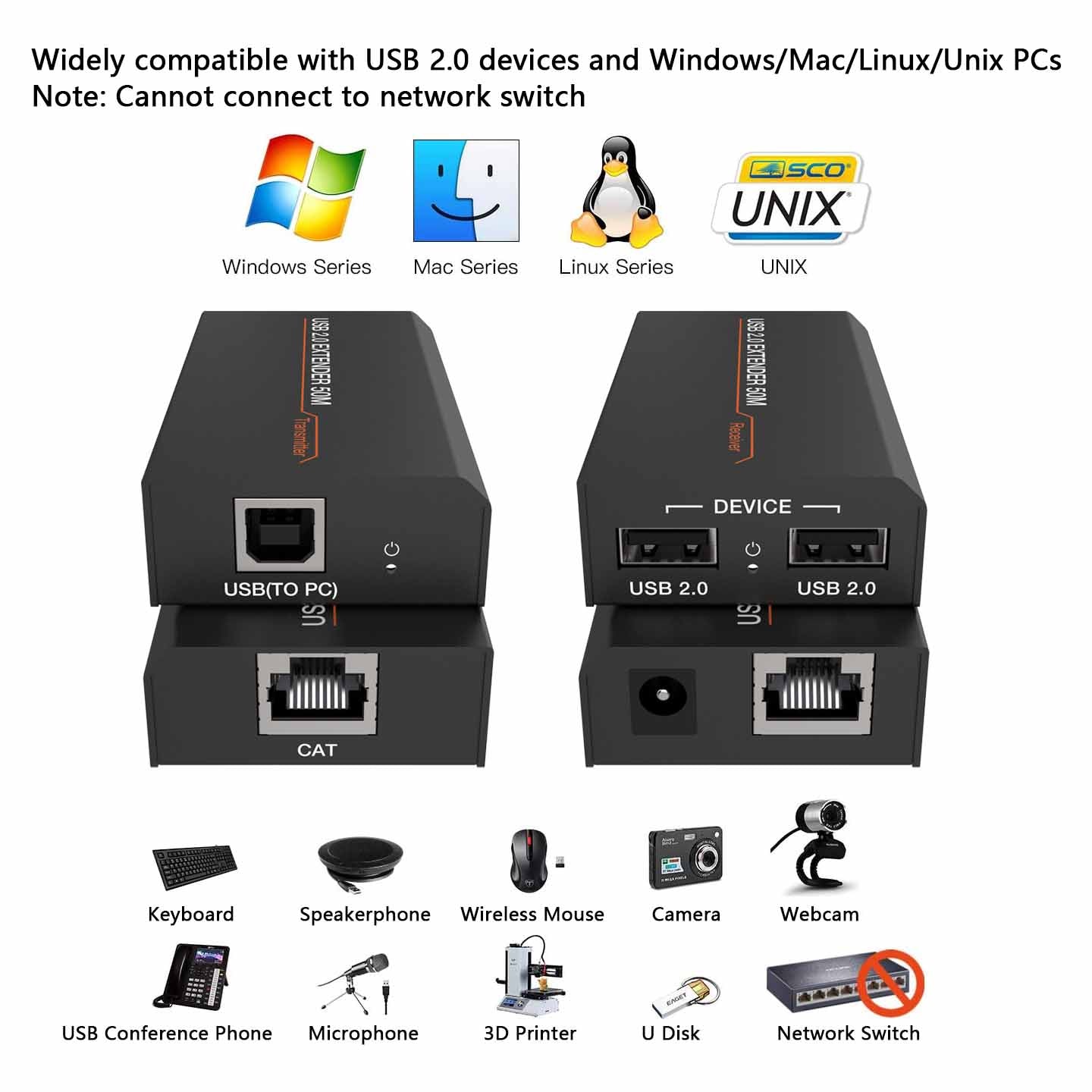

  • USB 2.0 Extender over Cat5e/6 LAN cable- Up to 100m transmission distance between PC and USB devices. supports High Speed USB 2.0 Function (Max 480Mbps) - Supports Any Operating Systems such as ( Windows, MacOS, Android, Linux) NOTE: can not connect to network switch.

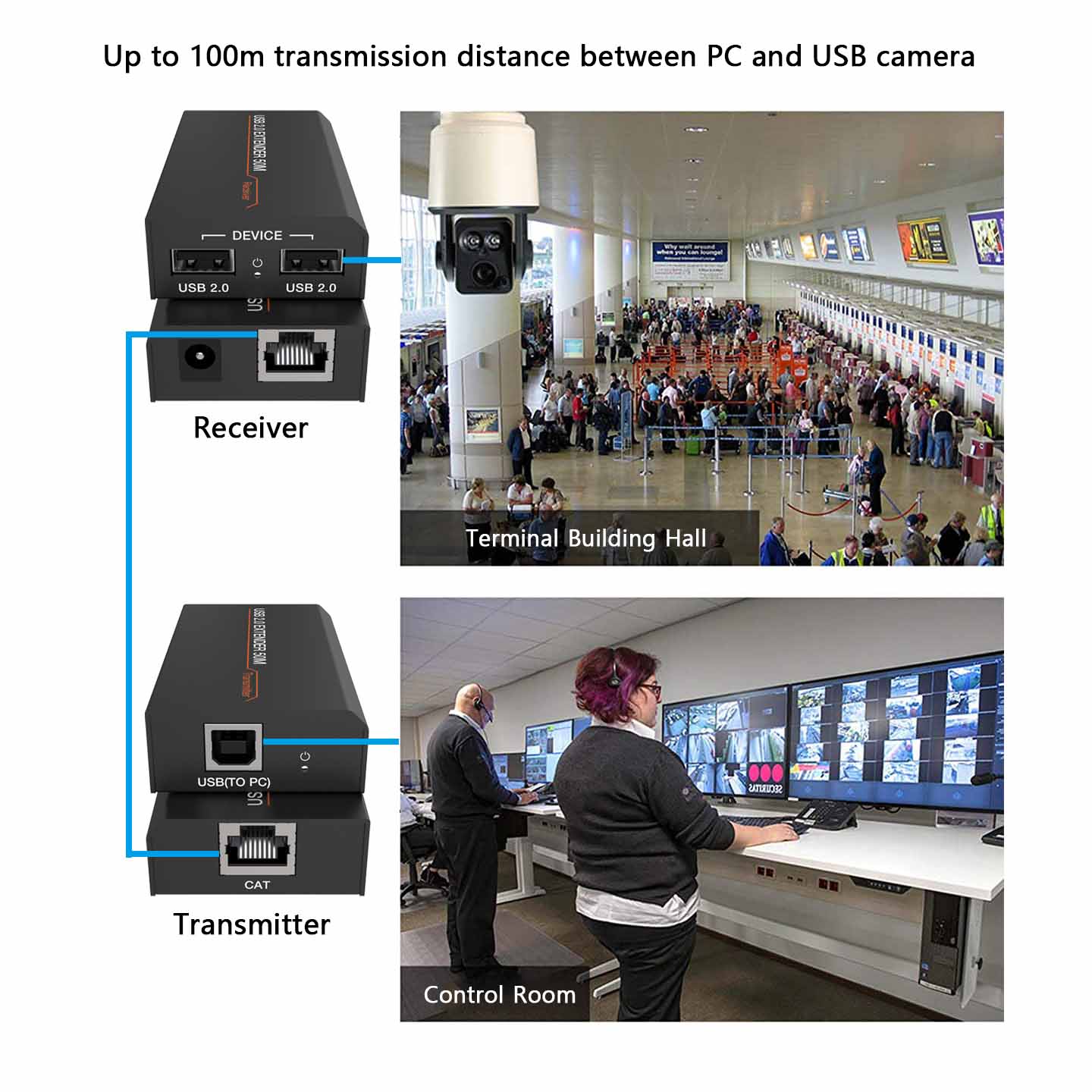

  • Compact size and easy installation. No Software Needed, Plug & Play - Solid Connection for PC, Printers, Touch Screen, Video Conferencing, Webcams, Game Controls, Keyboards, Mouse, Mic.
  • Power Over Cable (PoC) - it means that either transmitter or receiver is
    connected powered supply by 12V/1A power adapter, the other doesn’t
    need power supply. two USB 2.0 ports output in receiver.

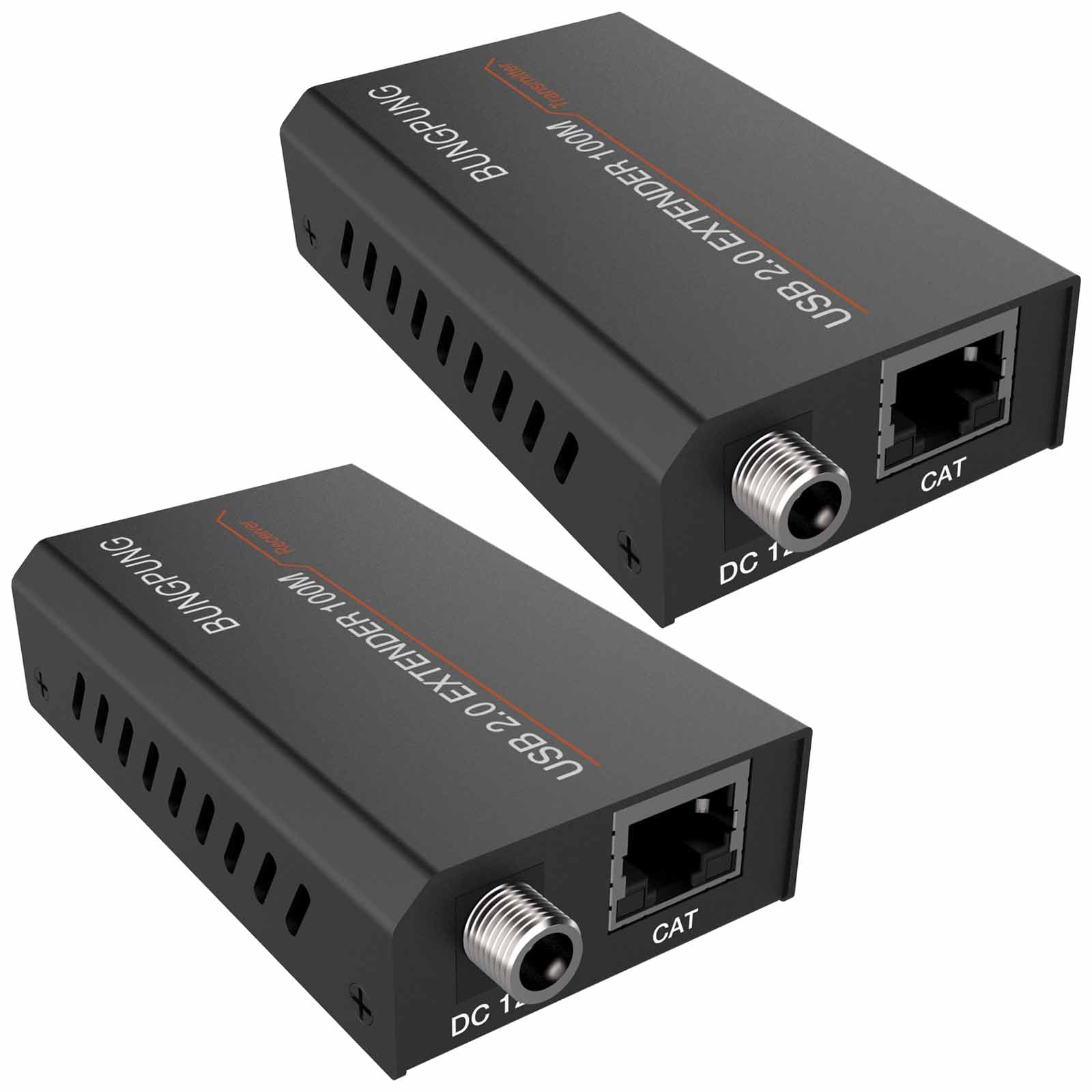

  • duty cool metal enclosure keeps the unit cool by aiding in quick heat absorption and dissipation
  • 1 year warranty for product defects

Download User Manual

Specifications

Technical

USB protocol

USB 2.0

Transmission rate

Up to 480Mbps

Transmission distance

100M (328ft)

ESD Protection

Human-body Model：±8kV (Air-gap discharge) ,

±4kV (Contact discharge)

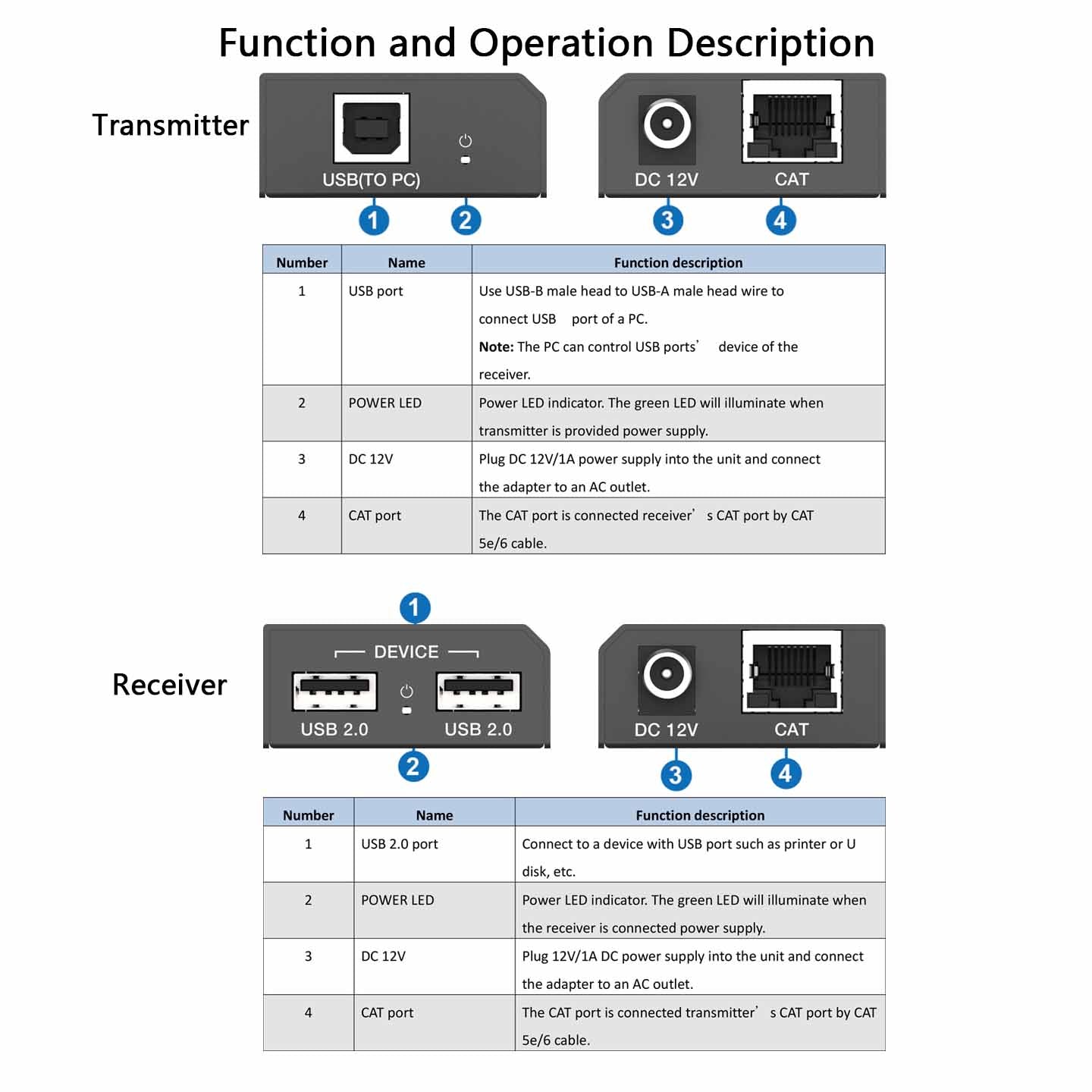

Connections

Transmitter

Input port:    1×USB [USB-B, female]

Output port: 1×CAT [RJ45, female]

Receiver

Input port:    1×CAT [RJ45, female]

Output port: 2×USB [USB-A, female]

Mechanical

Housing

Metal Enclosure

Color

Black

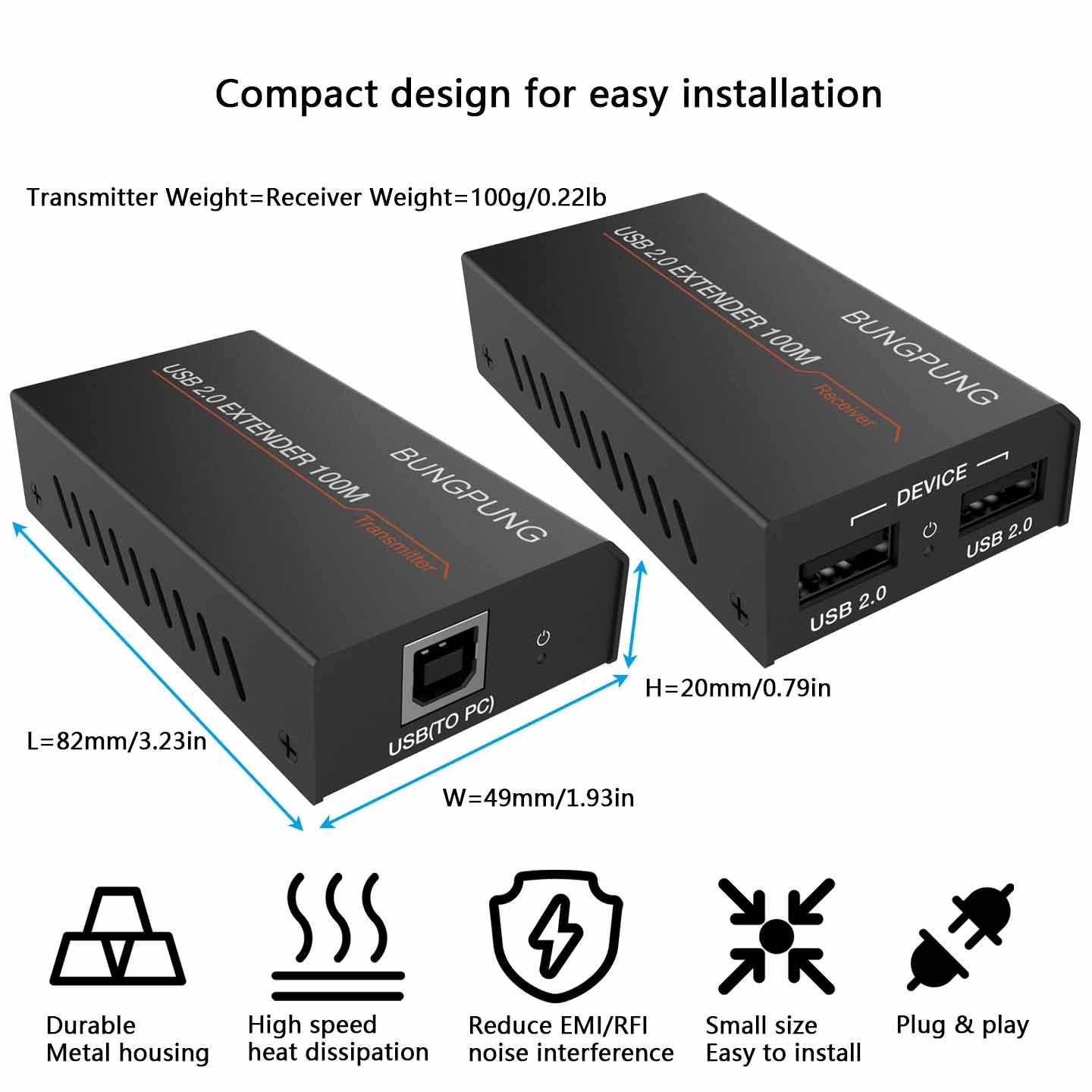

Dimensions

Transmitter / Receiver: 82mm (W)×49mm (D)×20mm (H)

Weight

Transmitter / Receiver: 100g

Power Supply

Input: AC100~240V 50/60Hz, Output: DC 12V/1A

Power Consumption

Transmitter: 1.3W, Receiver: 2.3W

Operating

Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)
Package Contents ① 1× USB 2.0 Extender (Transmitter)
② 1× USB 2.0 Extender (Receiver)
③ 1× USB cable (USB‐B male head to USB‐A male head, one meter )
④ 1× 12V/1A Locking Power Adapter
⑤ 1× User Manual
