4K HDBaseT HDMI KVM Extender over CAT6 Cable 150m USB 2.0 IR-BUNGPUNG

4K HDBaseT HDMI KVM Extender over CAT6 Cable 150m USB 2.0 IR-BUNGPUNG

Regular price $383.76 USD
Regular price $229.91 USD Sale price $383.76 USD
Sale Sold out
Shipping calculated at checkout.

SKU:HDC-EHB150U2

50 in stock


4K HDBaseT HDMI KVM Extender over CAT6 Cable 150m USB 2.04K HDBaseT HDMI KVM Extender over CAT6 Cable 150m USB 2.0 POC

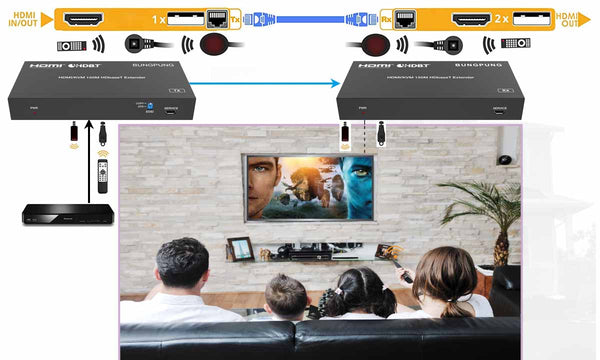

4K HDBaseT HDMI KVM Extender over CAT6 Cable 150m application-BUNGPUNG

4K HDBaseT HDMI KVM Extender over CAT6 PRODUCT DETAILS

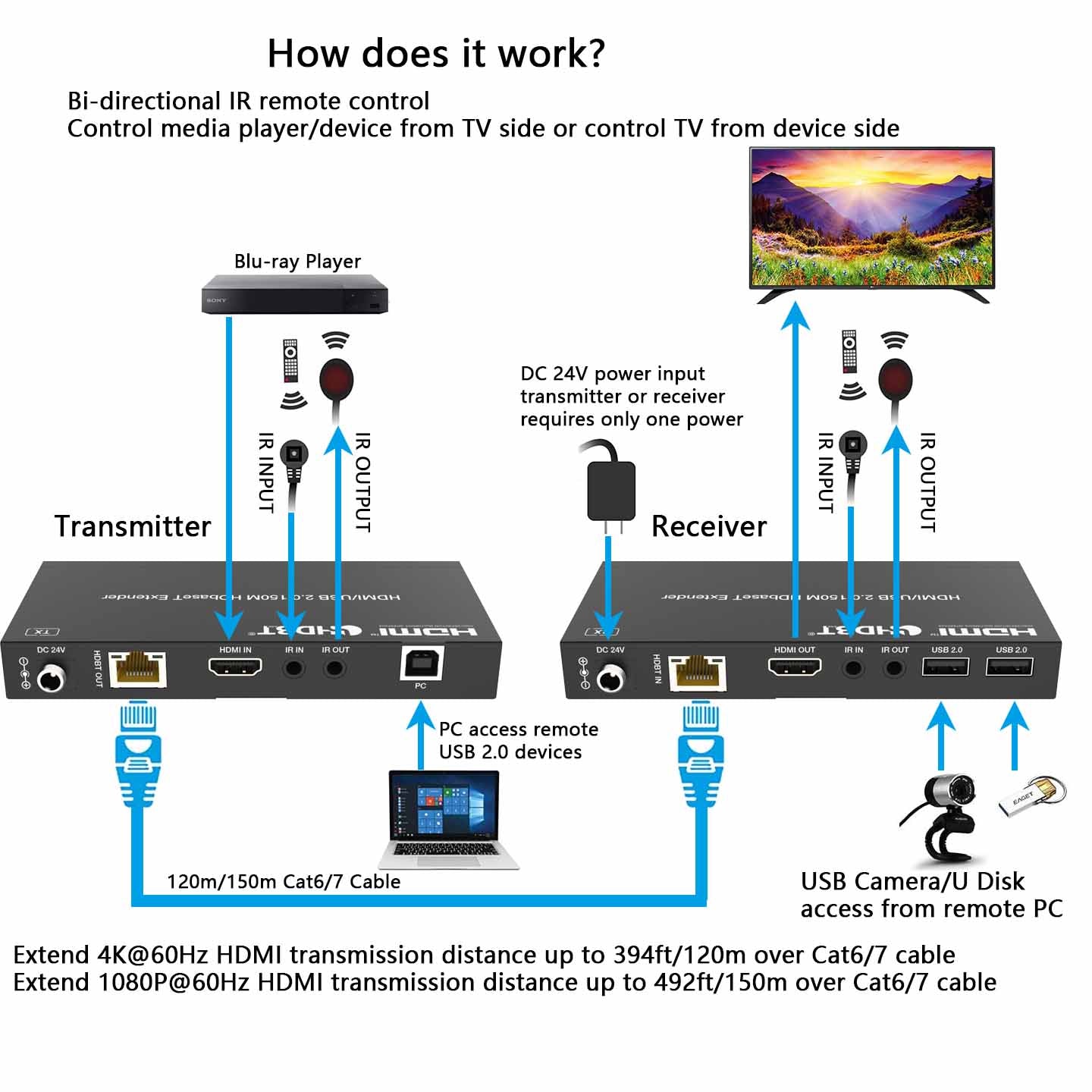

This BUNGPUNG 4K 60Hz HDBaseT HDMI KVM Extender over CAT6 can extend the transmission distance of HDMI video/audio, bi-directional IR and USB KVM signal, up to 492ft/150M meters between transmitter and receiver via a single CAT6/6a cable. It supports resolution up to 4K2K@60Hz 4:4:4, compatible with HDMI 2.0 HDCP 2.2 HDR. It also supports power over cable function, it means that either Transmitter or Receiver is connected to 1 24V/1A power supply, the other can be powered via the cat6 cable. In addition, the extender is equipped with bi-directional IR pass-through which allows remote control between the HDMI source and display.

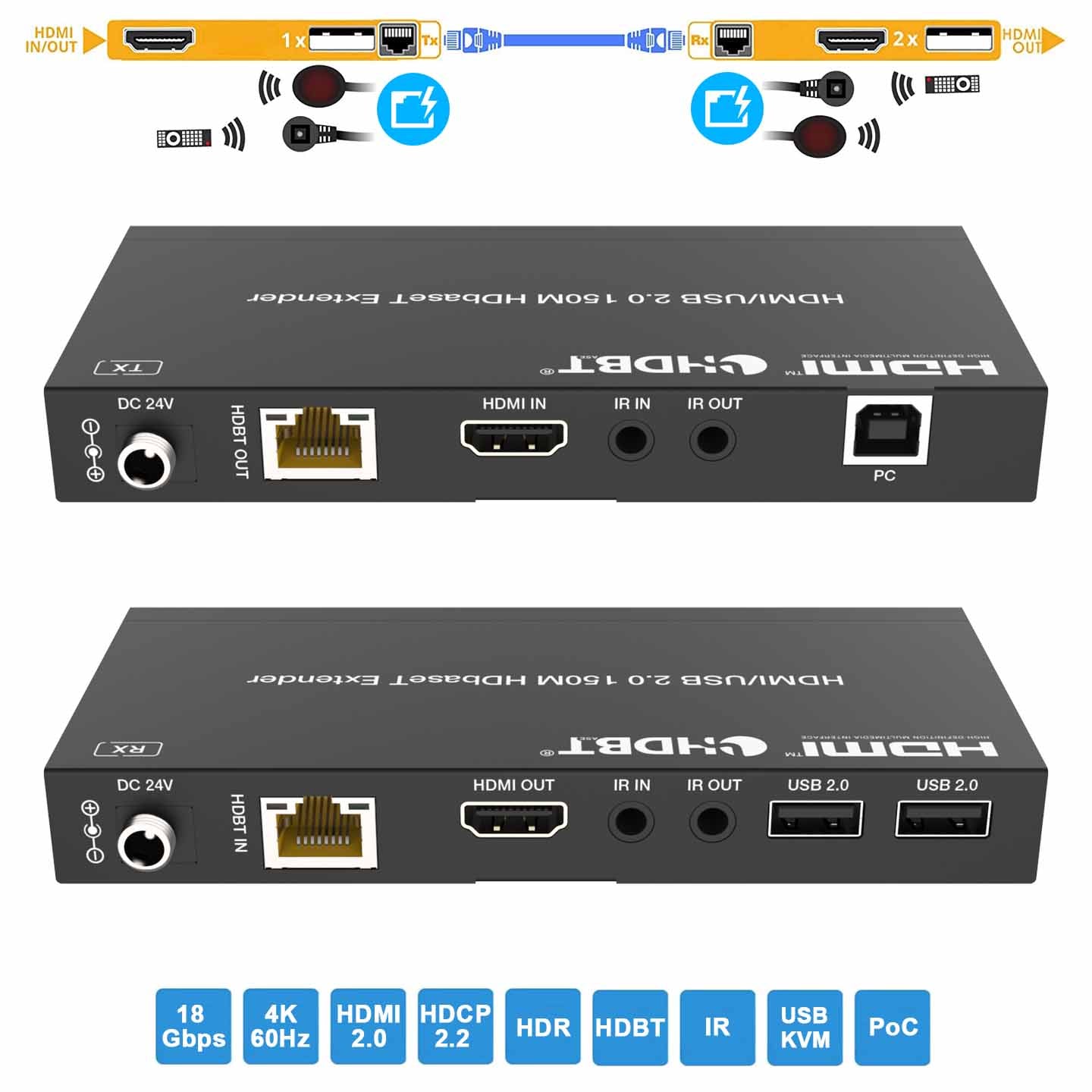

This HDMI KVM extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carries the signal via one cost effective Cat6/6a cable, and transmitting / emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting/emitting IR control signal.

This product converts HDMI signal to standard HDBaseT signal and transmits it through LAN cable. The extender offers the most convenient solution for HDMI extension via a single Cat6/6a with long distance capability, and is the perfect solution for any application.

Features

  • 4k HDBaseT HDMI KVM Extender- It can transmit 4K60Hz HDMI and Bi-derectional IR/USB 2.0 KVM signal up to 150m/500Feet over CAT6 LAN Cable. Recommended Shielded Cable for best signal quality. Perfect for home/office for PC, Game Consoles, Blu Ray Players/Media Players, Sky HD box, satellite box, Android box. 18Gbps bandwidth, HDMI 2.0, HDCP 2.2 HDR compliant.

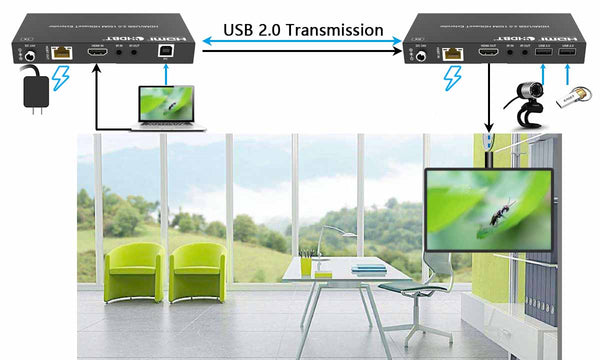

  • Bi-directional IR/USB 2.0 KVM Transmission: it allows using IR remote Control the media player / HDMI source device from the TV side or control the TV from the HDMI source device side. with USB KVM Transmission, users can use PC to remote control and access USB 2.0 devices at the transmitter side.
  • Power Over Cable Power Supply: Adopt POC technology, power over cable, only one power adapter is needed to connect to the TX or RX unit can support the entire device's operation, more simple and convenient.
  • plug and play installation: no driver required. surface mountable metal housing allows easy placement; sturdy metal body provides durability and minimizes EMI/RFI noise interference. FCC, CE & ROHS compliant
  • 1 year warranty for product defects

FAQs

  1. Can I extend beyond the mentioned distance? Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
  2. Can I input the output of this product to another extender similar to daisy chain method? Yes, you can implement the daisy chain method. This extender can be cascaded to another extender.
  3. What types of HDMI & CAT cables should I use with this product? We strongly recommend you to use Premium High Speed HDMI cables & shielded CAT6/6a/7 cables.
  4. What is the maximum length of HDMI input and output cables? You can use Premium High Speed HDMI cables up to 3m for 4k@60hz, 10m for 4k@30hz/1080P60Hz.
  5. How far does this product can extend between HDMI source and display? it can extend the transmission distance up to 150m/492ft for 1080@60Hz or 120m/394ft for 4K@60Hz when using with a CAT6 cable.
  6. Does this unit work with cat5e cable? if you can not get signal on display, The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6/6a/7 cable.
  7. How to know if the extender is broken? If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be broken.
  8. Does this product support IR frequency or FR frequency? Our all the extenders support IR Frequency from 20Hz to 60KHz.
  9. What is the function of the EDID copy of this product? It Support copying EDID from display connected to the HDMI output of receiver. It ensures that the HDMI source device outputs the best signal resolution that the display device can support.
  10. What is the function of the PoC (power over cable) of this product? Power over cable is a technology that allows electrical power to be transmitted over standard data cables, typically Ethernet cables, along with data signals. it means that either transmitter or receiver is powered by one 12V/1A power adapter, the other one can be powered via the CAT cable.
  11. What is the HDBaseT technology of this product? HDBaseT is a connectivity technology that enables the transmission of high-definition video, audio, Ethernet, power, and control signals over a single Cat5e/6/7 cable. HDBaseT technology is designed to overcome the limitations of traditional connectivity options such as HDMI, which have distance restrictions and require multiple cables for different signals. HDBaseT consolidates all the necessary signals into a single cable, simplifying installations and reducing cable clutter.
  12. What is the function of the KVM extender of this product? A KVM extender is a device that allows users to extend the distance between a computer (or a server) and the user's keyboard, video monitor, and mouse (KVM) peripherals. It enables the user to control a computer located at a remote distance, usually over long distances or in challenging environments.

 Download User Manual

Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution Up to 4K2K@60Hz YUV 4:4:4
USB Compliance USB 2.0
IR Level 5Vp-p
IR Frequency Wideband 20K-60KHz
Transmission Distance 1080P@60--150m, 4K60 --120m
Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2
Color Depth 8-bit, 10-bit, 12-bit (1080P@60Hz) 8-bit (4K2K@60Hz YUV4:4:4)
8-bit, 10-bit, 12-bit (4K2K@30Hz)
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Format LPCM 7.1CH, Dolby True HD, and DTS-HD Master
ESD Protection Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)

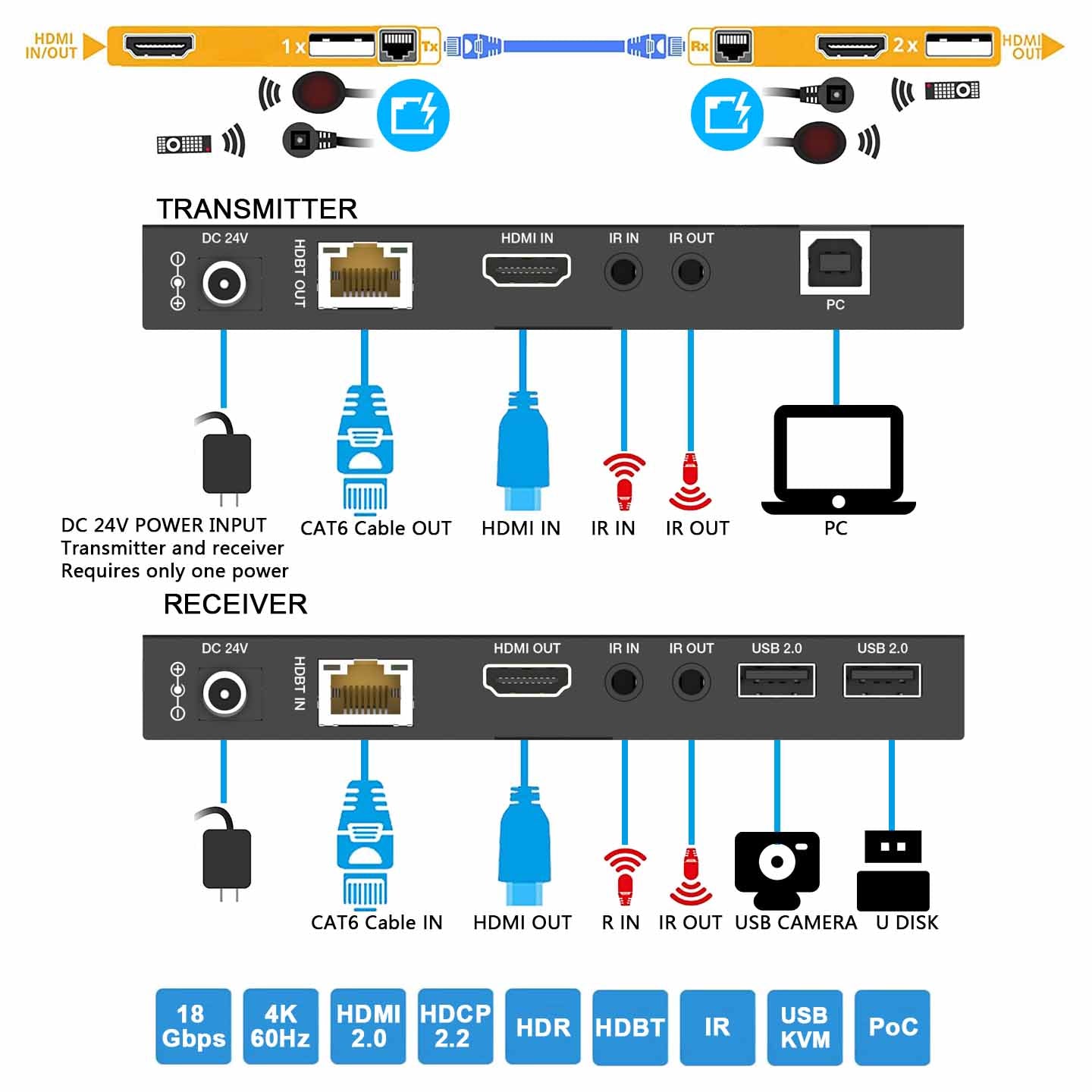

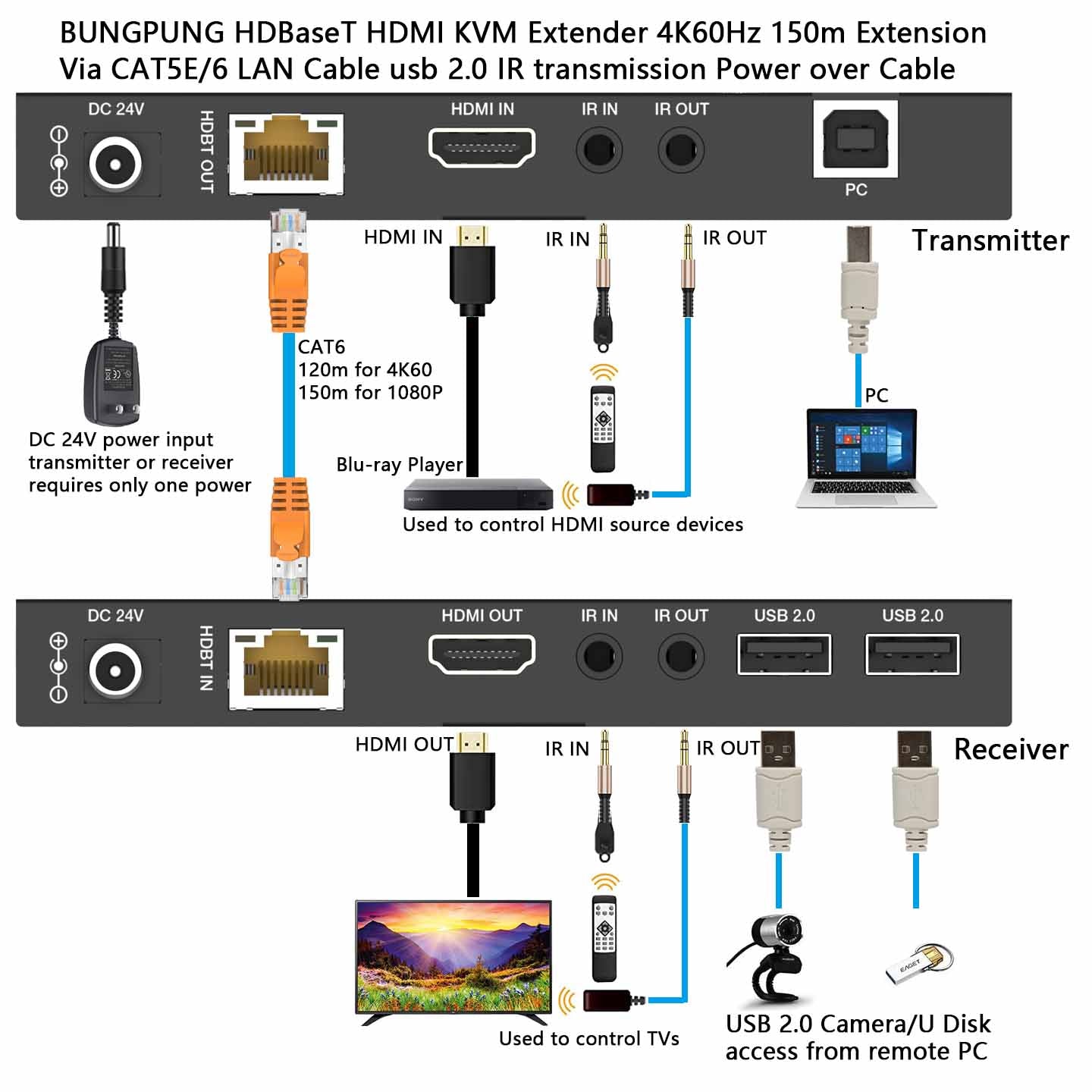

Connection
Transmitter Input: 1×HDMI IN [TypeA, 19-pin female]
1×IR IN [3.5mm Stereo Mini-jack]
 1×SERVICE [Micro-USB jack]
 1×USB [USB-B, 4-pin female]
Output:  1×HDBT OUT [RJ45]
1×IR OUT [3.5mm Stereo Mini-jack]
Receiver Input:  1×HDBT IN [RJ45 with light]
1×IR IN [3.5mm Stereo Mini-jack]
1×SERVICE [Micro-USB jack]
Output: 1×HDMI OUT [TypeA, 19-pin female]
1×IR OUT [3.5mm Stereo Mini-jack]
2×USB 2.0 [USB-A, 4-pin female]
Mechanical
Housing Metal Enclosure
Color Black

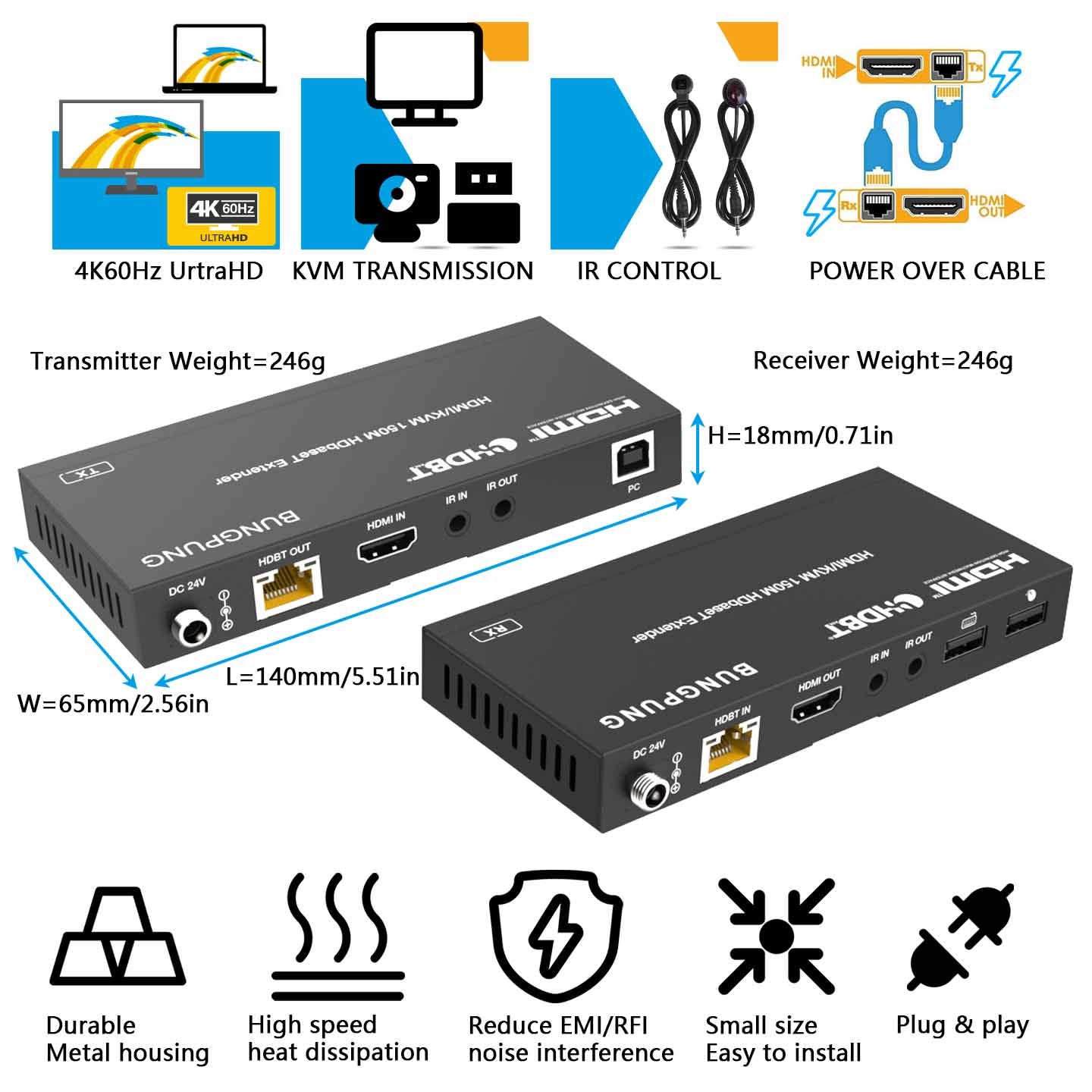

Dimensions Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H)
Weight Transmitter: 245g, Receiver: 249g
Power Supply DC 24V/1A;
Support bi-directional POC function
Power Consumption 13W
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)

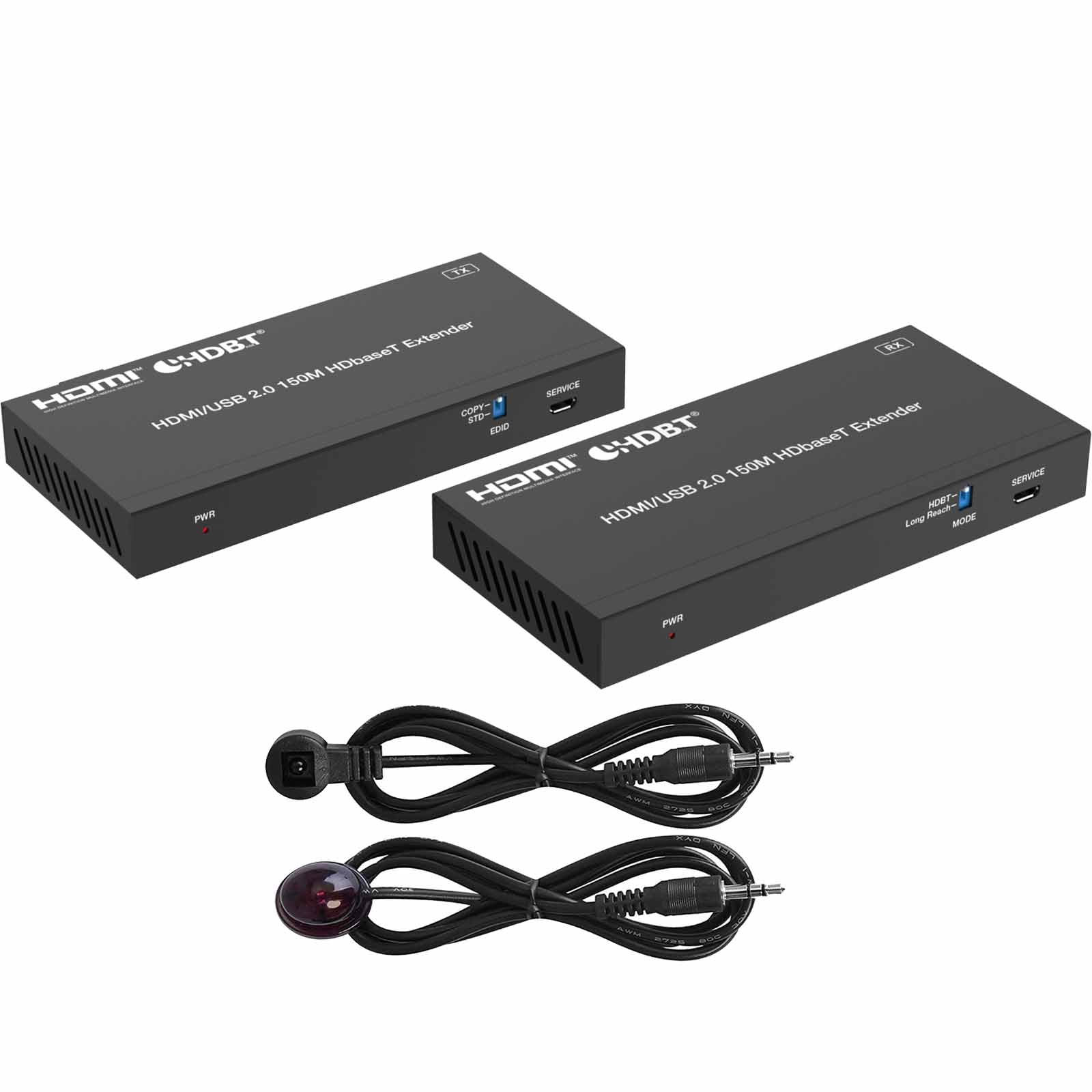

Package Contents ① 1 x 18Gbps HDBaseT Extender (Transmitter)
② 1 x 18Gbps HDBaseT Extender (Receiver)
③ 1 x IR Blaster cable (1.5 meters)
④ 1 x IR Wideband Receiver cable (1.5 meters)
⑤ 4 x Mounting Ears
⑥ 8 x Machine Screws (KM3*4)
⑦ 1 x 24V/1A Locking Power Supply
⑧ 1x User Manual
