HDMI Extender over CAT6 Cable 70M 1080P 60Hz PRODUCT DETAILS

Features

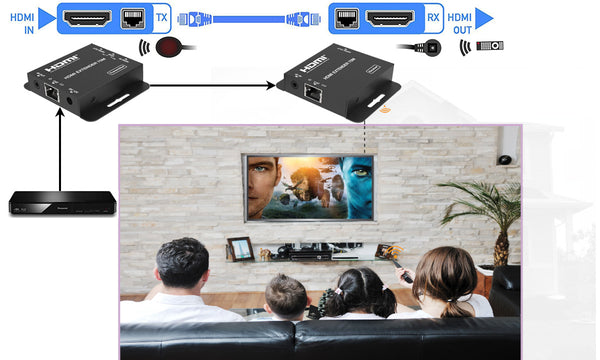

• 70m/230Feet HDMI Extender - It can transmit 4K@30Hz HDMI signal up to 130 Feet and Full 1080P Signal up to 230 Feet over CAT5e/6 LAN Cable. Recommended Shielded Cable for best signal quality. Perfect for home/office for PC, Game Consoles, Blu Ray Players/Media Players, Sky HD box, satellite box, Android box.

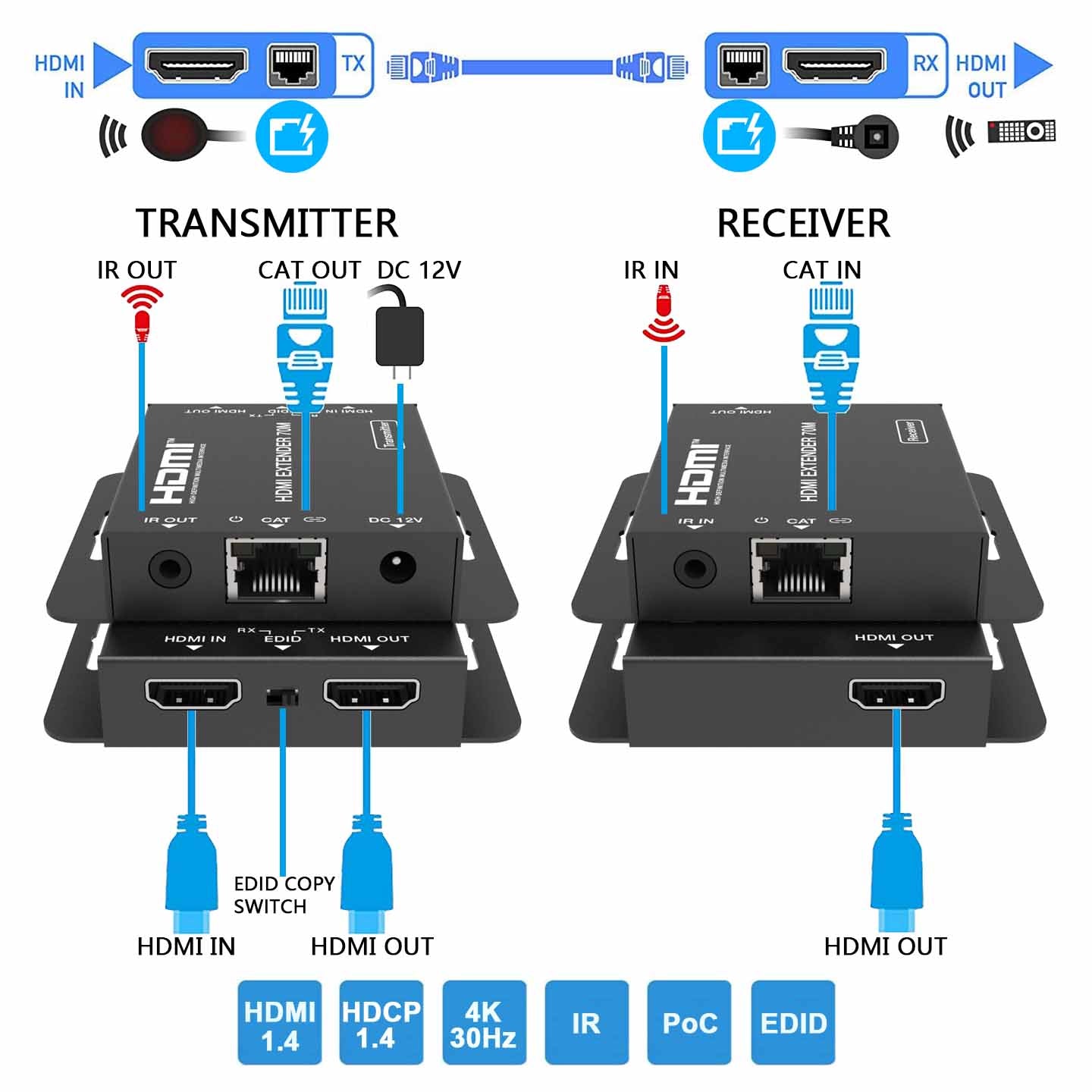

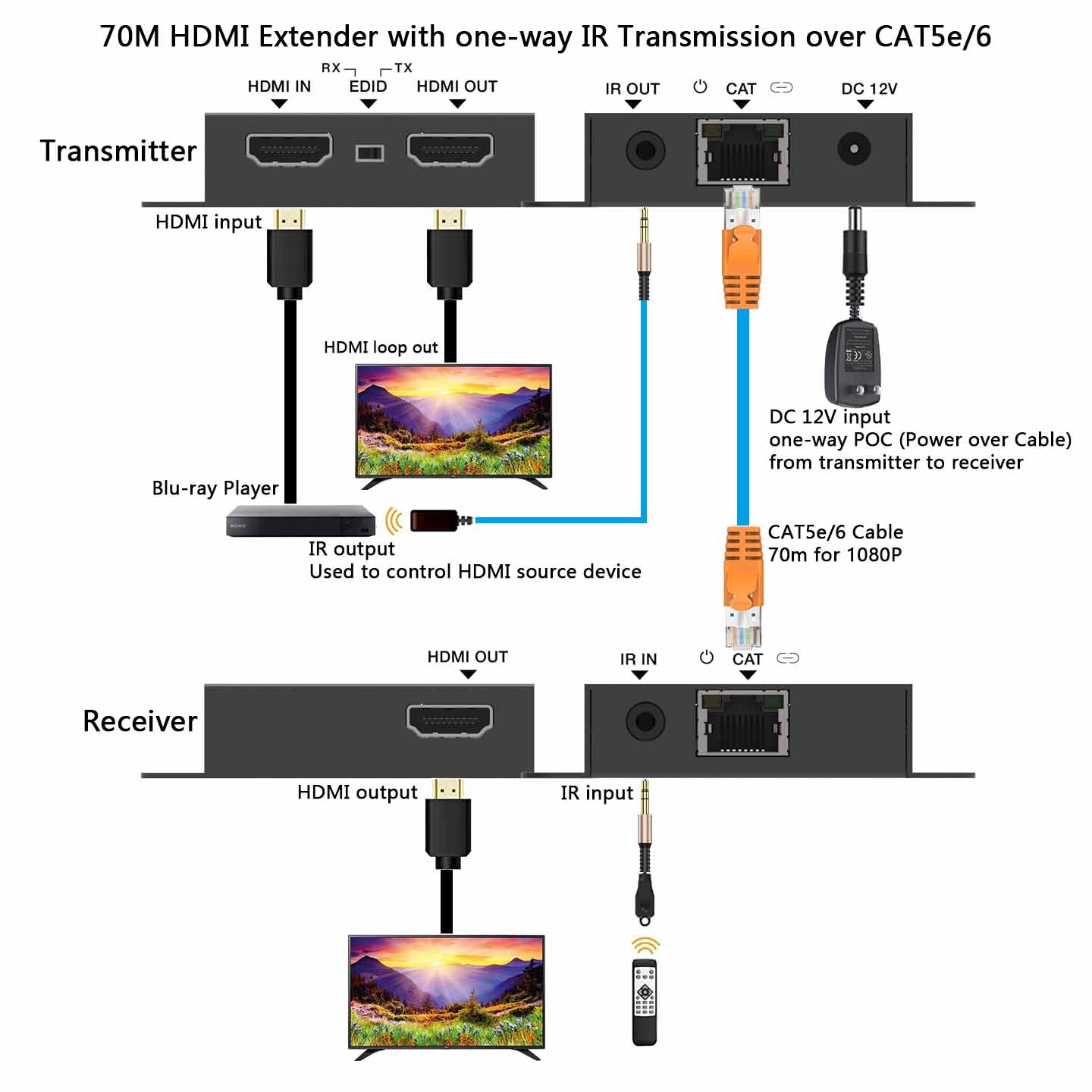

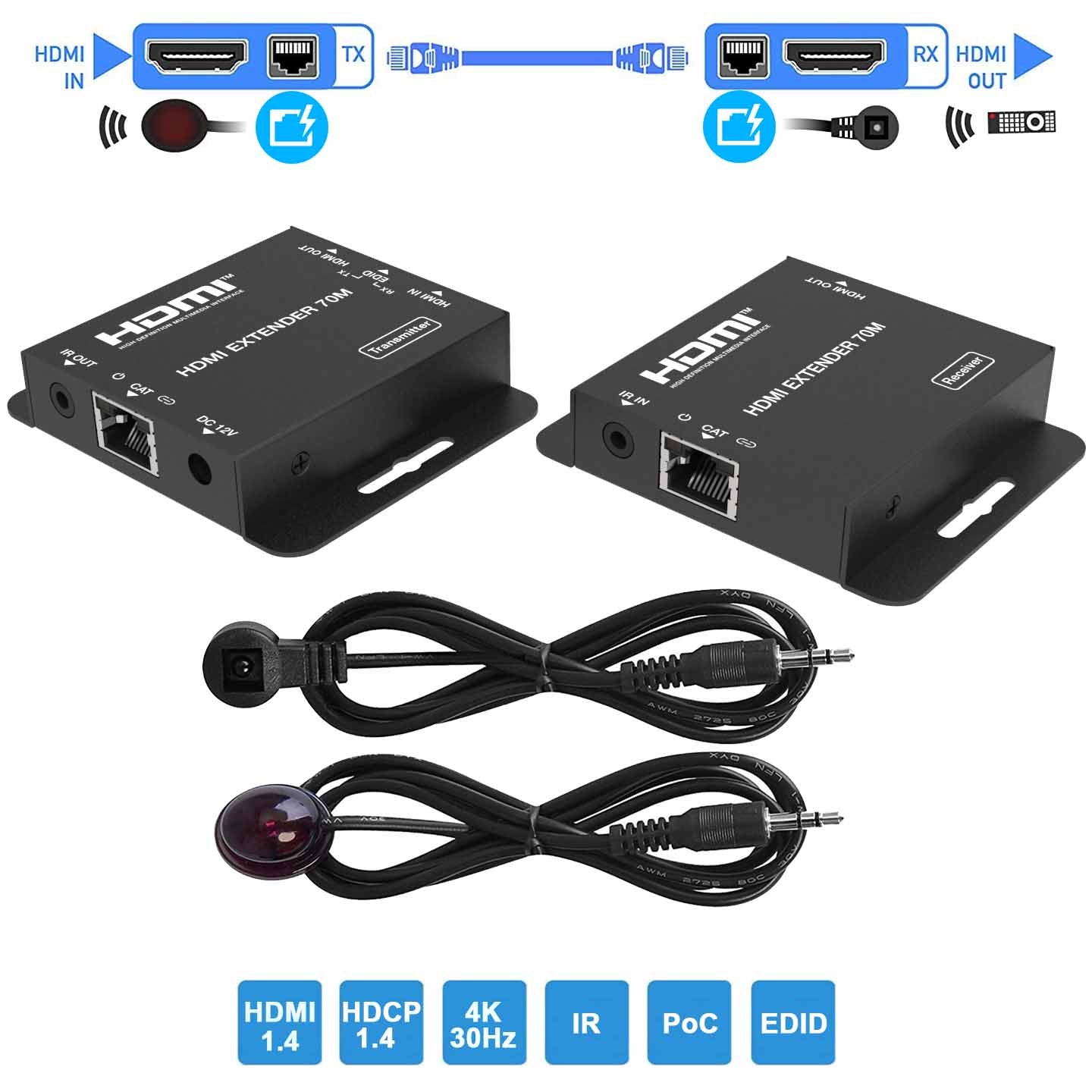

• One-way IR Transmission: it allows using IR remote Control the HDMI source device from the TV side. it Support copying EDID from receiver display or loop out display, which allows for maximum compatibility between HDMI source devices and displays.

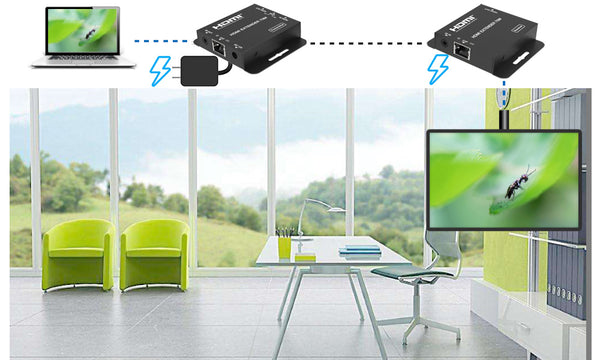

• Power Over Cable Power Supply: Adopt POC technology, power over cable, only one power adapter is needed to connect to the TX unit can support the entire device's operation, more simple and convenient.

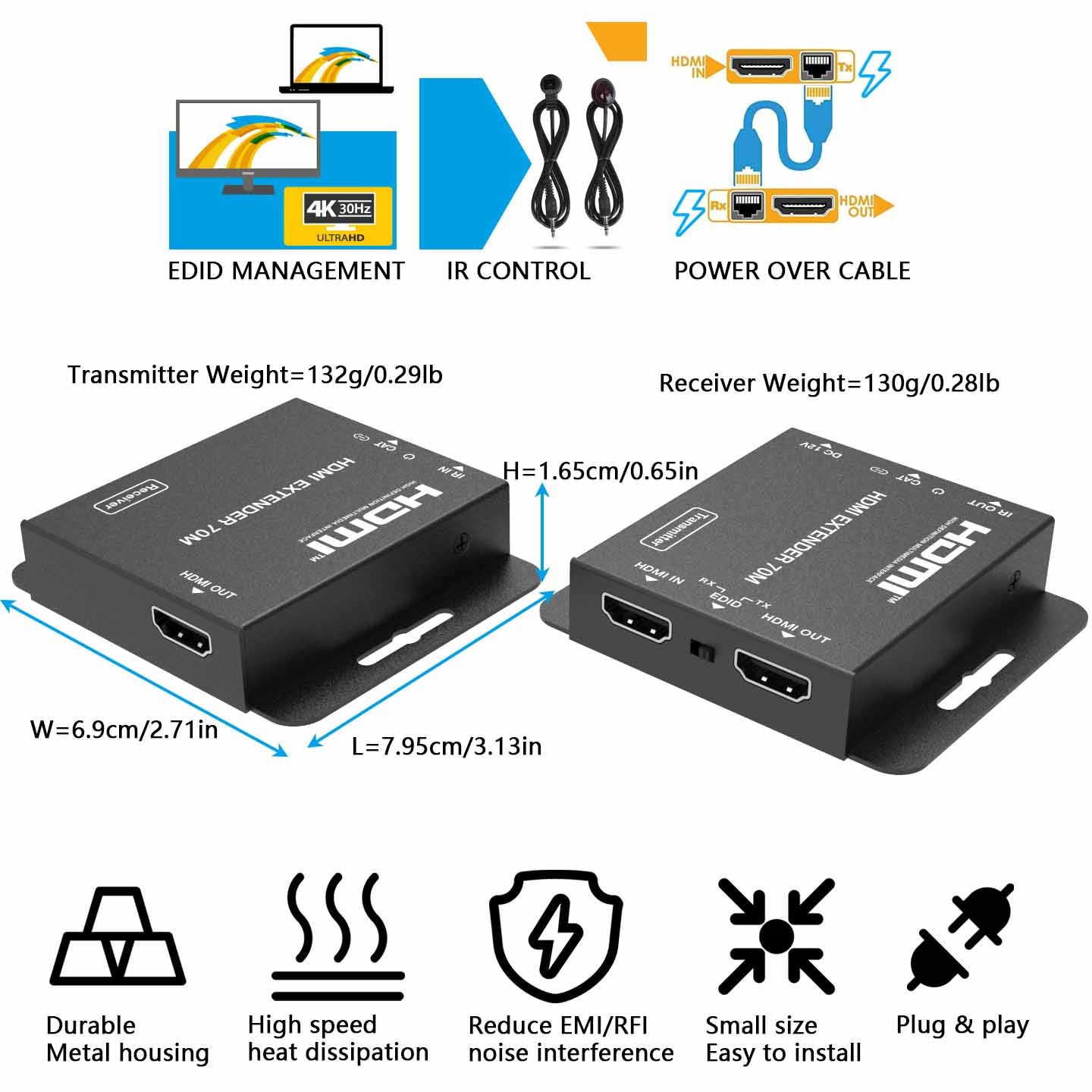

• plug and play installation: no driver required. surface mountable metal housing allows easy placement; sturdy metal body provides durability and minimizes EMI/RFI noise interference. FCC, CE & ROHS compliant
• 1 year warranty for product defects

FQAs

1. Can I extend beyond the mentioned distance? Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
2. Can I input the output of this product to another extender similar to daisy chain method? Yes, you can implement the daisy chain method. This extender can be cascaded to another extender.
3. What types of HDMI & CAT cables should I use with this product? We strongly recommend you to use Premium High Speed HDMI cables & shielded CAT6 cables.
4. What is the maximum length of HDMI input and output cables? You can use Premium High Speed HDMI cables up to 10m for 4K@30Hz/1080P60Hz.

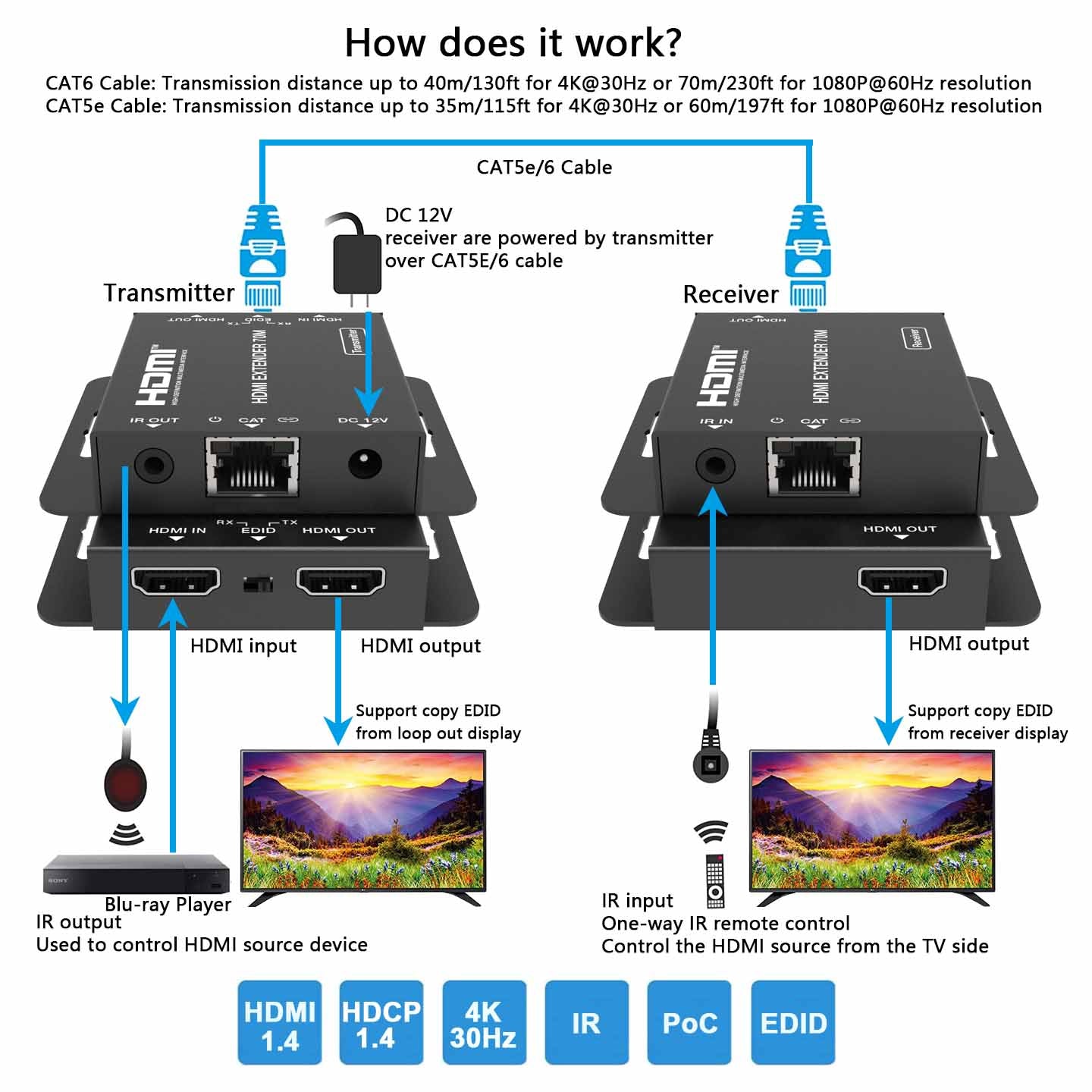

5. How far does this product can extend between HDMI source and display? it can extend the transmission distance up to 70m/230ft for 1080P60Hz or 40m/131ft for 4k30Hz when using with a CAT6 cable. If you use Cat5e cable, the transmission distance is 197ft/60m for 1080p60hz or 115ft/35m for 4K30hz.
6. Does this unit work with cat5e cable? if you can not get signal on display, The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
7. How to know if the extender is broken? If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be broken.
8. Does this product support IR frequency or FR frequency? Our all the extenders support IR Frequency.
9. Does the receiver unit need to be connected to a power adapter? unnecessary. This product supports power over cable function. The receiver unit is powered by the transmitter unit via the CAT cable.
10. What is the function of the EDID copy of this product? It Support copying EDID from receiver display or loop out display. It ensures that the HDMI source device outputs the best signal resolution that the display device can support.

Download User Manual

Specifications
