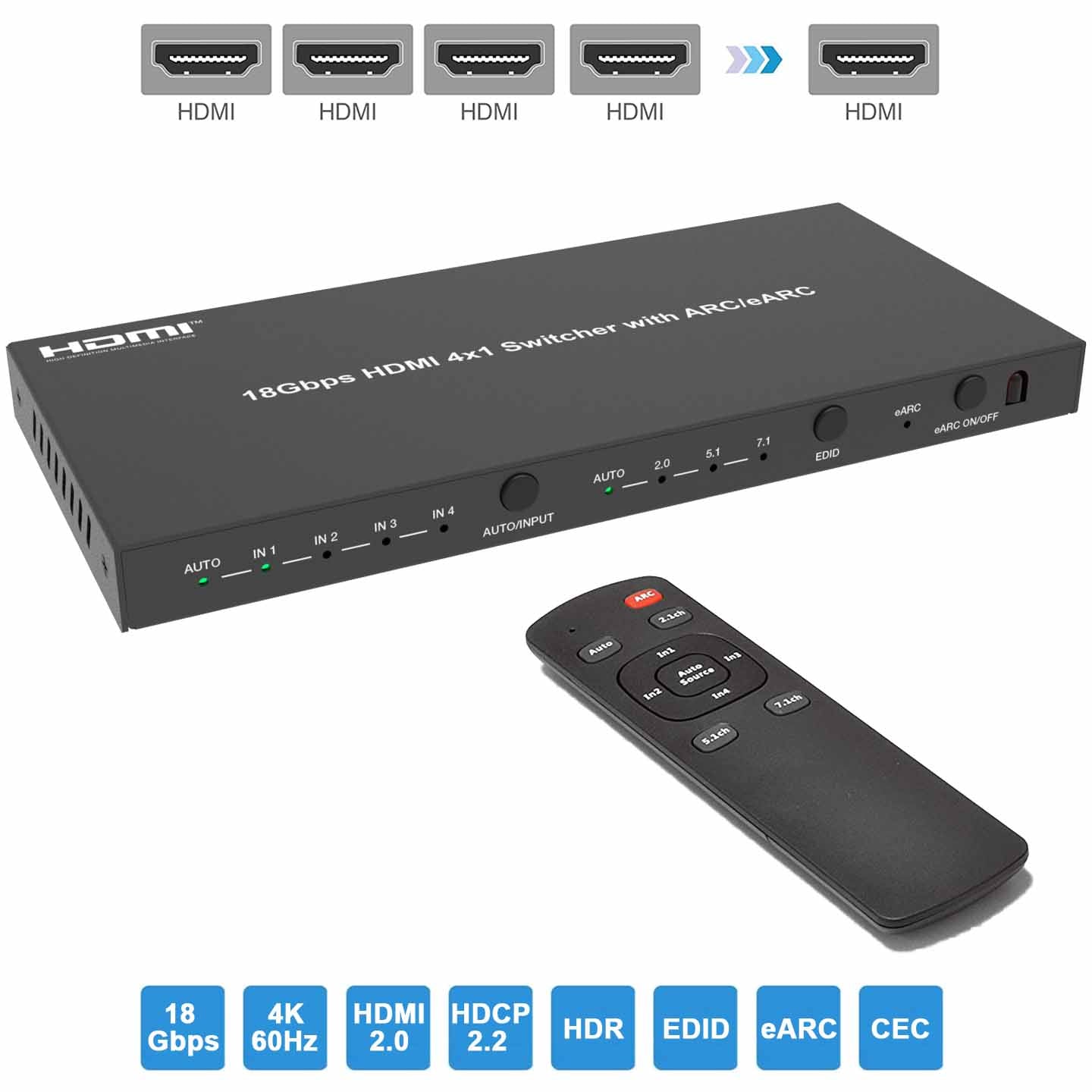

4K HDMI Switch 4 in 1 out HDMI eARC Audio Converter Transmitter PRODUCT DETAILS

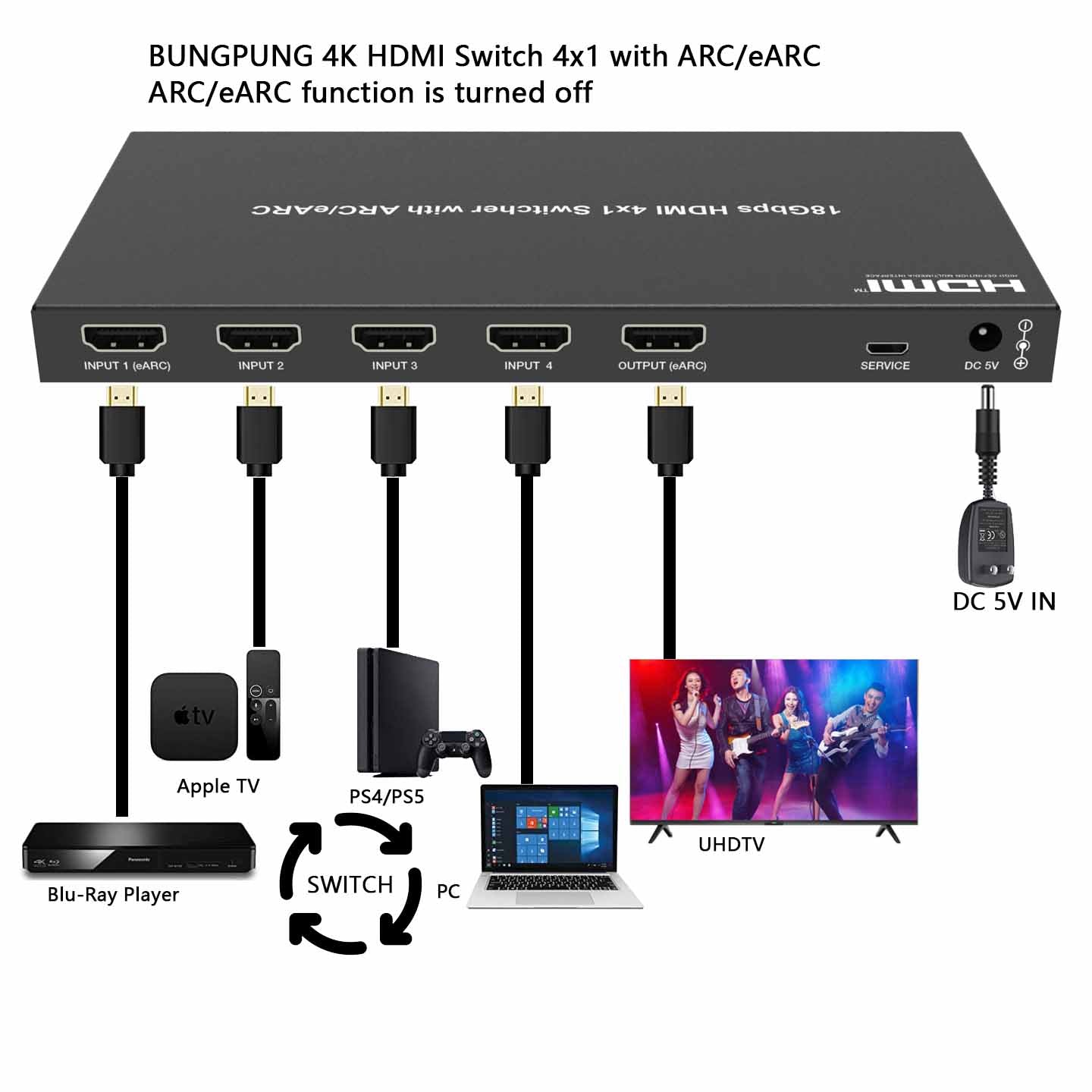

the BUNGPUNG 4k HDMI switch 4 in 1 out is high quality and reliable solutions for connecting 4 HDMI source devices to a single HDMI display and switching between them. It supports video resolution up to 4K@60Hz, compatible with HDMI 2.0 HDCP 2.2 HDR. It supports ARC/eARC function (only for the “INPUT 1(eARC)” port). It also supports advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH selectable).

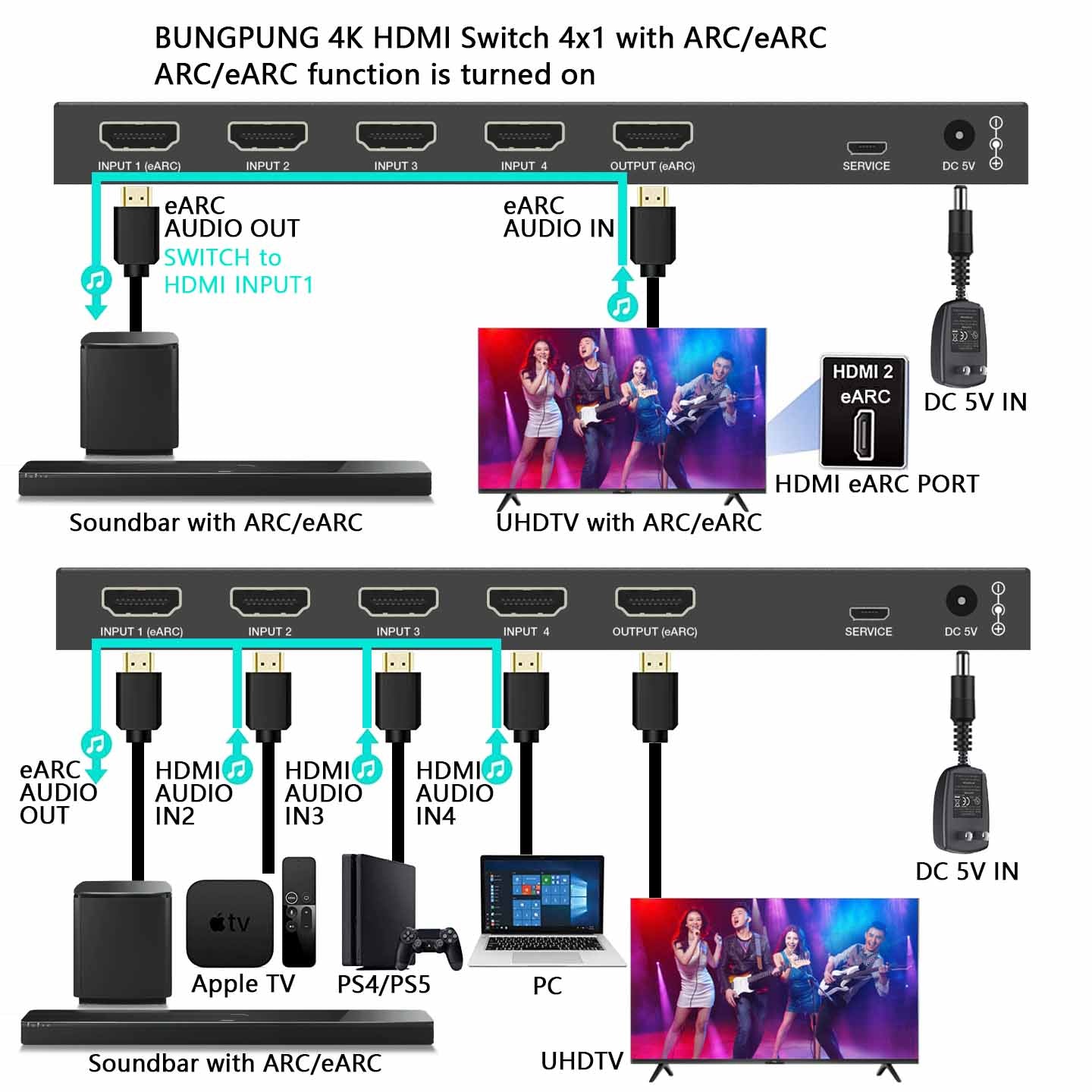

When the ARC/eARC function is turned on, select the input port 1 as the HDMI input source, then connect the “INPUT 1(eARC)” port to a Soundbar (eARC compatible), and connect the “OUTPUT(eARC)” port to a TV (eARC compatible), the eARC audio signal will be transmitted from TV to Soundbar. (For example, when user watches TV APP, the Switcher will pass-through TV eARC/ARC audio to the Soundbar.)
When the ARC/eARC function is turned on, select the input port 2/3/4 as the HDMI input source. then connect the “INPUT 1(eARC)” port to a Soundbar (eARC compatible), the HDMI audio from “INPUTS 2/3/4” port will be extracted and converted to eARC audio, then it will be played on the Soundbar. Since it compliant with audio formats such as LPCM, Dolby True HD and DTS-HD Master Audio, this switch is a perfect solution for connecting SONOS ARC/BOSE 500/700/900 Soundbars and other eARC/ARC audio/video receivers.

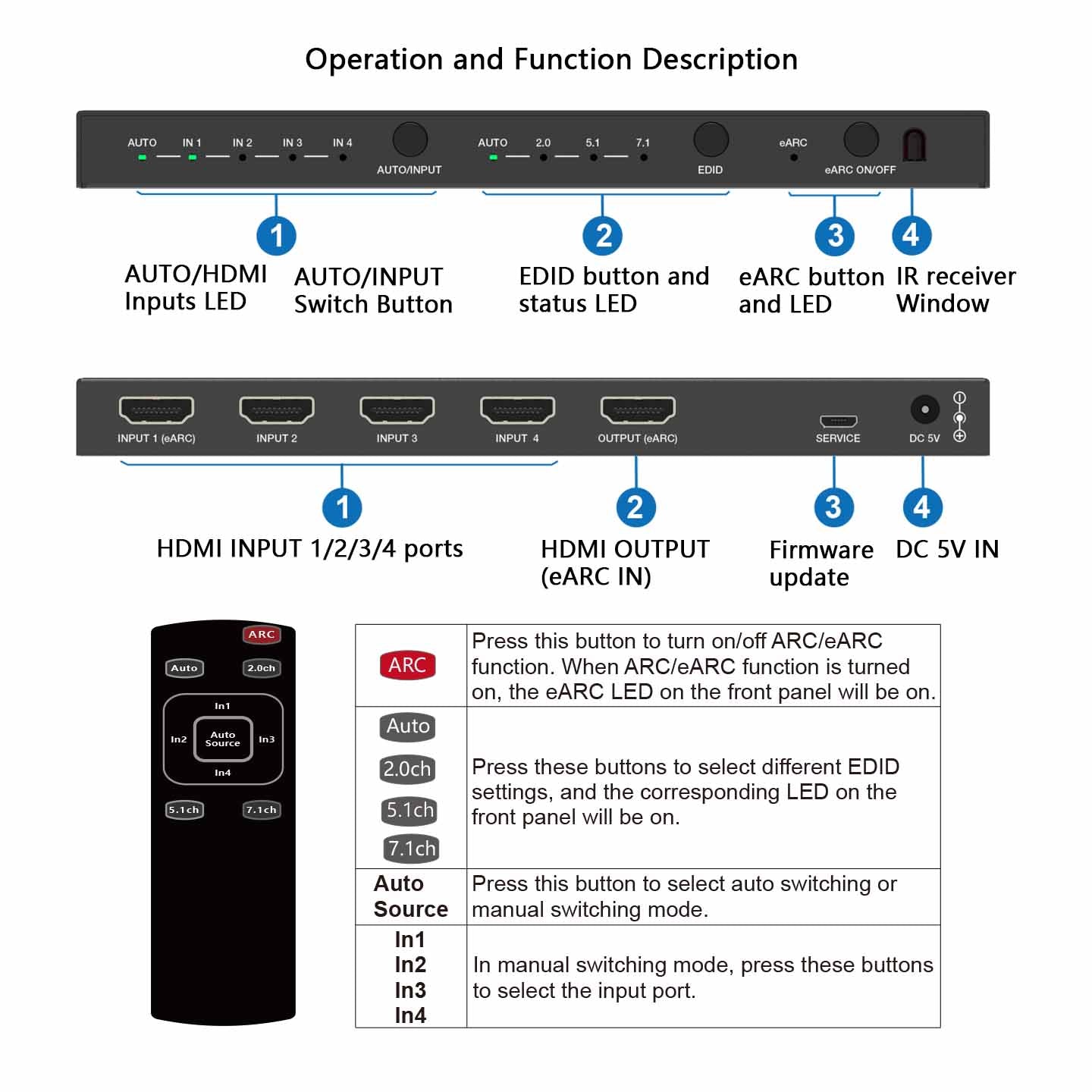

This HDMI switch provides efficient, simple switching options for the user, via an included IR remote and push buttons on the main unit. The switch can also identify the active HDMI source device and automatically switch to this option, providing a useful solution for when the unit is required to be out of sight.
Features
- 4K@60Hz HDMI Switch 4 in 1 out: it switches between 4 HDMI source devices when connected to a single display, you can choose the HDMI signal source by the IR remote control and panel button, easy to access. 18 Gbps HDMI 2.0 HDCP 2.2 HDR CEC ARC compliant.
- HDMI eARC Audio Converter Transmitter：When the ARC/eARC function is turned on, select the input port 1 as the HDMI input source，the eARC audio signal can be transmitted from TV to Soundbar. select the input port 2/3/4 as the HDMI input source, the HDMI audio from “INPUTS 2/3/4” port will be extracted and converted to eARC audio, then it will be played on the Soundbar.
- Full compatible: This HDMI switch is compatible with gaming consoles such as PlayStation, Xbox one, Nintendo, Roku, DVD, blue ray, players fire TV, cable TV, Chromecast and other HDMI devices.
- Compact size for easy plug & play installation. Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation
- 1-year warranty for product defects.
Download User Manual
Specifications
|
Technical |
|
|
HDMI Compliance |
HDMI 2.0 |
|
HDCP Compliance |
HDCP 2.2/1.x |
|
Video Bandwidth |
18Gbps |
|
Video Resolution |
4Kx2K@24/30Hz, 4K2K@60Hz |
|
Color Depth |
8-bit, 10-bit, 12-bit (1080p@60Hz) |
|
Color Space |
RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4 |
|
HDMI Audio Formats |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, |
|
ESD Protection |
Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
|
Connection |
|
|
Input Ports |
4×HDMI Type A (19-pin female) |
|
Output Ports |
1×HDMI Type A (19-pin female） |
| Control | 1×SERVICE [Micro USB port] |
|
Mechanical |
|
|
Housing |
Plastic Enclosure |
|
Silkscreen Color |
Black |
|

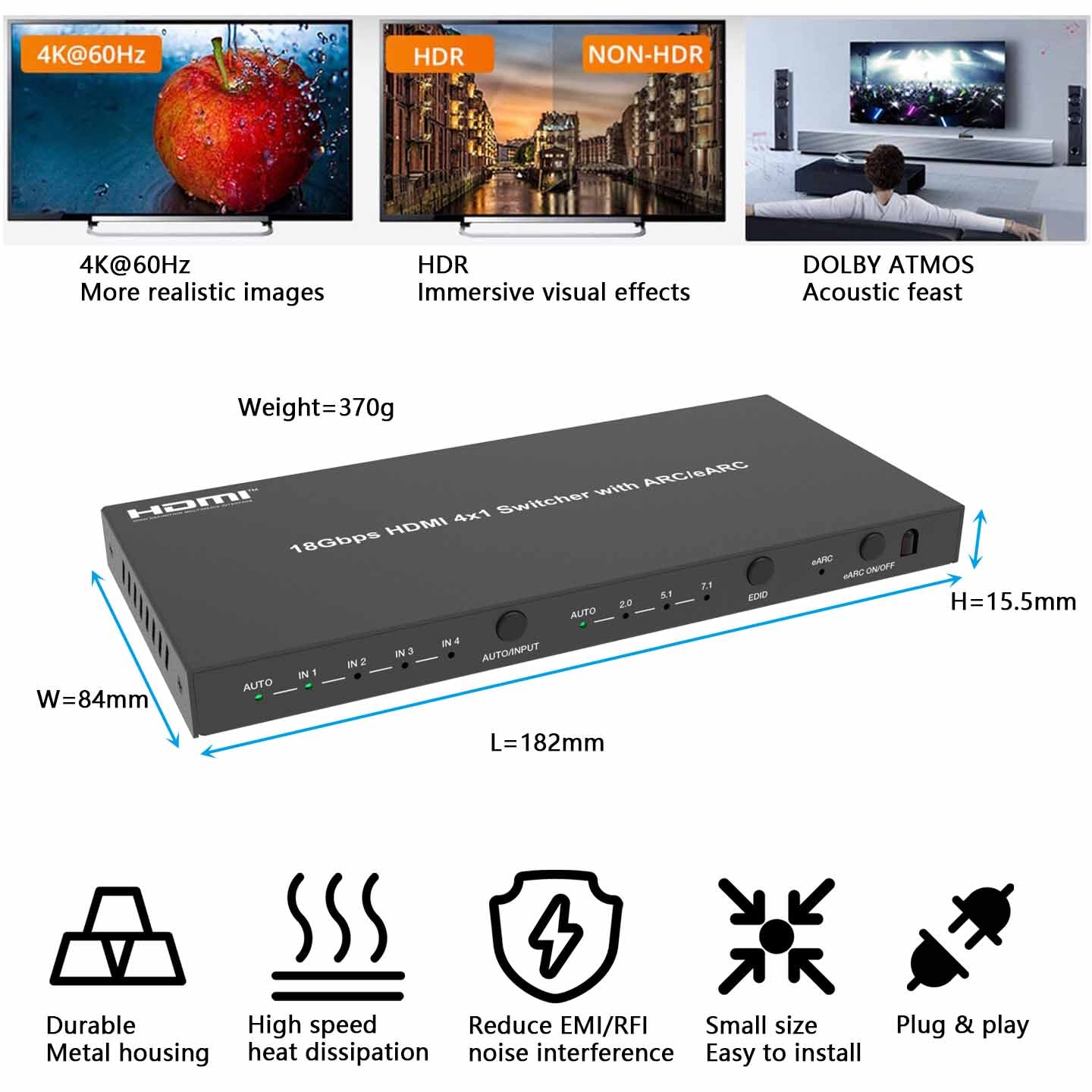

Dimensions |
182mm(W) × 84mm(D) × 15.5mm(H) |
|
Weight |
370g |
|
Power Supply |
Input: AC100~240V 50/60Hz Output: DC5V/1A (US/EU standards，CE/FCC/UL certified) |
|
Power Consumption |
2W |
|
Operation Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% RH (non-condensing) |
| Package Contents |
① 1 × 18Gbps HDMI 4x1 Switcher |
